Overview

3.3kw Full Sealed Onboard Charger was specially designed, by Summit Power Co., Ltd for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. This product has the advantages of not only only high efficiency, small size, high stability, long lifespan, but also high protection grade, and high reliability and complete protection function, etc. It’s definitely an ideal charging power supply for f electric vehicles. This charger has built-in heat-sensing device and can automatic recover through the thermal protection. Fully sealed potting process and up to IP66/67 protection level ensures no causing trouble in any complex environment.

Specification of full sealed onboard charger

Models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
SMHC3-4842A	AC90-264V	48V	66V	42A
SMHC3-6040A	AC90-264V	60V	82.5V	40A
SMHC3-7240A	AC90-264V	72V	99V	40A
SMHC3-8440A	AC90-264V	80V	110V	40A
SMHC3-9632A	AC90-264V	96V	132V	32A
SMHC3-12025A	AC90-264V	120V	165V	25A
SMHC3-14423A	AC90-264V	144V	198V	23A
SMHC3-31210A	AC90-264V	312V	440V	10A

Technical Parameters

AC Input Wide Voltage Range	AC90-264V
AC Input Frequency Range	40-70HZ
With APFC Function Power Factor	≥0.98
Soft Switching Technology Efficiency	≥93%
IP Grade	IP67
Operating Temperature	-40℃~-60℃
Storage Temperature	-55℃~-100℃
CAN Communication Function	Optional
12V3A Auxiliary Power Supply	Optional
LED Light Indicator for Charging Process	Standard
Noise	≤45dB
Overall Size	294x210x111mm
Net Weight	5.9kg

Protection function

Application

Apply to electric vehicles:sightseeing car,club car, golf cart, patrol car, electric cleaning equipment, sweeper, lawn mower;

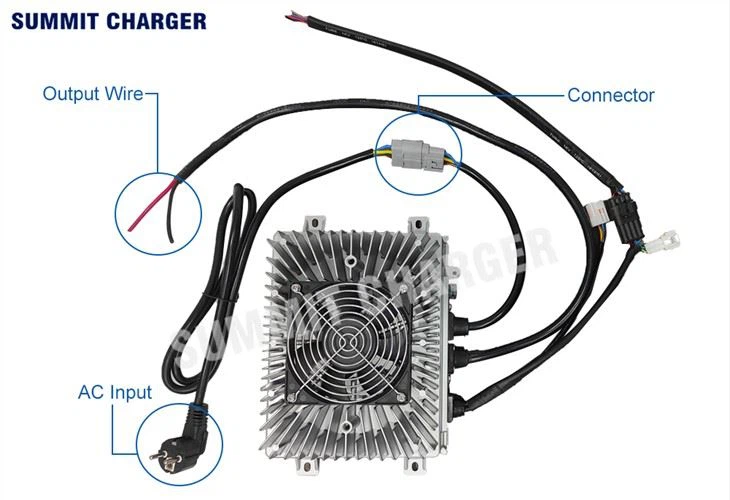

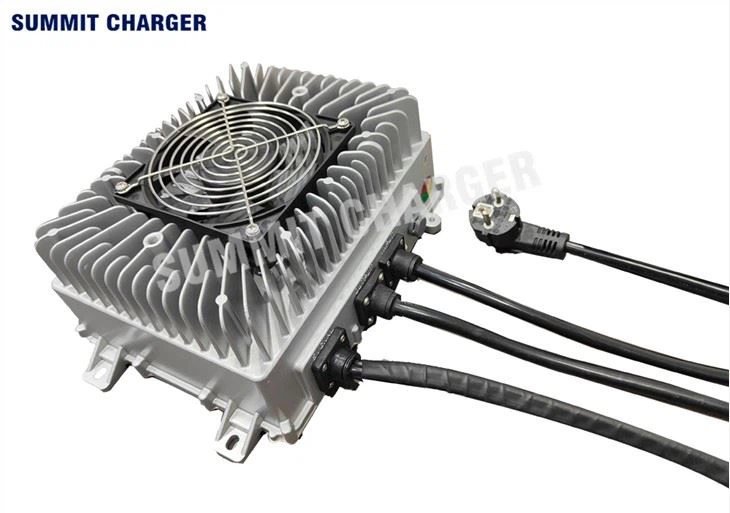

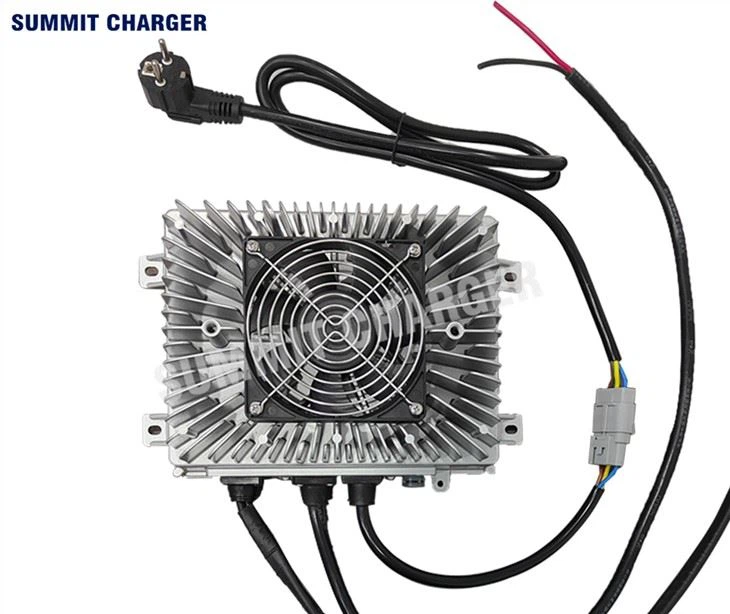

3.3kw onboard charger

About Summit Charger

Our Service

(1) Packing

1 charger 1 box, including product name, product part number, product brand, product type, production number and name of manufacturer; In packing box, along with the technical documents, it includes packing list, quality certificate, product specification.

(2) Transport

Suitable for cars, boats, aircraft, transportation. The products have to be prevented against sunshine and moisture and in a civilized transportation.

(3) Storage

Product should be stored in the packing box when it is not used and be maintained in a 5 ℃ to 40 ℃ clean, dry and well-ventilated environment. It should not be stored together with chemicals, acid and alkali substances etc,. Should avoid storing in the sun, fire, water and avoid storing with corrosive substances. The storage period is 2 years (from the inventory date of the factory). After the 24 months of storage period, the products should still comply with the provisions of the relevant standards.
