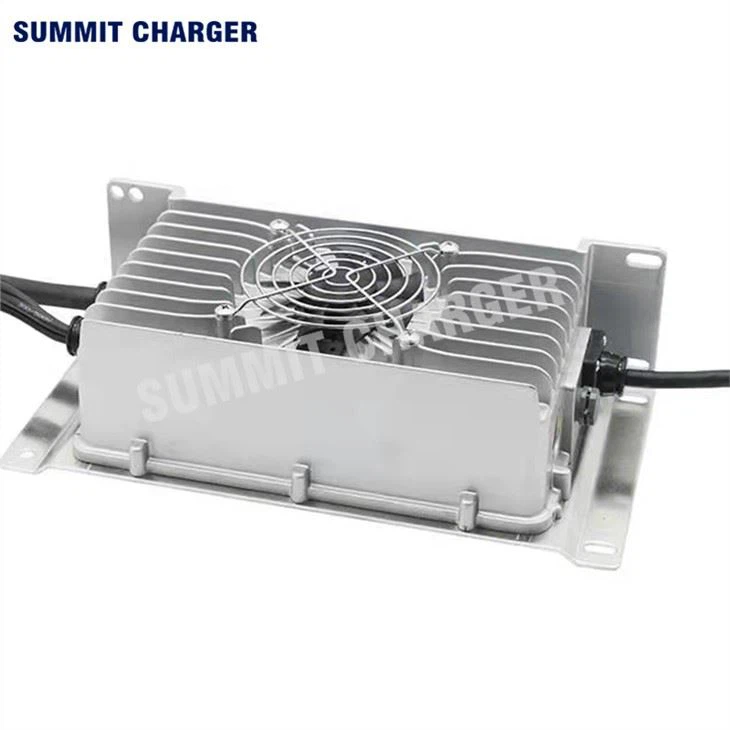

72v Battery Charger
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x146x82cm,
✱Net weight:2.7kg(5.9lb),
Send Inquiry
Product Details of72v Battery Charger
Overview of 72v battery charger
If your batteries have a built in battery protection system that allows them to be charged with a standard charger.In some condition if your battery charger does not reach 72v-84v during charging it may not fully top off the battries.In this situation we would recommend you purchase a SUMMIT 72v Battery Charger specifically designed to charge your battries
The 72v battery charger from our website is an excellent product designed to meet all your needs. Whether you need a device for everyday use or one large enough power up larger devices, we've got it covered! This high-quality electronics provides plenty of juice without delay so buy now before its gone.
Specifications of 72v battery charger
Specifications | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ1-1230A | AC180~264V | 12V | 16.5V | 30A |
SMCZ1-2430A/2430C | AC90~264V | 24V | 33V | 30A |
SMCZ1-3625A/3625C | AC90~264V | 36V | 49.5V | 25A |
SMCZ1-4825A/4820C | AC90~264V | 48V | 66V | 25A |
SMCZ1-6020A/6015C | AC180~264V | 60V | 82.2V | 20A |
SMCZ1-7218A/7215C | AC180~264V | 72V | 99V | 18A |
SMCZ1-8015A | AC180~264V | 80V | 110V | 15A |
SMCZ1-9610A | AC180~264V | 96V | 132V | 10A |
SMCZ1-10210A | AC180~264V | 102V | 140V | 10A |
Technical Characteristics of 72v battery charger
Item | Parameters |
Ac Input Wide Voltage Range | AC90v-264v |
AC Input Frequency Range | 40-70HZ |
With APFC Function,Power Factor | ≥0.98 |
Soft Switching Technology,Efficiency | ≥93% |
Protection Level | IP67 |
Operating Temperature | -40℃~ +60℃ |
Storage Temperature | -55℃~ +100℃ |
CAN Communication | Optional |
12v3a Auxiliary Power Supply | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Overall Size | 282x146x82(mm) |
Net Weight | 2.7kg |
Product features
|
Charging Curve of battery charger
 |

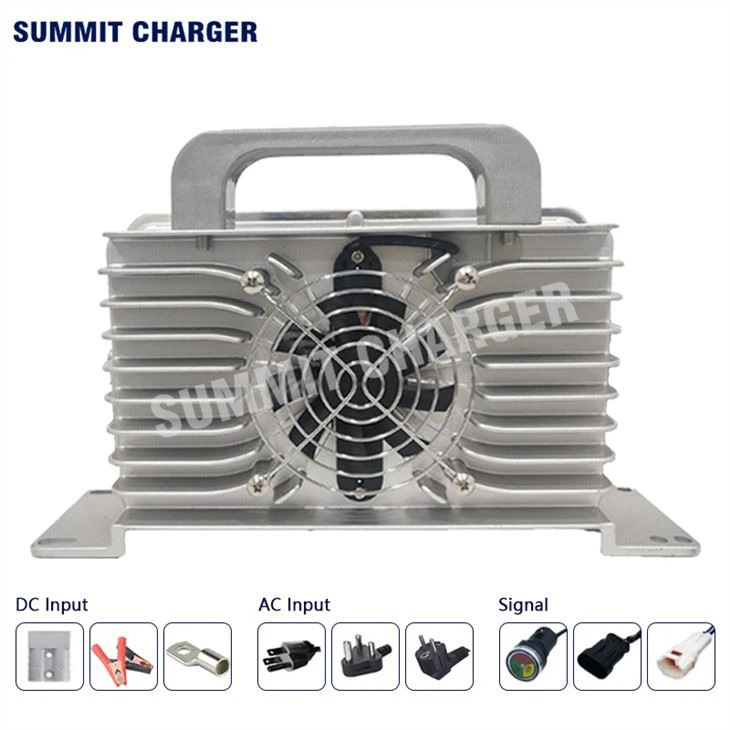

Input output plug optional
 |
Applications of 72v battery charger
20s lithium ion /23s lifepo4 batteries/NCM,Lead acid batteries.
 |
Quanlity Control
We have QC person stay on the production lines do to the inspection.All products must have been inspected before delivery.we do inline inspection and final inspection.
1.All raw material checked once it arrive our factory.
2.All pieces and logo and all details checked during production.
3.All packing details checked during production.
4.All production quality and packing checked on final inspection after finished.
About Summit Charger
| Factory and warhouse |
|
| Summit exhibition |
 |
More models
 |
Technical Parameters
Item | Parameters |
AC Input Wide Voltage Range | AC90-264V |
AC Input Frequency Range | 40-70HZ |
With APFC Function Power Factor | ≥98% |
Soft Switching Technology Efficiency | ≥93% |
Protection Level | IP67 |
Operating Temperature | -40℃-+60℃ |
Storage Temperature | -55℃-+100℃ |
CAN Communication Function | Optional |
12V3A Auxiliary Power Supply | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Overall Size | 282x146x82mm |
Net Weight | 2.7kg |
