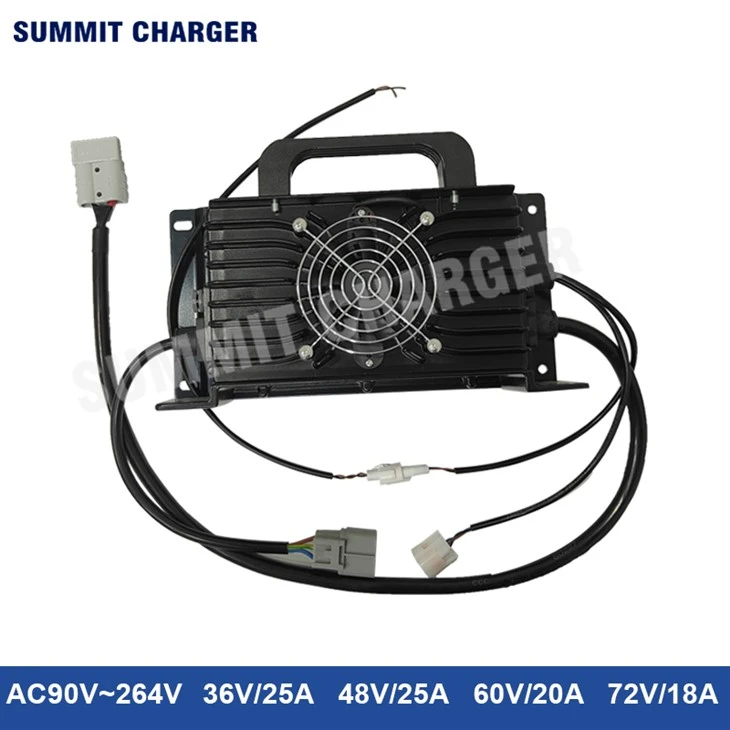

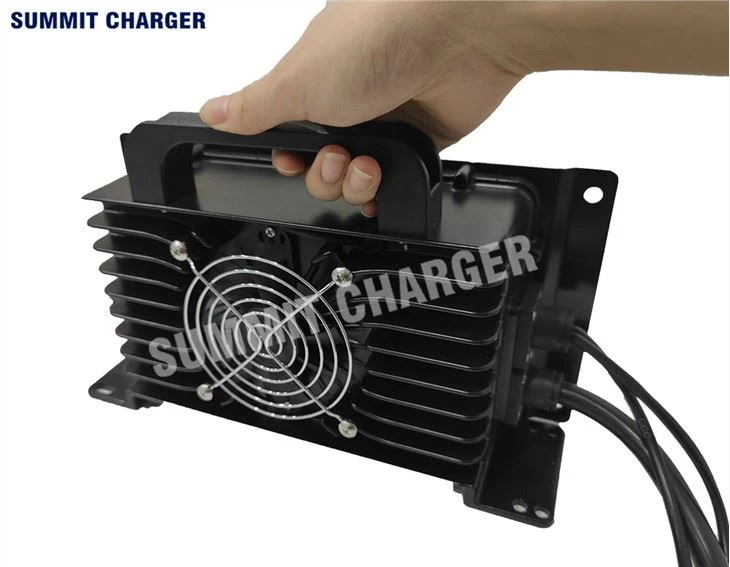

48 Volt Golf Cart Charger
Overview of 48 volt golf cart charger
There is a growing demand for 48 volt golf cart charger variable frequency chargers among golf course owners and managers. This new technology offers many benefits including the ability to significantly reduce charging time, increase battery life, and improve overall efficiency. The automatic detection programmed regulation charging and discharging innovative process ensures that your batteries are always charged at the appropriate voltage without overcharging them. The result is increased battery life as well as improved performance from your equipment. For more information about this innovative product line contact us today!
Specifications of 48 volt golf cart charger
| Models & Specs | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMCZ1-1230A | AC180-264V | 12V | 16.5V | 30A |
| SMCZ1-2430A/2430C | AC90-264V | 24V | 33V | 30A |
| SMCZ1-3625A/3625C | AC90-264V | 36V | 49.5V | 25A |
| SMCZ1-4825A/4820C | AC90-264V | 48V | 66V | 25A |
| SMCZ1-6020A/6015C | AC90-264V | 60V | 82.2V | 20A |
| SMCZ1-7218A/7215C | AC90-264V | 72V | 99V | 18A |
| SMCZ1-8015A | AC180-264V | 80V | 110V | 15A |
| SMCZ1-9610A | AC180-264V | 96V | 132V | 10A |
| SMCZ1-10210A | AC180-264V | 102V | 140V | 10A |
Protections Functions of 48 volt golf cart charger
| Overheat Protection | When the internal temperature of the charger exceeds 80℃,the charging current will reduce automatically.When it exceeds 85℃,the charger shutdown for protection.When the temperature drop,the charger automatically resumes to charge. |
| Short Circuit Protection | When the output short circuit,the charger will automatically shutdown the output.After troubleshooting,the battery can be reconnected to resume charging. |
| Battery Reverse Connection Protection | When the battery is reverse connected ,the internal circiut of the charger will automatically disconnect from the battery ,without charging ,without damaging the charger |
| Input low-voltage & Over-voltage Protection | If the input voltage is lower than 150V or higher than 264V,the charger will shutdown protectively and automatically resume working with the voltage is nomal again. |
| Full Automatic Shutdown | Automatically shutdown after full charge. |
Summit Charger Advantages

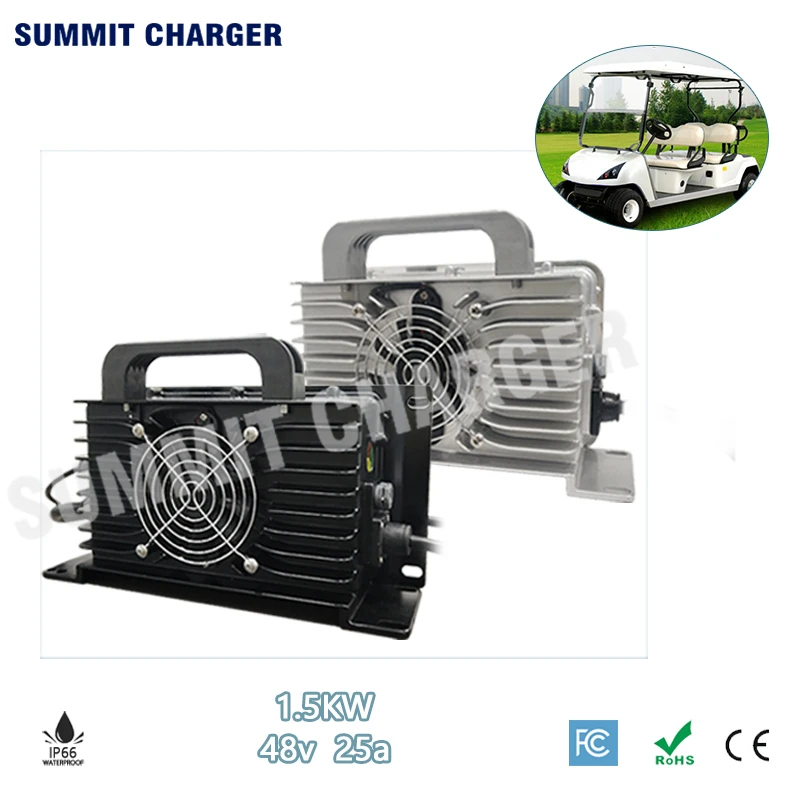

Application of 48 volt golf cart charger
