Lithium Battery Charger Overview

1. The charging process of lithium batteries is completely different from that of nickel-cadmium batteries and nickel-metal hydride batteries. Therefore, lithium batteries cannot be charged by ordinary nickel-cadmium and nickel-metal hydride battery chargers. The performance of general-purpose chargers (which can charge both cadmium-nickel, nickel-metal hydride batteries, and lithium-ion batteries) is not as good as that of lithium-ion battery-specific chargers. Even if it is a lithium-ion battery charger, it is necessary to distinguish whether it is charging 4.1V or 4.2V.

2. The charging rate (charging current) of the lithium battery should be selected in strict accordance with the recommendations of the battery manufacturer. If the charging current is too large or unstable, the temperature of the lithium battery will be too high, which will not only damage the lithium battery, but also may cause an explosion. This series of chargers have a current limiting protection function to prevent damage to the battery or explosion due to overcurrent charging. accident. The charging rate is 0.25C-1C. Or artificially adjusted.

3. Charging protection and repair function, the Summit Charger can rescue and repair the over-discharged lithium battery, and perform pretreatment before charging.

4. The newly designed lithium battery charger sets various parameters intelligently and scientifically according to the communication protocol.

Specifications of 12V Marine Charger

Specifications

Specifications	Input Voltage Range(v)	Rated Output Voltage(v)	Max Output Voltage(v)	Max Output Current(a)
SMCZ2-1230A/1230C	AC90-264V	12V(12V Marine Charger)	20V	*30A*
SMCZ2-2445A/2440C	AC90-264V	24V	33V	45A
SMCZ2-3640A/3640C	AC90-264V	36V	49.5V	40A
SMCZ2-4835A/4825C	AC90-264V	48V	66V	35A
SMCZ2-6030A/6020C	AC90-264V	60V	82.2V	30A
SMCZ2-7225A/7218C	AC90-264V	72V	99V	25A
SMCZ2-8022A	AC180-264V	80V	110V	22A
SMCZ2-9610A/9610C	AC90-264V	96V	132V	10A

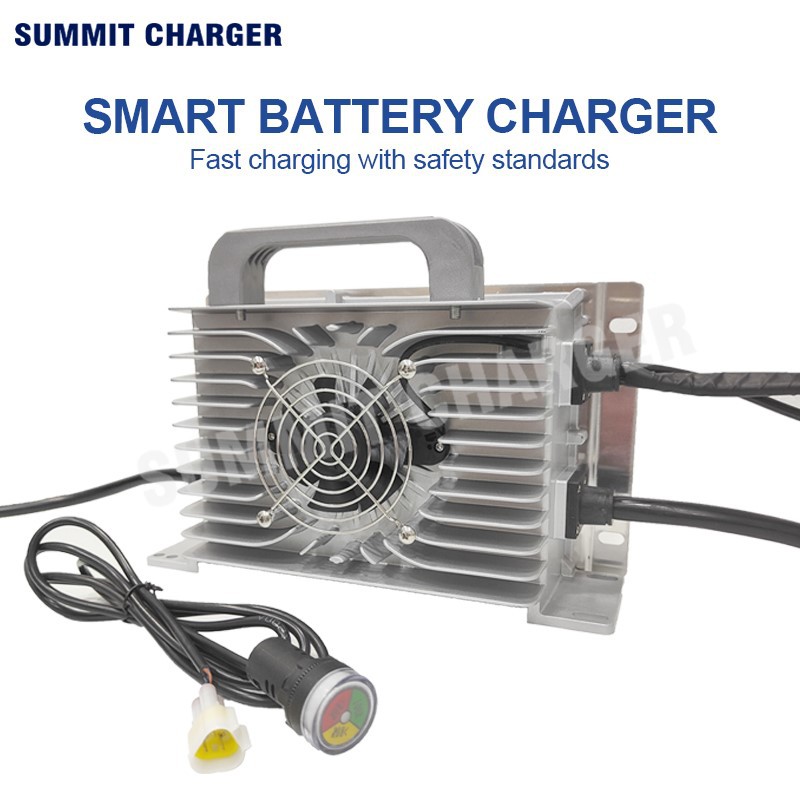

12v marine charger

Technical Parameters

Items	Parameters
Ac Input Wide Voltage Range	AC90-264V
Ac Input Frequency Range	40-70Hz
With PFC Function Power Factor	≥0.98
Soft Swithching Techniology Efficiency	≥93%

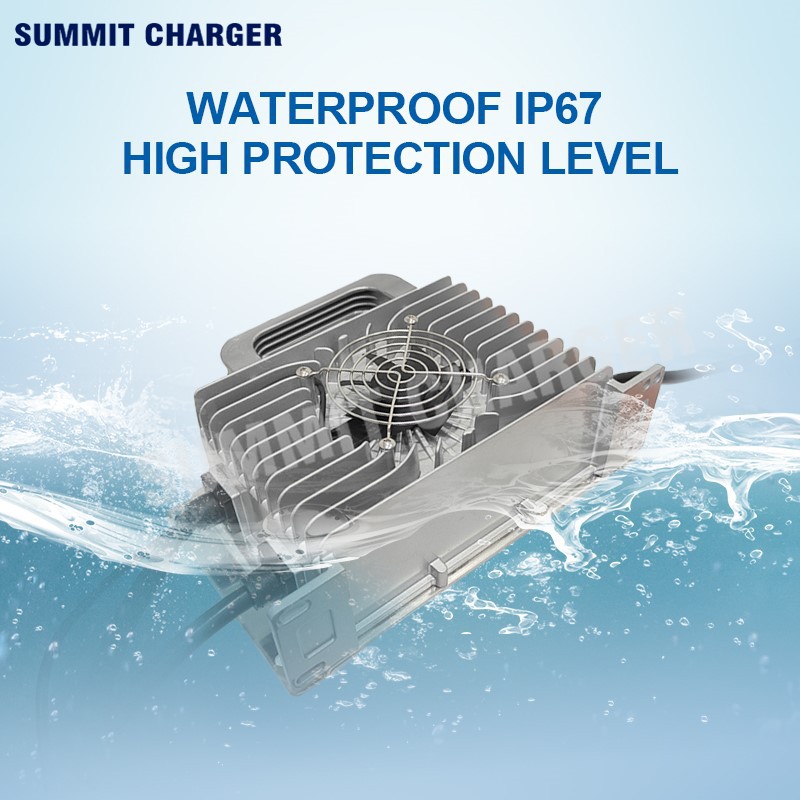

Protection Level	IP67
Opearating Temperature	-40 ℃ ~+ 60 ℃
Storage Temperature	-55 ℃ ~+ 100 ℃
CAN Communication Function	Optional
12v3a Auxiliary Power Supply	Optional
LED Light Indicator for Charging	Standard
Noise	≤45dB
Overall Size	282x168x90mm
Net Weight	3.8kg

Protection Functions for 12v Marine Chargers

Protection Functions

Overheat Protection

When The Internal Temperature of the Charger Exceeds 80℃,the Charging Current Will Reduce Automatically.

When it Exceeds 85℃,the Charger Shutdown for Protection.

When the Temperature Drop,the Charger Automatically Resumes to Charge.

Short Circuit Protection

When the Output Short Circuit,the Charger Will Automatically Shutdown the Output.

After Troubles Shooting,the Battery Can be Reconnected to Resume Charging.

Battery Reverse Connection Protection

When the Battery is Reverse Connected,the Internal Circuit of the Charger Will Automatically Disconnect From the Battery,Without Charging,Without Damaging the Charger

Input Low-Voltage&Over-Voltage Protection

If the Input Voltage is Lower Than 90V or Higher Than 264V,the Charger Will Shutdown Protectively and Automatically Resume Working with the Voltage is Normal Again.

Full Automatic Shutdown:Automatically Shut Down After Full Charge.
