Product Introduction
We serve our customers , continuously providing them with cost-effective 96v Onboard Car Charger, Electric RickshawsTricycle Charger, 72v Tricycle Onboard Charger. We have a perfect quality management, manufacturing and sales service system. We contribute to the persistence of sustainable development and contribute to the development of China's cause. The company has strong technological innovation and sustainable development capabilities, and has contributed a lot to the development of the industry.
Overview of onboard charger

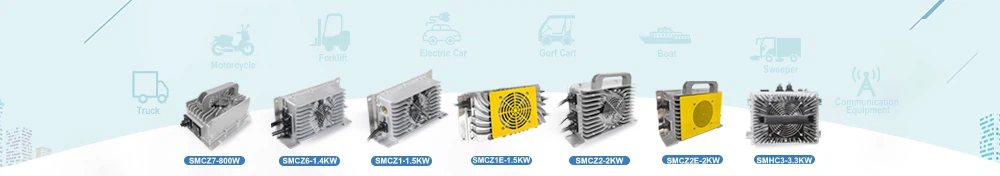

Summit Charger is a professional charger manufacturer since 2009,we produce 2000pcs chargers per day,we have many different chargers,there are SMCZ7-800W,SMCZ6-1.4KW,SMCZ1-1.5KW,SMCZ2-2KW,SMHC3-3.3KW
3.3kW onboard chargers are primarily used for hybrid or pure electric cars, buses and logistics vehicles. However, they are suitable for other types of onboard batteries. They have a rated grid voltage range of 100-264VAC and a DC output specially designed for various battery packs. These chargers are highly reliable and have high conversion efficiency.

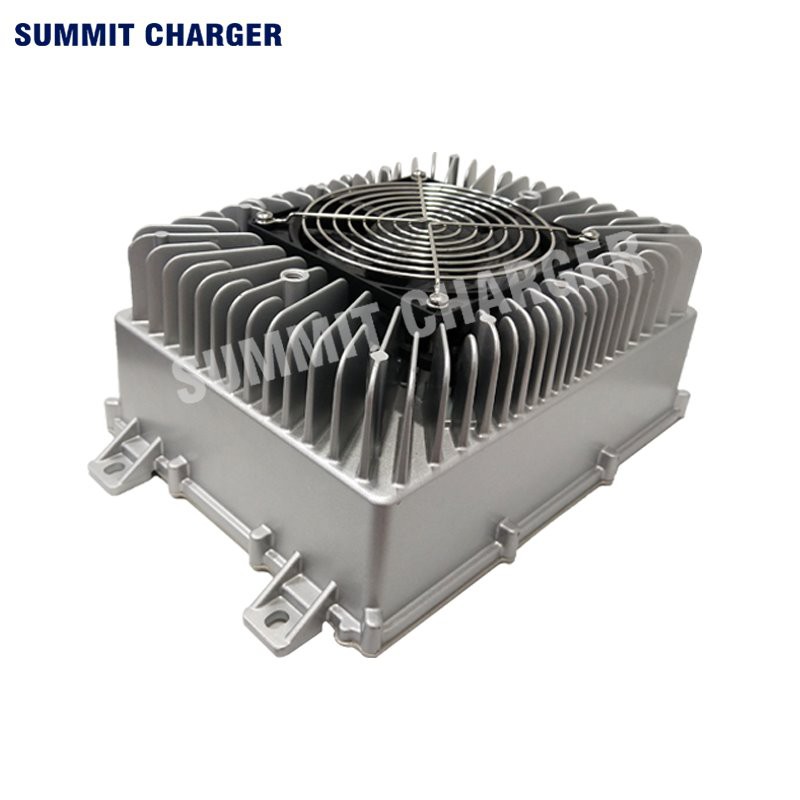

The Summit Charger 3.3kW onboard charger is a high-frequency 3.3kW onboard charger. It is designed with efficiency, safety and robustness in mind. This charger features an integrated CAN-bus interface for communicating with a vehicle's control unit. The charger is a convenient option for recharging batteries in electric vehicles.
The full name of OBC is On-Board Charger, which is called on-board charger in Chinese. It is the standard configuration of basically all electric passenger cars and plug-in hybrid passenger cars.
The on-board charger refers to the charger that is fixedly installed on the electric vehicle. It has the ability to fully charge the power battery of the electric vehicle safely and automatically. The charger is based on the data provided by the battery management system (BMS).
It can dynamically adjust the charging current or voltage parameters, perform corresponding actions, and complete the charging process.
Specification of onboard charger
Specifications &Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMHC3-4842A | AC90~264V | 48V | 66V | 42A |
SMHC3-6040A | AC90~264V | 60V | 82.5V | 40A |
SMHC3-7240A | AC90~264V | 72V | 99V | 40A |
SMHC3-8440A | AC90~264V | 84V | 116V | 40A |
SMHC3-9632A | AC90~264V | 96V | 132V | 32A |
SMHC3-12025A | AC90~264V | 120V | 165V | 25A |
SMHC3-14423A | AC180~264V | 144V | 198V | 23A |
SMHC3-31210A | AC90~264V | 312V | 440V | 10A |
Technical Parameters of onboard charger
Item | Parameters |
Ac Input Wide Voltage Range | AC90v-264v |
AC Input Frequency Range | 40-70HZ |
With APFC Function,Power Factor | ≥0.98 |
Soft Switching Technology,Efficiency | ≥93% |
Protection Level | IP67 |
Operating Temperature | -40℃~ +60℃ |
Storage Temperature | -55℃~ +100℃ |
CAN Communication | Optional |
12v3a Auxiliary Power Supply | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Overall Size | 294x210x111(mm) |
Net Weight | 5.9kg |
Certifications
 |  |  |
Products Features
 |
Application of 3.3kw onboard charger
Why you will choose Summit Charger?
Summit Power Co.,Ltd is a professional manufacturer engaged in research and development, production and sales of lead-acid batteries and lithium battery chargers .From the design and application of chargers to providing products and follow-up tracking service,summit has always been assiduous in pursuit, fulfill their duties, and do their best to serve customers!
We aim to meet the needs of customers and to promote the healthy development of battery charging industry as the goal of work!
|
|
FAQ
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in Lithium lead acid battery chargers.We trade directly with customers through our own brand and also provide products for export to trading companies.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: When can I get the price?
A: Usually we quote within 1 hours after we get your inquiry.
Q: Which certificate do you have?
A: CE,EMC,LVD,RCM,IATF16949,KC.
