58.4V3.5A LiFePO4 Battery Charger for Electric Vehicle
Product Introduction
With strict technical requirements, rigorous design thinking, bold innovative ideas, high standard processing requirements and international factory standards, we create our own 72v Rickshaws Onboard Charger, 72v Go Kart Battery Charger, 72v On Board Sweeper Charger. To be honest, set a good example for employees, win the trust and respect of employees and customers. Our corporate culture is to maintain the original intention and be grateful. Our company takes integrity, quality, simplicity and details as the brand concept, keeps improving in products and intensive cultivation in the market. The company is willing to join hands with new and old customers, society and all employees to create brilliant!
Overview of 96v battery charger

Specifications of 96v battery charger
| Specfications&Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMHC3-4842A | AC90-264V | 48V | 66V | 42A |
| SMHC3-6040A | AC90-264V | 60V | 82.5V | 40A |
| SMHC3-7240A | AC90-264V | 72V | 99V | 40A |
| SMHC3-8440A | AC90-264V | 84V | 116V | 40A |
| SMHC3-9632A | AC90-264V | 90V | 132V | 32A |
| SMHC3-12025A | AC90-264V | 120V | 165V | 25A |
| SMHC3-14423A | AC90-264V | 144V | 198V | 23A |
| SMHC3-31210A | AC90-264V | 312V | 440V | 10A |
Input & Output Plugs Optional

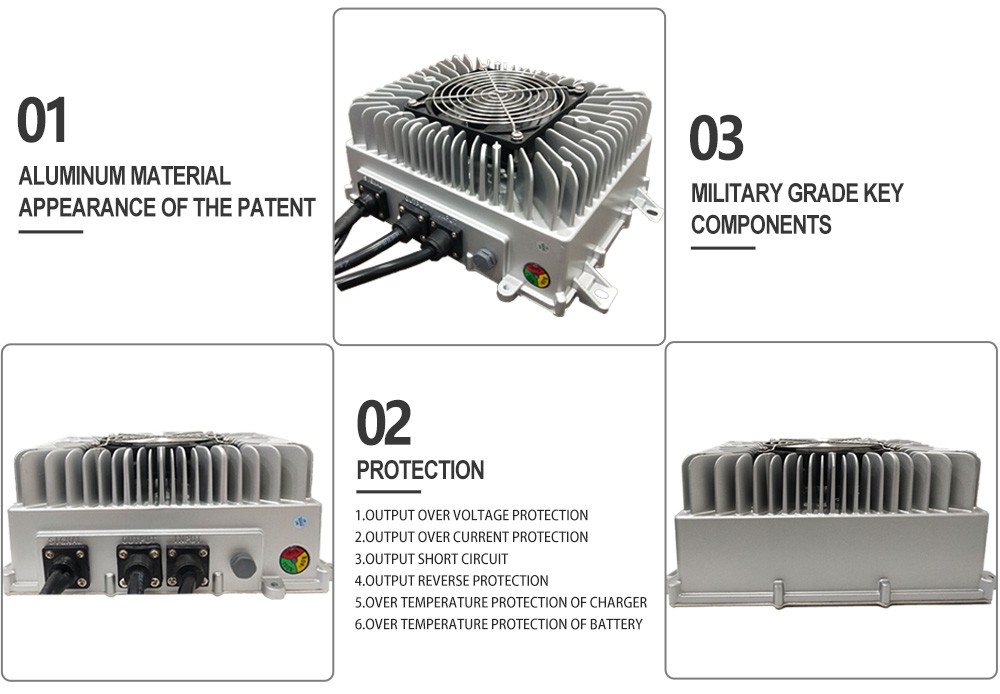

Protection function of 96v battery charger
| Overheat Protection | When the internal temparature of the charger exceeds 80℃,the charging current will reduce automatically;when it exceeds 85℃,the charger shutdown for orotection;when the temperature drop ,the charger automaticallt resumes to charge |
| Short Circuit Protection | When the output short circuit,the charger will aotomatically shut down the output,After troubleshooting,the battery can be reconnected to resume charging |
| Battery Reverse Connection Protection | When the battery is reverse connected ,the internal circuit of the charger will automatically disconnect from the battery ,without charging ,without damaging the charger. |
| Low-voltage&Over-voltage Protection | If the input voltage is lower than 90v or higher than 264v,the charger will shut down protectively and automatically resume working with the voltage is normal again; |
| Full Automatic Shutdown | Automatically shut down after full charge |
| Output Over-current Protection | Stop output when exceeds +1% of the maximum output current |
| CAN Communication Protection | Automatically stop the output when CAN communication fails |
Application of 96v battery charger
Summit Charger variable frequency pulse charger series can be used for lead-acid batteries ,lithium batteries,
Ni-mh battery, Ni-cad battery and other energy storage battery charging.
Apply to electric vehicles:sightseeing car,club car, golf cart, patrol car, electric cleaning equipment, sweeper, lawn mower;
Material handling equipment: forklift,lift truck, pallet truck, stacking truck,lift;
Electric boats,ATV,Kart,Vans,cars and buses;
Special categories: Power sector, Marine, aerospace, military, etc
More models
OuServing you and satisfying you are our unswerving work goals. Trust us, believe in your choice, we will do better for you.r company continuously innovates the product technology, improves the production process, strictly controls the quality, and continues to provide users with the most high-end products in the field of 58.4V3.5A LiFePO4 Battery Charger for Electric Vehicle. Within our initiatives, we already have many shops in China and our solutions have won praise from prospects around the globe. We always adhere to the 'integrity, development, heart, win-win' concept, hope to make friends with domestic and foreign customers, to provide you with good products, technology and services.
Hot Tags: 96v battery charger, China, suppliers, manufacturers, factory, wholesale, in stock, club car battery charger factory, 2kw fully sealed charger, yamaha 48 volt golf cart charger factory, China 72v lead acid battery charger suppliers, Wholesale motorbike battery charger, China vehicle battery chargers suppliers
