China Slow EV Charging Station 22kw Electronic Car Electric Charger
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC48V/60V/72V/96V/120V/144V/170V/312V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:294X210X111cm,
✱Net weight:6kg(13lb),
Send Inquiry
Product Details of China Slow EV Charging Station 22kw Electronic Car Electric Charger
Product Introduction
As a manufacturer and service provider in the China two wheeler battery charger, China ezgo battery charger 48 volt factory, ev car charger factory industry, we will continue to work hard to provide the market with first-class technology and services. We believe that only strivers can keep a company alive in the midst of fierce competition. With high quality, reasonable price, on-time delivery and customized & personalized services to help customers achieve their goals successfully, our company has got praise in both domestic and foreign markets. Our company has now developed into a diversified enterprise, and a broader stage is waiting for us. Relying on the advantages of the technology center, the company has established a complete technological innovation system and has a high-quality R&D team.
Overview of 144v LiFePO4 Charger
144v lifepo4 charger constant-current and constant-voltage charger is isolated by the voltage drop of the transformer, and has advanced automatic control circuit. It is a high-tech charger product with novel appearance and advanced functions. The battery is initially charged with constant current charging, and is charged when the battery is about to be fully charged. The machine automatically switches to constant voltage charging mode until it is fully charged. The charger has a high degree of automation and integrates automatic detection, constant current, constant voltage, and automatic shutdown technology into the entire charging process. The charging method is scientific and reasonable, and has the advantages of high charging efficiency, energy saving, and prolonging the service life of the battery.
Specifications of 144v LiFePO4 Charger
| Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMHC3-4842A | AC90-264V | 48V | 66V | 42A |
| SMHC3-6040A | AC90-264V | 60V | 82.5V | 40A |
| SMHC3-7240A | AC90-264V | 72V | 99V | 40A |
| SMHC3-8440A | AC90-264V | 80V | 110V | 40A |
| SMHC3-9632A | AC90-264V | 96V | 132V | 32A |
| SMHC3-12025A | AC90-264V | 120V | 165V | 25A |
| SMHC3-14423A | AC90-264V | 144V | 198V | 23A |
| SMHC3-31210A | AC90-264V | 312V | 440V | 10A |

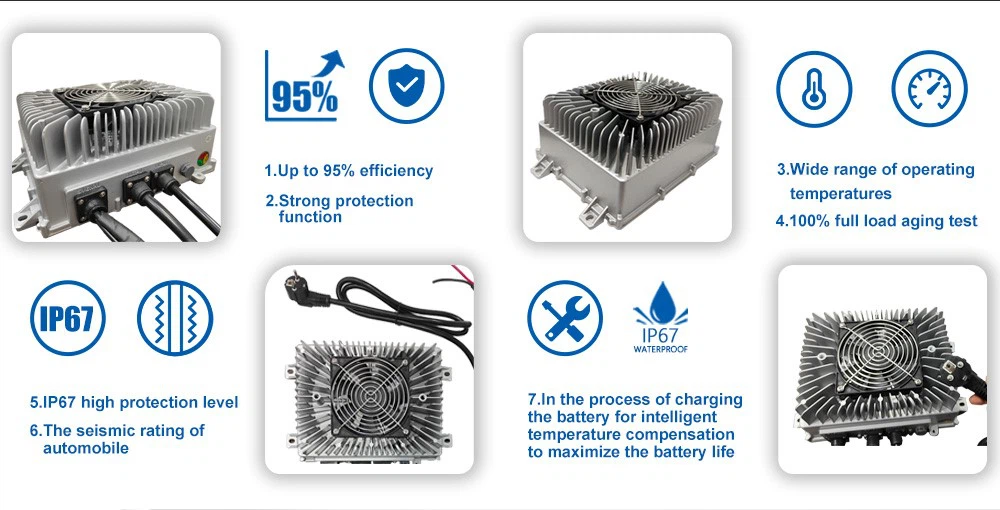

Technical Parameters
| AC Input Wide Voltage Range | AC90-264V |
| AC Input Frequency Range | 40-70HZ |
| With APFC Function Power Factor | ≥0.98 |
| Soft Switching Technology Efficiency | ≥93% |
| IP Grade | IP67 |
| Operating Temperature | -40℃~-60℃ |
| Storage Temperature | -55℃~-100℃ |
| CAN Communication Function | Optional |
| 12V3A Auxiliary Power Supply | Optional |
| LED Light Indicator for Charging Process | Standard |
| Noise | ≤45dB |
| Overall Size | 294x210x111mm |
| Net Weight | 5.9kg |
