High Quality 15kw 24V 48V 80V 120V Forklift Battery Charger
Product Introduction
We are committed to creating reliable products and improving service quality for customers, and strive to become a leading manufacturer for ATV Go Kart Charger, Surfboard Boat Charger, Electric RickshawsTricycle Charger in the industry. Our commitment to sustainability is one of the main drivers of our ongoing search for new technologies. Our company continues to expand its business scope, reduce costs and reduce service response time. Our development is becoming more and more strength, scale, consistent strength, direction and goal. Our business philosophy is the basic belief and code of conduct in the pursuit of business success.
Overview of 24V LiFePO4 Charger

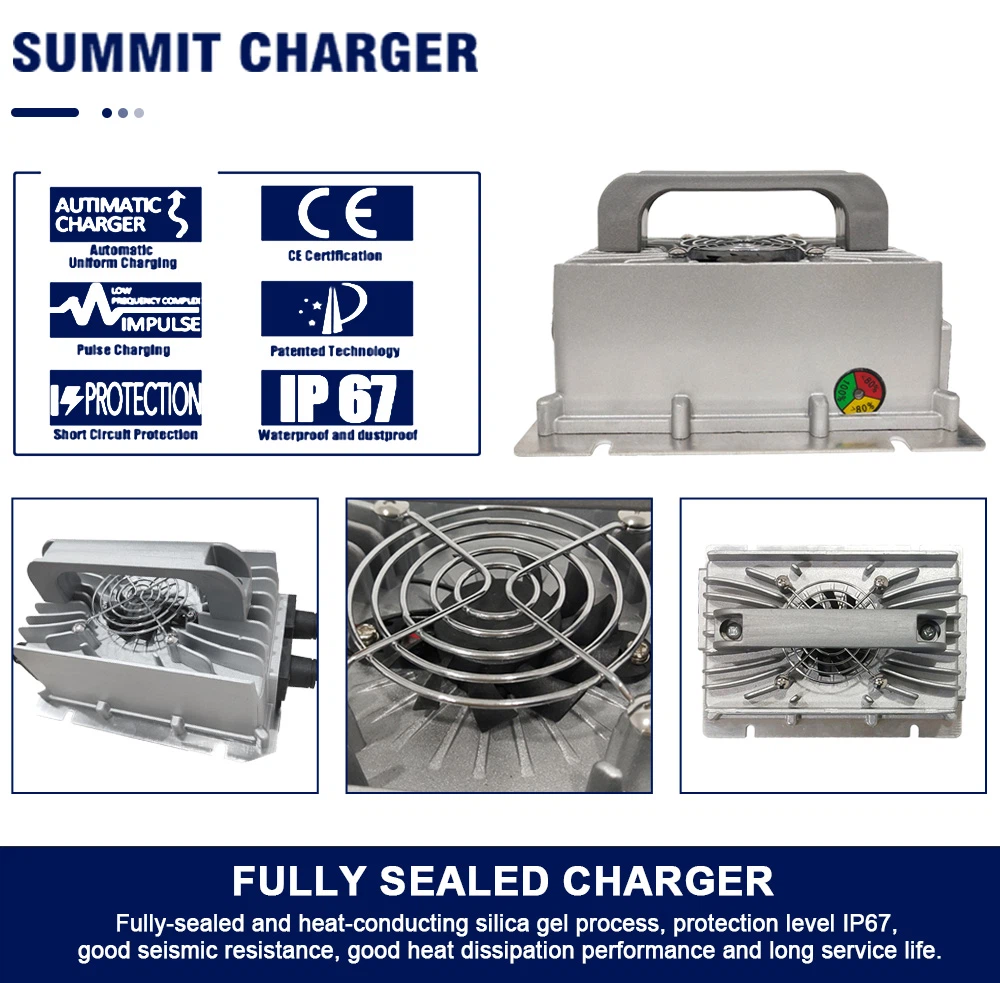

This 24v lifepo4 charger has aluminum alloy shell, fireproof wire, input three-wire grounding safety protection, and all products are made of three-proof paint. We are factory direct sales. Accepting the full range of customized services from 800W-3.3KW chargers and creating zero-return products is our constant pursuit.
Product function: automatic shutdown when full, short circuit protection, over voltage protection, over current protection, over temperature protection, reverse connection protection.
Temperature dynamic compensation for zero voltage start of lithium battery.
Indicator light: standby orange, charging red, full green.
Specifications of 24v LiFePO4 Charger
| Specfications | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ1-2415A/2410C | AC90-264V | 24V | 33V | 15A |
SMCZ1-3615A/3615C | AC90-264V | 36V | 49.5V | 15A |
SMCZ1-4815A/4812C | AC90-264V | 48V | 66V | 15A |
SMCZ1-6012A/6008C | AC90-264V | 60V | 82.5V | 12A |
SMCZ1-7210A/7206C | AC90-264V | 72V | 99V | 10A |
Technical Parameters
Item | Parameters |
AC Input Wide Voltage Range | AC90-264V |
AC Input Frequency Range | 40-70HZ |
With APFC Function Power Factor | ≥98% |
Soft Switching Technology Efficiency | ≥93% |
Protection Level | IP67 |
Operating Temperature | -40℃-+60℃ |
Storage Temperature | -55℃-+100℃ |
CAN Communication Function | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Overall Size | 190x140x74.5mm |
Net Weight | 2.0kg |
About Summit Power
|
|
Summit Power Co.,Ltd is a professional charger manufacturer engaged in research and development, production and sales of lead-acid batteries and lithium battery chargers .From the design and application of chargers to providing products and follow-up tracking service,summit has always been assiduous in pursuit, fulfill their duties, and do their best to serve customers! We aim to meet the needs of customers and to promote the healthy development of battery charging industry as the goal of work!
In 2012, Summit launched China's first fully sealed charger.
In 2013, Summit cooperated with the College of electrical engineering, Shandong University and initiated the "Lithium Battery Charging Technology Research Laboratory" in qianfoshan campus of Shandong University.
In 2015, the annual output of chargers exceeded 100,000.
In 2017, Summit passed IATF16949 quality system certification,and the products passed CE and KC certification.
In 2020,Summit got the RCM certification.
In 2021,Summit's Southwest branch center was established and started overseas business.
We always adhered to the high-end, learn from others, and continue to improve the quality of our work. The subtleties show the quality of our products and the intentions of our service.
Our mission is: to take the development of the industry as our responsibility!

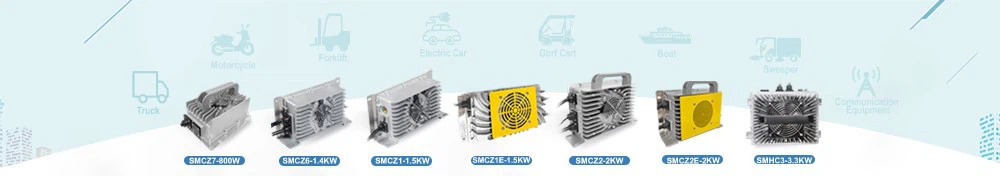

More Chargers Models
