OEM Service Manufacturer Electric Car Vehicle DC Fast Chademo CCS DC Mobile Portable 60kw EV Charger for Tesla
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC48V/60V/72V/96V/120V/144V/170V/312V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:294X210X111cm,
✱Net weight:6kg(13lb),
Send Inquiry
Product Details of OEM Service Manufacturer Electric Car Vehicle DC Fast Chademo CCS DC Mobile Portable 60kw EV Charger for Tesla
Product Introduction
Since its establishment, dc fast charger manufacturers, EV Electric Car On Board Charger, Wholesale 6 6 kw onboard charger has always been based on quality and integrity as the root of reputation, responding to the government's call to do a good job in dc fast charger manufacturers, EV Electric Car On Board Charger, Wholesale 6 6 kw onboard charger business, and implement management in strict accordance with industry standards and norms. We will join hands with colleagues in the industry to create a bright future for semiconductor lighting in the 21st century. Since its establishment, our company has always been based on the enterprise purpose of social benefit first and enterprise benefit second. We are adhering to the core concept of "tolerance, innovation, transcendence, and sharing".
Overview

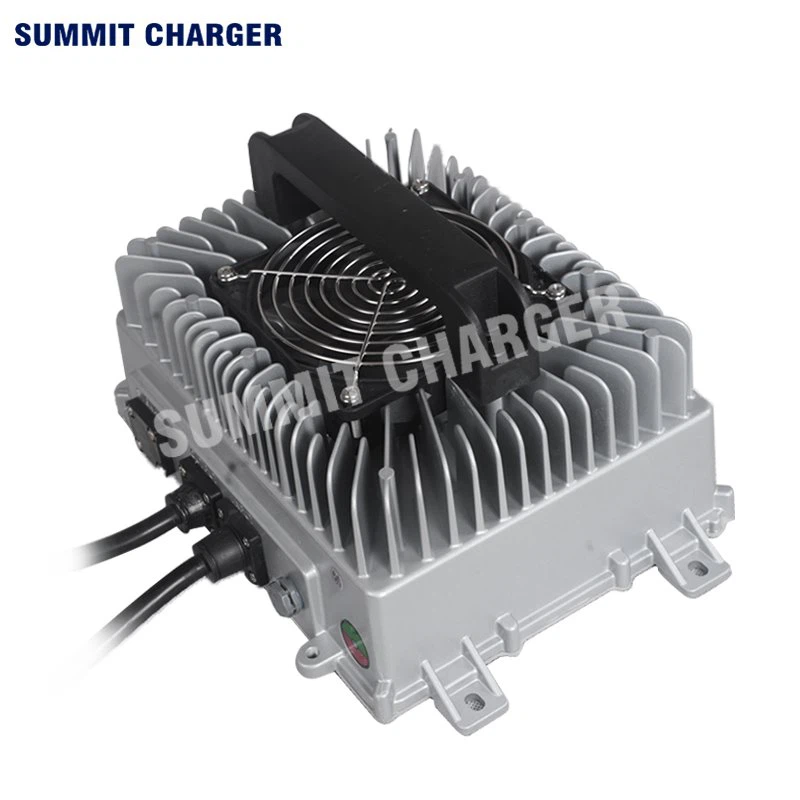

3.3kw Full Sealed Onboard Charger was specially designed, by Summit Power Co., Ltd for supplying the electricity for electric vehicle’s power battery, on the basis of the national standards for the charger. This product has the advantages of not only only high efficiency, small size, high stability, long lifespan, but also high protection grade, and high reliability and complete protection function, etc. It’s definitely an ideal charging power supply for f electric vehicles. This charger has built-in heat-sensing device and can automatic recover through the thermal protection. Fully sealed potting process and up to IP66/67 protection level ensures no causing trouble in any complex environment.
Specification of full sealed onboard charger
| Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMHC3-4842A | AC90-264V | 48V | 66V | 42A |
| SMHC3-6040A | AC90-264V | 60V | 82.5V | 40A |
| SMHC3-7240A | AC90-264V | 72V | 99V | 40A |
| SMHC3-8440A | AC90-264V | 80V | 110V | 40A |
| SMHC3-9632A | AC90-264V | 96V | 132V | 32A |
| SMHC3-12025A | AC90-264V | 120V | 165V | 25A |
| SMHC3-14423A | AC90-264V | 144V | 198V | 23A |
| SMHC3-31210A | AC90-264V | 312V | 440V | 10A |
Technical Parameters
| AC Input Wide Voltage Range | AC90-264V |
| AC Input Frequency Range | 40-70HZ |
| With APFC Function Power Factor | ≥0.98 |
| Soft Switching Technology Efficiency | ≥93% |
| IP Grade | IP67 |
| Operating Temperature | -40℃~-60℃ |
| Storage Temperature | -55℃~-100℃ |
| CAN Communication Function | Optional |
| 12V3A Auxiliary Power Supply | Optional |
| LED Light Indicator for Charging Process | Standard |
| Noise | ≤45dB |
| Overall Size | 294x210x111mm |
| Net Weight | 5.9kg |
Protection function
 |  |
Application
Apply to electric vehicles:sightseeing car,club car, golf cart, patrol car, electric cleaning equipment, sweeper, lawn mower;
About Summit Charger
 |
 |
Our Service
(1) Packing
1 charger 1 box, including product name, product part number, product brand, product type, production number and name of manufacturer; In packing box, along with the technical documents, it includes packing list, quality certificate, product specification.
(2) Transport
Suitable for cars, boats, aircraft, transportation. The products have to be prevented against sunshine and moisture and in a civilized transportation.
(3) Storage
Product should be stored in the packing box when it is not used and be maintained in a 5 ℃ to 40 ℃ clean, dry and well-ventilated environment. It should not be stored together with chemicals, acid and alkali substances etc,. Should avoid storing in the sun, fire, water and avoid storing with corrosive substances. The storage period is 2 years (from the inventory date of the factory). After the 24 months of storage period, the products should still comply with the provisions of the relevant standards.
More models
Our products are exported for OEM Service Manufacturer Electric Car Vehicle DC Fast Chademo CCS DC Mobile Portable 60kw EV Charger for Tesla. Honesty and trustworthiness is our corporate character and the solemn promise we make to our partners, customers and related stakeholders in business activities. Our service terminals strictly implement transparent and standardized operation processes.
Hot Tags: 3.3kw full sealed onboard charger, China, suppliers, manufacturers, factory, wholesale, in stock, best motorcycle battery charger, China electric car charger, 48v 15a Fast Surfboard Charger, Wholesale motorbike battery charger, Wholesale golf cart charger, China 72v ebike battery charger factory
[[ProKeywords]]SPEC DATA
