48v LifePO4 Charger
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,

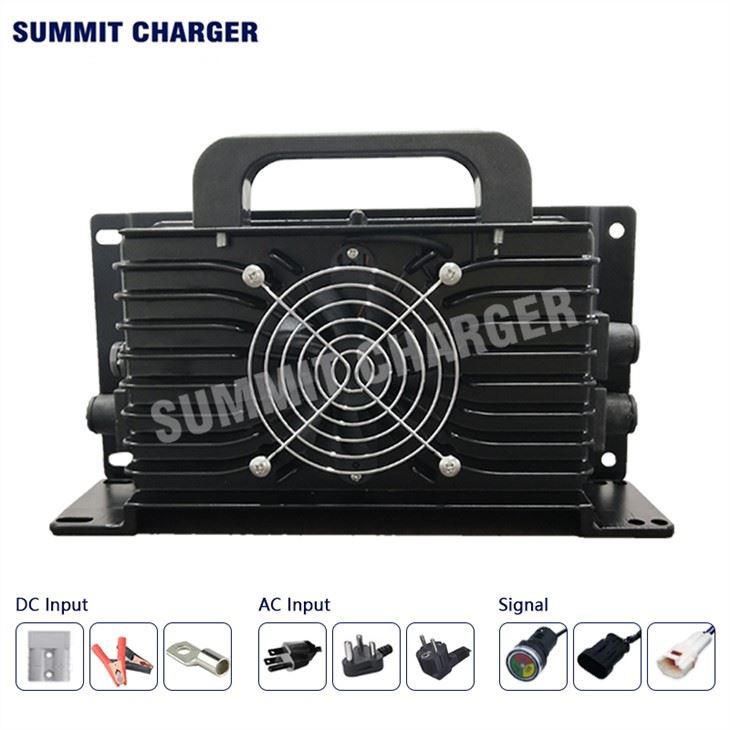

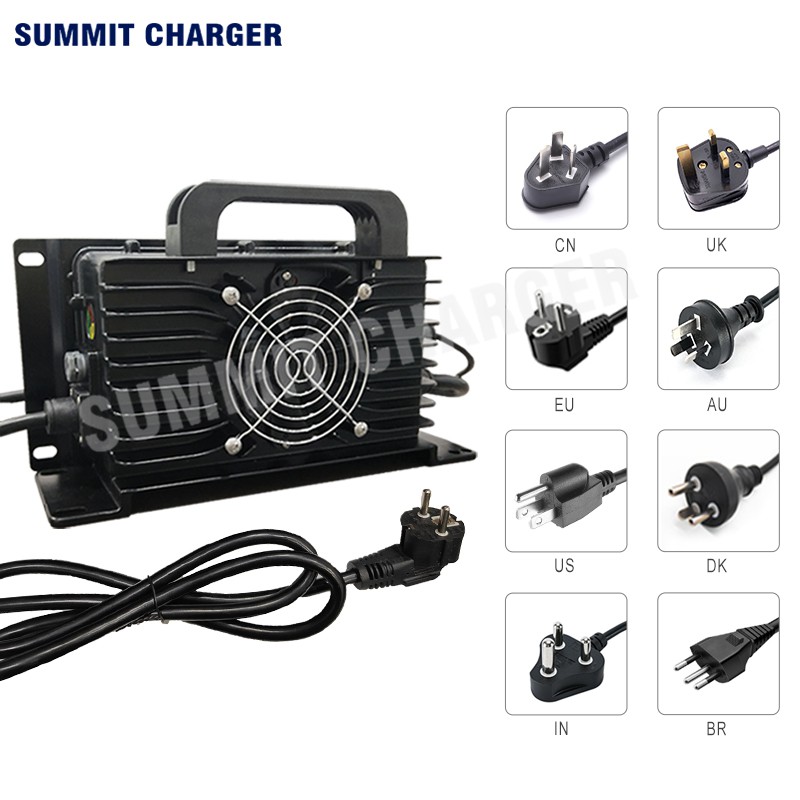

✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x146x82cm,
✱Net weight:2.7kg(5.9lb),
Send Inquiry
Product Details of48v LifePO4 Charger

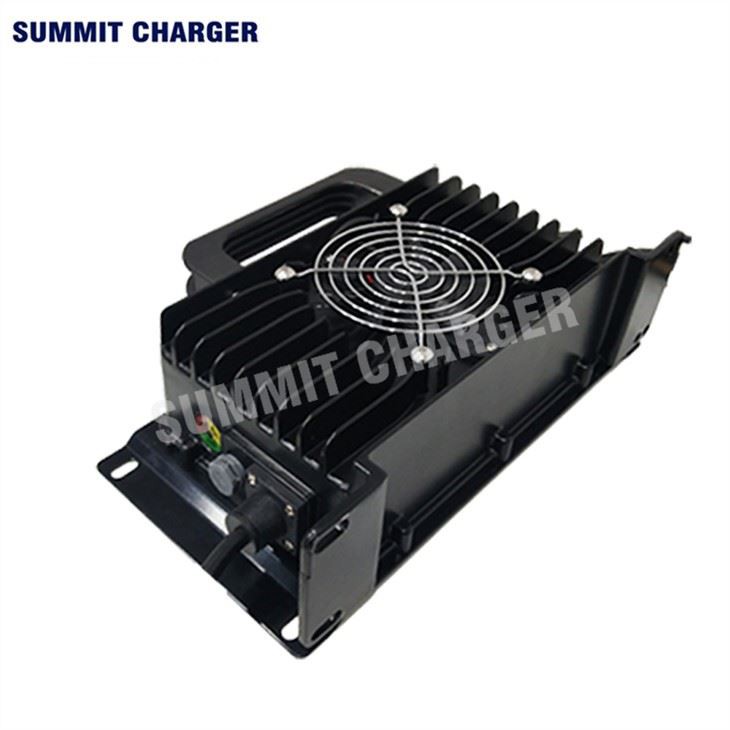

Overview of 48v LiFePO4 Charger
Are you looking for a WATERPROOF/DUSTPROOF/IP67 Charger? Or do you prefer a Fully Sealed Black Battery Charger? Let me show you a handsome Black Charger of 48v LiFePO4 Charger.
The main parameters of LiFePO4 battery are nominal voltage 3.2V, termination charge voltage 3.6+0.05V, termination discharge voltage 2.0V. The LiFePO4 battery charger is required because its termination voltage is different from that of lithium ion batteries (4.2V). Battery charger IC CN3058 and CN3059. These two kinds of charger IC performance is basically the same, the difference is that the former maximum charging current 1CH=500mA, and the latter is IcH=1000 mA; The former is in an 8-pin sop-8 package (lead-free), while the latter is in a 10-pin 3mm x3mm DFN package (lead-free).
Specification of 48v LiFePO4 Charger
| Specifications&models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMCZ1-1230A/1230C | AC90-264V | 12V | 16.5V | 30A |
| SMCZ1-2430A/2430C | AC90-264V | 24V | 33.0V | 30A |
| SMCZ1-3625A/3625C | AC90-264V | 36V | 49.5V | 25A |
| SMCZ1-4825A/4825C | AC90-264V | 48V | 66.0V | 25A |
| SMCZ1-6020A/6015C | AC90-264V | 60V | 82.5V | 20A |
| SMCZ1-7218A/7212C | AC90-264V | 72V | 99.0V | 18A |
| SMCZ1-8015A | AC180-264V | 80V | 110V | 15A |
| SMCZ1-9610A | AC180-264V | 96V | 132V | 10A |
| SMCZ1-10207A | AC180-264V | 102V | 140V | 7A |
Technical Parameters
| Item | Prameters |
| AC Input Wide Voltage Range | AC90-264V |
| AC Input Frequency Range | 40-70HZ |
| With APFC Function Power Factor | 0.98 |
| Soft Switching Technical Efficiency | 93% |
| Protection Level | IP67 |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -55℃~+100℃ |
| CAN Communication | Optional |
| 12V3A Auxiliary Power Supply | Optional |
| LED Light Indicator for Charging Process | Standard |
| Noise | <46dB |
| Overall Size | 282x146x82mm |
| Net Weight | 2.7kg |
More Applications
|
|
|
About Summit Charger
Summit charger factory is located on Dezhou ,Shandong province,China,was founded 2008
|
|
More Charger models
Contact infomation
Phone: 86 19150363344
Whatsapp: 86 19150363344
Email:info@summitcharger.com
Address:No.7 Geruide Road, Decheng District, Dezhou City, Shandong Province, China.
Hot Tags: 48v lifepo4 charger, China, suppliers, manufacturers, factory, wholesale, in stock,
