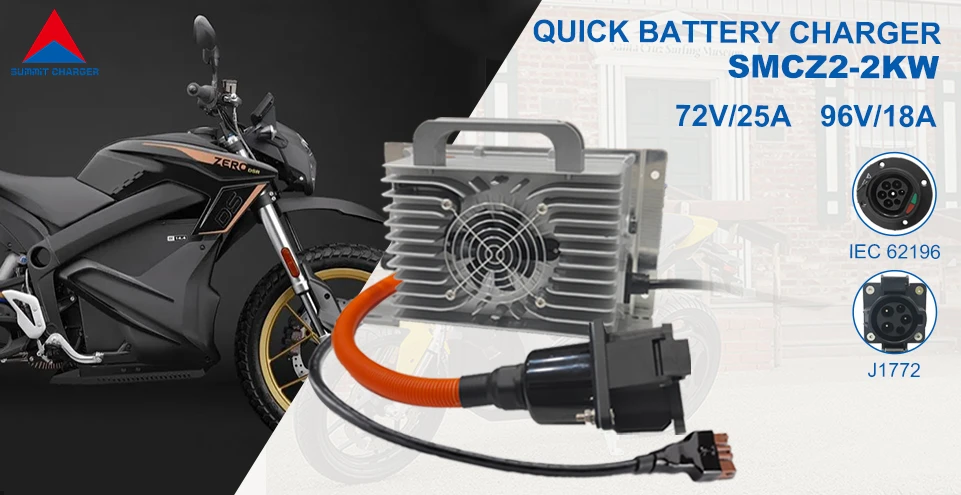

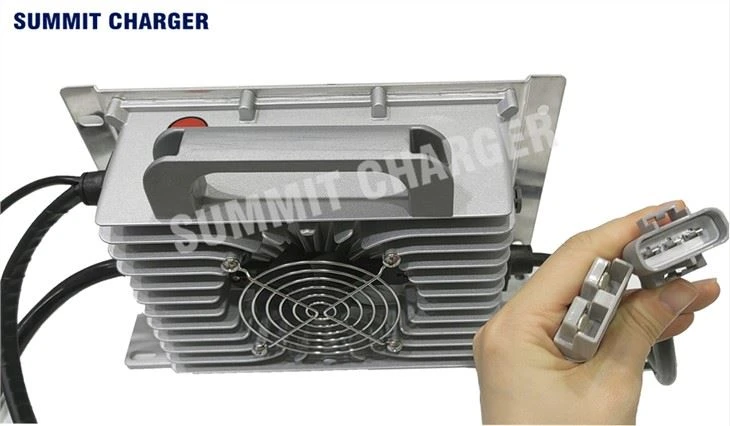

72v Charger For ZERO
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x168x90cm,
✱Net weight:3.8kg(8.3lb),
Send Inquiry
Product Details of72v Charger For ZERO
Ovewview of Summit Charger
Summit Charger Advantages
Everyone should be very familiar with the brand ZERO. ZERO was established in 1992 and has always been committed to creating hardtails that are easy to ride. Their attitude and flavor are sought after by many consumers. In 2002, they began mass production of this unique design. , became the fifth motorcycle manufacturer in Japan. The owner of the company used to be a racer, and he had to personally handle every test drive. Their attitude and precision are key to Zero's current success, and balancing the weight of the bike with the height of the rider, along with a traditional spring head and hardtail frame, can be a challenge. With the installation of urban charging piles, more and more motorcycles can now be charged on the street. Now let's take a look at this essential charger for charging ZERO motorcycles.
Specification
| Specs&models | Input voltage range | Rated output voltage | Max voltage voltage | Max output current |
| SMCZ2-1230A/1230C | AC90-264V | 12V | 20V | 30A |
| SMCZ2-2445A/2440C | AC90-264V | 24V | 33V | 45A |
| SMCZ2-3640A/3640C | AC90-264V | 36V | 49.5V | 40A |
| SMCZ2-4835A/4825C | AC90-264V | 48V | 66V | 35A |
| SMCZ2-6030A/6020C | AC90-264V | 60V | 82.5V | 30A |
| SMCZ2-7225A/7218C | AC90-264V | 72V | 99V | 25A |
| SMCZ2-8022A | AC180-264V | 80V | 110V | 22A |
| SMCZ2-9610A/9610C | AC90-264V | 96V | 132V | 10A |
Technical Parameters
| Item | Prameters |
| AC Input Wide Voltage Range | AC90-264V |
| AC Input Frequency Range | 40-70HZ |
| With APFC Function Power Factor | 0.98 |
| Soft Switching Technical Efficiency | 93% |
| Protection Level | IP67 |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -55℃~+100℃ |
| CAN Communication | Optional |
| 12V3A Auxiliary Power Supply | Optional |
| LED Light Indicator for Charging Process | Standard |
| Noise | <46dB |
| Overall Size | 282x168x90mm |
| Net Weight | 3.8kg |
Product advantages

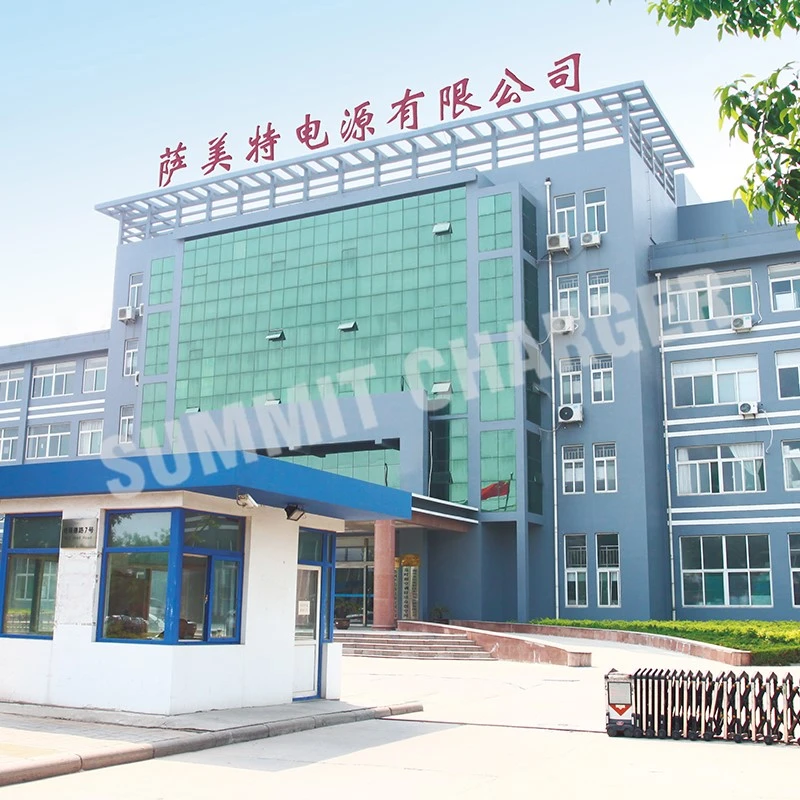

About Summit
In 2012, Summit launched China's first fully sealed charger.
In 2013, Summit cooperated with the College of electrical engineering, Shandong University and initiated the "Lithium Battery Charging Technology Research Laboratory" in qianfoshan campus of Shandong University.
In 2015, the annual output of chargers exceeded 100,000.
In 2017, Summit passed IATF16949 quality system certification,and the products passed CE and KC certification.
In 2020,Summit got the RCM certificate.
In 2022,Summit Southwest China branch is established in Chengdu and is responsible for global sales
We always adhered to the high-end, learn from others, and continue to improve the quality of our work. The subtleties show the quality of our products and the intentions of our service.
Our mission is: to take the development of the industry as our responsibility!

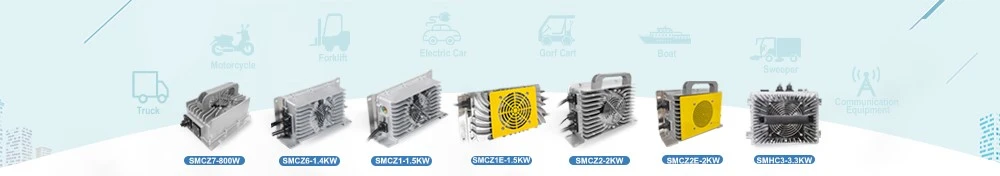

More Charger Models
