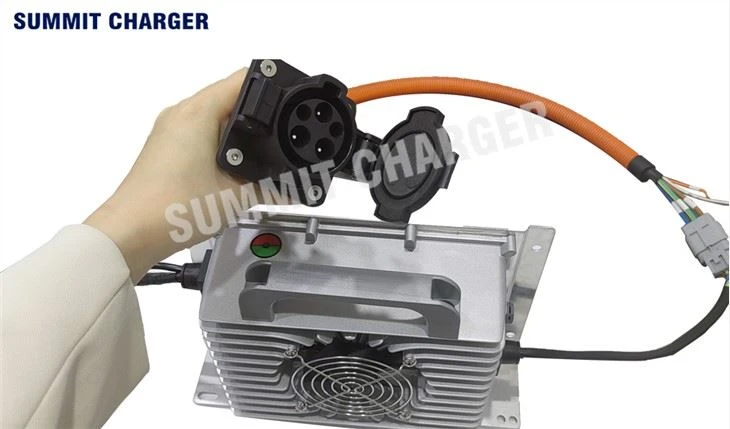

96V LifePO4 Charger
Overview of 96v battery charger
Summit Charger is a professional charger manufacturer for lead acid battery and lithium battery,we have independent R & D teams and latest production lines,we provide battery charger design, application,charging system solutions and perfect after-sales service. Summit charger series adopts “combination pulse rapid charging and discharging technology”, which can signifificantly improve the charging effiffifficiency and quality, greatly shorten the charging time, effffectively extend the battery life, innovate the charging state of electric vehicles, and achieve “high effiffifficiency, environmental protection and energysaving”
Specifications of 96v Lifepo4 battery charger
| Specifications | Input Voltage Range(v) | Rated Output Voltage(v) | Max Output Voltage(v) | Max Output Current(a) |
| SMCZ2-1230A/1230C | AC90-264V | 12V | 20V | 30A |
| SMCZ2-2445A/2440C | AC90-264V | 24V | 33V | 45A |
| SMCZ2-3640A/3640C | AC90-264V | 36V | 49.5V | 40A |
| SMCZ2-4835A/4825C | AC90-264V | 48V | 66V | 35A |
| SMCZ2-6030A/6020C | AC90-264V | 60V | 82.5V | 30A |
| SMCZ2-7225A/7218C | AC90-264V | 72V | 99V | 25A |
| SMCZ2-8022A | AC180-264V | 80V | 110V | 22A |
| SMCZ2-9610A/9610C | AC90-264V | 96V | 132V | 18A |
Technical Parameters
| Item | Prameters |
| AC Input Wide Voltage Range | AC90-264V |
| AC Input Frequency Range | 40-70HZ |
| With APFC Function Power Factor | 0.98 |
| Soft Switching Technical Efficiency | 93% |
| Protection Level | IP67 |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -55℃~+100℃ |
| CAN Communication | Optional |
| 12V3A Auxiliary Power Supply | Optional |
| LED Light Indicator for Charging Process | Standard |
| Noise | <46dB |
| Overall Size |
282 ×168× 90 (mm)
|
| Net Weight | 3.8kg |
Features of 96v Lifepo4 battery charger
| Overheat Protection | When the internal temperature of the chagrer exceeds 80℃,the charging current will reduce automatically.When it exceeds 85℃,the charger shutdown for protection.When the temperature drop,the charger automatically resumes to charge. |
| Short Circuit Protection | When the output short circuit,the chrger will automatically shut down the output.After troubleshooting,the battery can be reconnected to resume charging. |
| Battery Reverse Connection Protection | When the battery is reverse connected,the internal circuit of the charger will automatically disconnect from the battery ,without charging,without damaging the charger. |
| Low voltage&Over voltage Protection | If the input voltage is lower than 90V or higher than 264v,the charger will shut down protectively and automatically resume working with the voltage is normal again. |
| Full Automatic Shutdown | Automatically shut down after charge |
Application
|
|
About Summit Charger
|
In 2012, Summit launched China's first fully sealed charger. |
| In 2013, Summit cooperated with the College of electrical engineering, Shandong University and initiated the "Lithium Battery Charging Technology Research Laboratory" in qianfoshan campus of Shandong University. |
| In 2015, the annual output of chargers exceeded 100,000. |
| In 2017, Summit passed IATF16949 quality system certification,and the products passed CE and KC certification. |
