1. Product details of 48v Onboard Charger for Sweeper

♦The whole process of intelligent charging control by microcomputer, the charging process does not require manual intervention, and the LED digital display of charging voltage, current, AH, time, temperature and other parameters.

♦ Adaptive charging curve, automatically track battery status

♦Different battery manufacturers, different degrees of old and new, different discharge amounts, and different ambient temperatures can ensure that the battery is in good condition and prolong the battery life.

♦Battery is not connected, reverse connection, under voltage, over voltage, over temperature, sufficient, and fault state automatic detection and display protection

♦Real-time monitoring and display of charging voltage, current, power, time, temperature, charging times, etc.

♦When the AC power is connected, the battery will be automatically charged, and the soft-start will be delayed to start up, and it will automatically shut down when it is sufficient.

♦With conventional charging, automatic equalization charging, under-voltage forced charging, desulfurization charging and other charging modes

♦ Real-time recording of charging data, you can draw and print the charging curve through microcomputer communication (optional)

♦ Full range of specifications: voltage range 12V, 24V, 36V, 72V, 80V, 96V

♦ Current range 10A, 15A, 20A, 30A, 40A, 50A, 60A, 80A, 100A.

2.Model of 48v Onboard Charger for Sweeper

Specifications &Models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
SMCZ2-1230A/1230C	AC90~264V	12V	20v	30A
SMCZ2-2445A/2440C	AC90~264V	24V	33V	45A
SMCZ2-3640A/3640C	AC90~264V	36V	49.5V	40A
SMCZ2-4835A/4825C	AC90~264V	48V	66V	35A
SMCZ2-6030A/6020C	AC90~264V	60V	82.5V	30A
SMCZ2-7225A/7218C	AC90~264V	72V	99V	25A
SMCZ2-8022A	AC180~264V	80V	110V	22A
SMCZ2-9610A/9610C	AC90~264V	96V	132V	18A

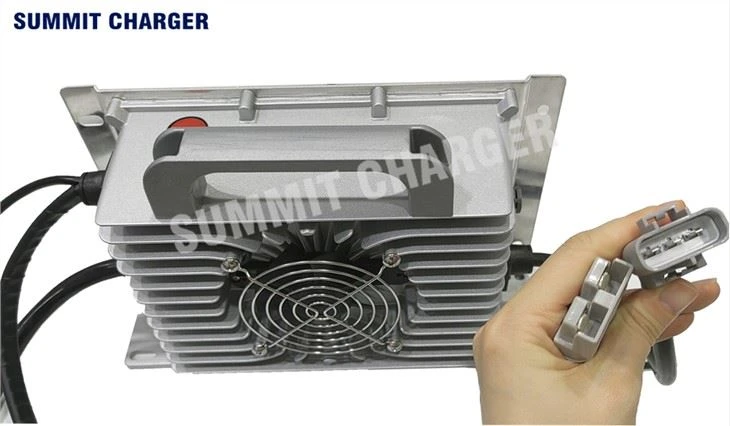

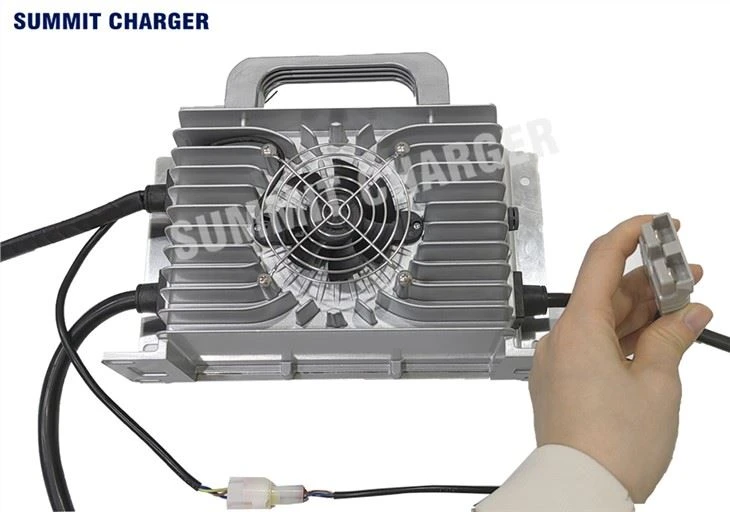

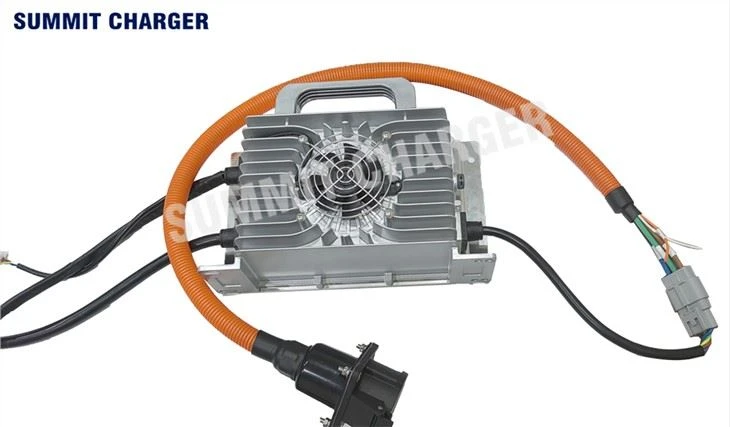

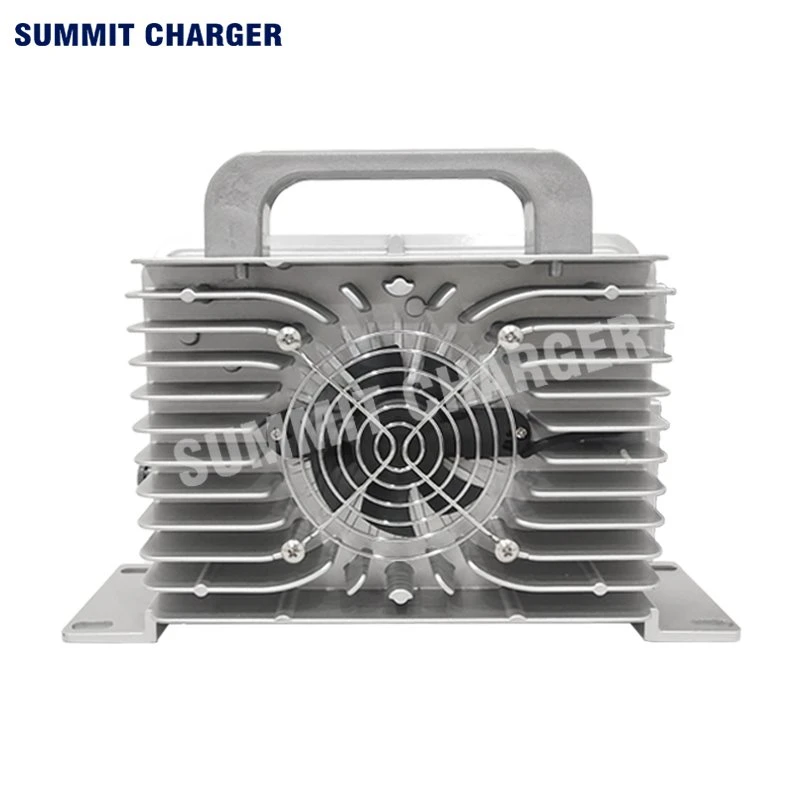

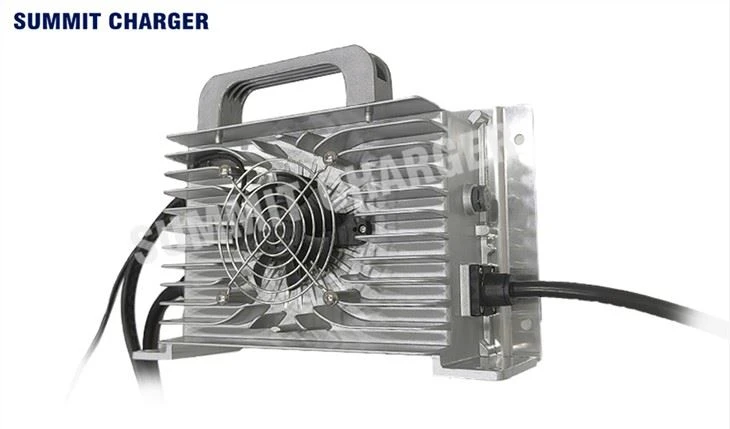

48v Onboard Charger for Sweeper

3.Technical characteristics of 48v Onboard Charger for Sweeper

Item	Parameters
Ac Input Wide Voltage Range	AC90v-264v
AC Input Frequency Range	40-70HZ
With APFC Function,Power Factor	≥0.98
Soft Switching Technology,Efficiency	≥93%
Protection Level	IP67
Operating Temperature	-40℃~ +60℃
Storage Temperature	-55℃~ +100℃
CAN Communication	Optional
12v3a Auxiliary Power Supply	Optional
LED Light Indicator for Charging Process	Standard
Noise	≤45dB
Overall Size	282x168x90(mm)
Net Weight	3.8kg

Input	Stand-by Consumption	≤ 5W
Main Output	Output Mode	CV / CC
	Output Power	1500W@220VAC
	CV Accuracy	±1%
	CC Accuracy	±1%
	Ripple Voltage Coefficient	5%
Low Voltage Output	Output Mode	Constant Voltage
	Output Voltage	13.8V
	Rated Current	5A
	CV Accuracy	±2%
	Maximum Current	5.5A±0.5A
	Output Power	≥ 62.5W
	Ripple Voltage Coefficient	1%
Communication Function	CAN Communication	Yes
	Baud Rate	125Kbps,250Kbps,500Kbps
	Terminal Resistance	N/A

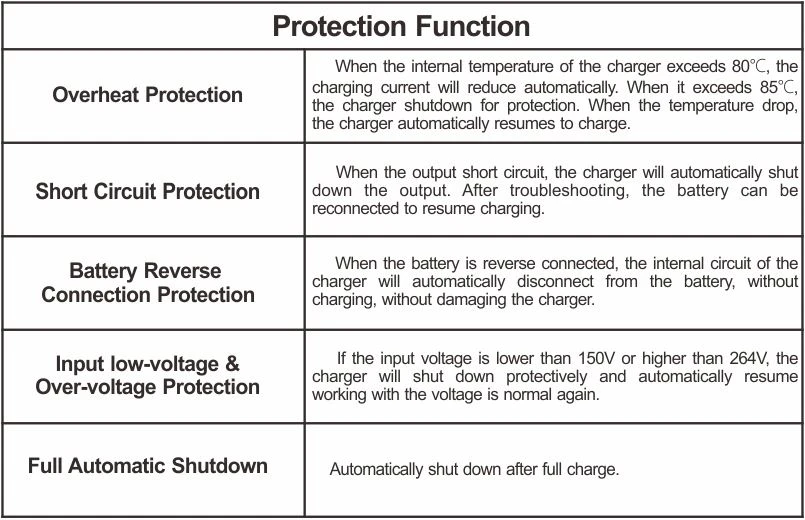

4. Protection Function of 48v Onboard Charger for Sweeper

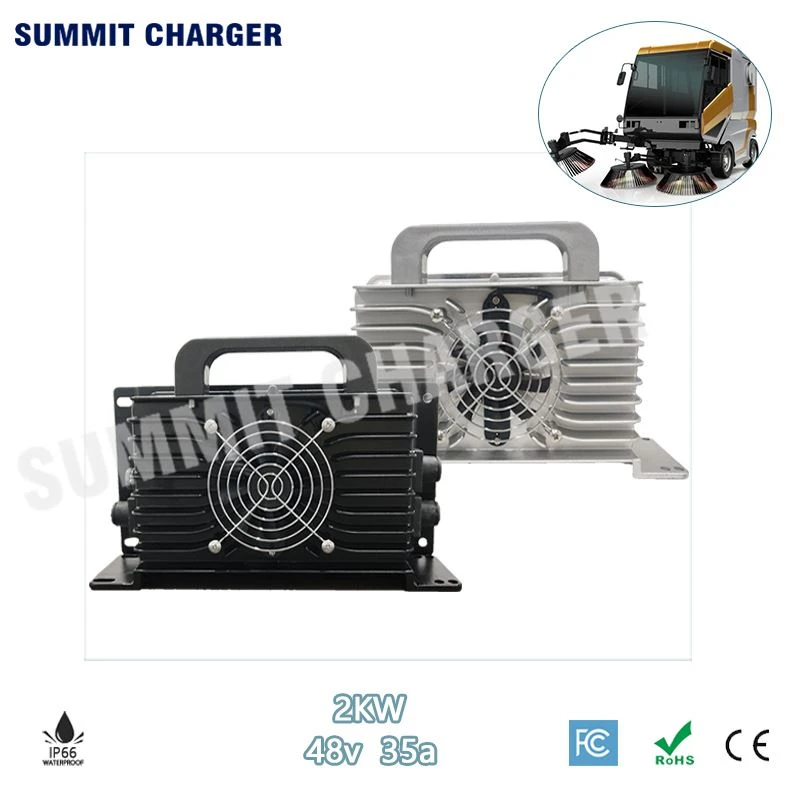

5. Application of 48v Onboard Charger for Sweeper

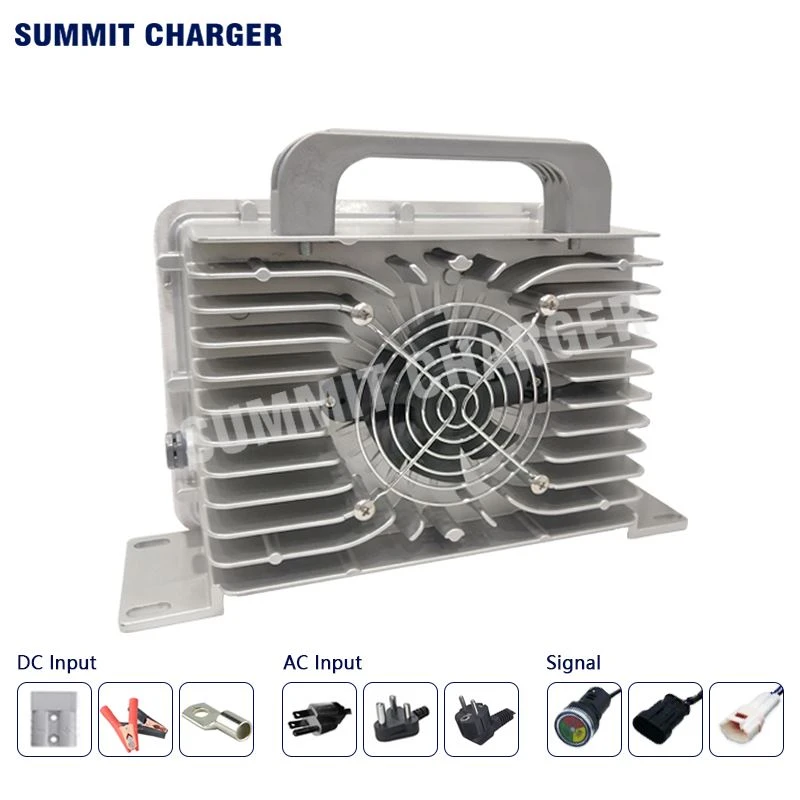

48v Onboard Charger for Sweeper

FAQ

1. How to place an order?

You can contact any of our sales people to order. Please provide details

Your request is as clear as possible. Therefore, we can send you a quotation in the first time.

For designs or further discussions, it is best to contact us via Skype, TradeManger or QQ or WhatsApp or other instant means to prevent delays.

2. When can I get the price?

Usually we will quote within 12 hours after receiving your inquiry.

3. Can you make a usage plan for us?

Yes. We have a professional team with extensive experience in using and manufacturing.

Just tell us your thoughts and we'll help you put them into practice.

4. How soon can I receive the samples?

The samples will be ready after you pay the sample fee and send us the confirmation document

Delivery within 1-3 days. Samples will be sent to you by courier and arrive within 3-5 days.

5. What is the lead time for mass production?

Honestly, it depends on the order quantity and the season you place your order.

Always 5-10 days according to general order.

We are factory, we can guarantee our price is first hand, high quality and competitive price.
