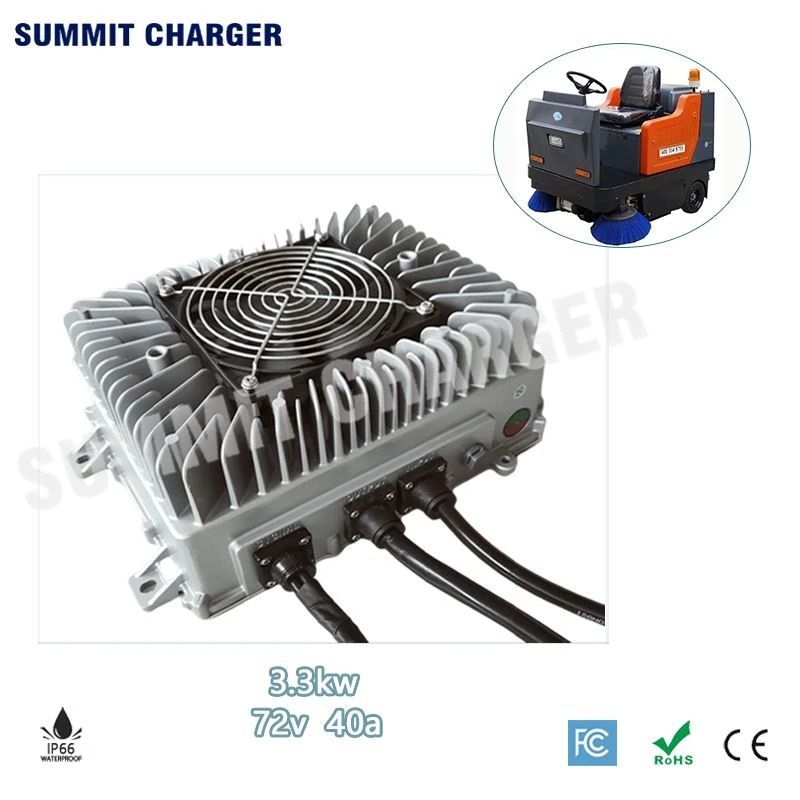

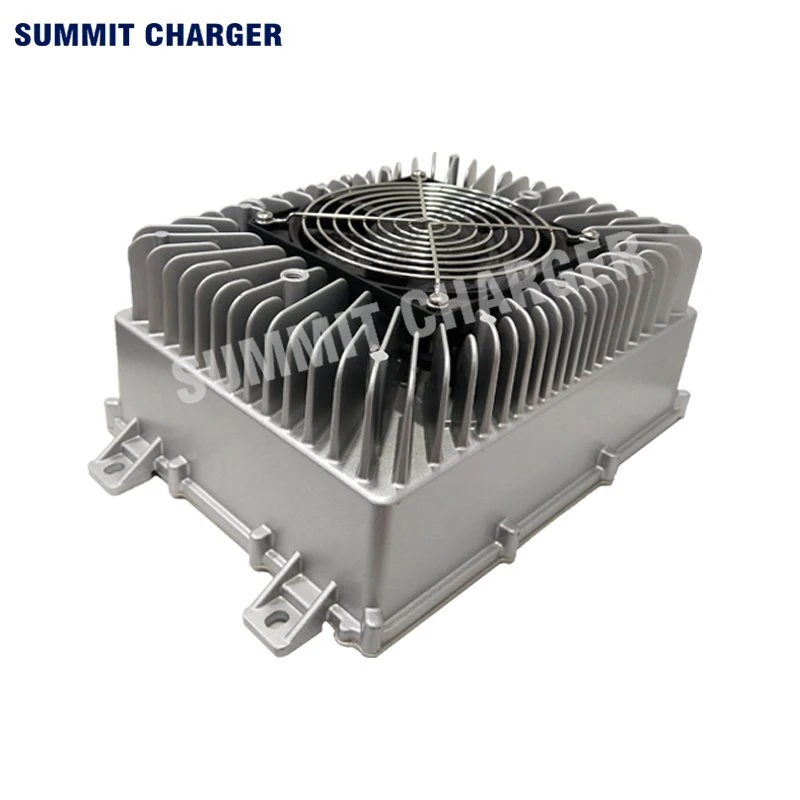

72v On Board Sweeper Charger

Product name:72v On board Sweeper Charger

Product model: SMHC3-3.3KW fully sealed charger

Main specifications: constant current output 25A; constant voltage output 88.5V

Applicable: suitable for charging all kinds of electric forklifts, electric vehicles, electric sightseeing cars, electric golf carts

Detailed technical parameters:(The specific electrical parameters and dimensions of the product can be modified and customized according to customer requirements)

Suitable for charging 72V120AH~200AH lead-acid batteries.

Main Features

1. Intelligent air-cooling design: The fan speed is automatically adjusted with the power, which effectively prolongs the life of the fan.

2. Small size and light weight: Reasonable structure and heat dissipation design minimize the volume and weight of the whole machine and improve the portability of the charger.

3. Advanced technology: The whole machine adopts switching power supply technology and intelligent charging technology.

4. High stability: The switching power supply control chip adopts imported military-grade integrated circuits, which are stable and reliable, with low failure rate and high reliability.

5. Using pulse width modulation technology, high efficiency, high power factor; low ripple coefficient, little interference to other equipment.

6. Charging characteristics: using intelligent charging technology, the charging process does not require manual intervention.

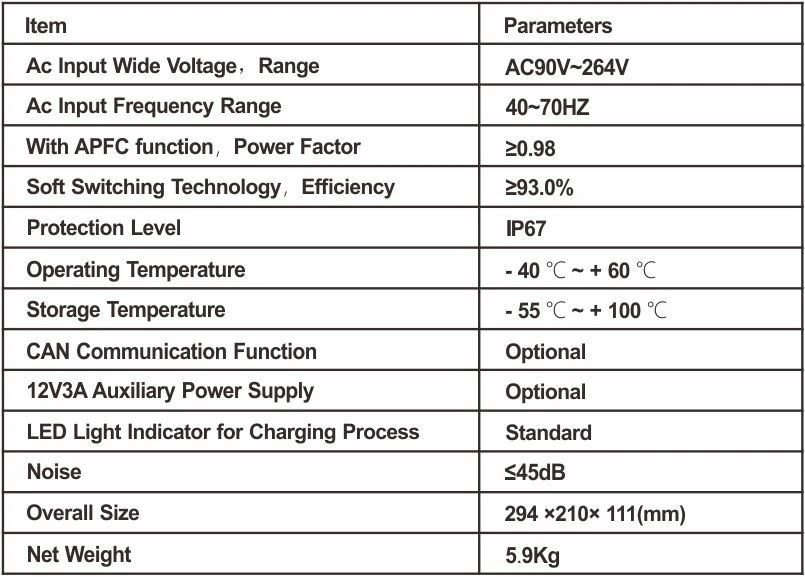

Technical Parmeters

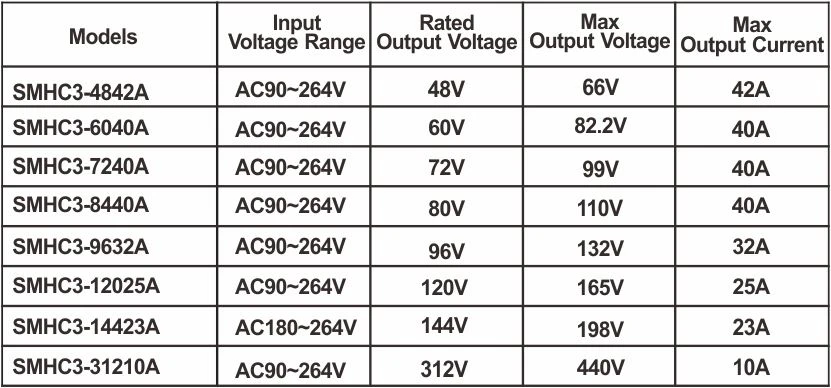

Specifications of 72v On board Sweeper Charger

Protection Function of 72v On board Sweeper Charger

01:Overheat Protection

When The Internal Temperature of the Charger Exceeds 80℃,the Charging Current Will Reduce Automatically.When it Exceeds 85℃,the Charger Shutdown for Protection.When the Temperature Drop,the Charger Automatically Resumes to Charge.

02:Short Circuit Protection

When the Output Short Circuit,the Charger Will Automatically Shutdown the Output.After Troubles Shooting,the Battery Can be Reconnected to Resume Charging.

03:Battery Reverse Connection Protection

When the Battery is Reverse Connected,the Internal Circuit of the Charger Will Automatically Disconnect From the Battery,Without Charging,Without Damaging the Charger

04:Input Low-Voltage&Over-Voltage Protection

If the Input Voltage is Lower Than 90V or Higher Than 264V,the Charger Will Shutdown Protectively and Automatically Resume Working with the Voltage is Normal Again.

05:Full Automatic Shutdown

Automatically Shut Down After Full Charge.

Application of 72v On board Sweeper Charger

Summit Charger variable frequency pulse charger series can be used for lead-acid batteries ,lithium batteries,

Ni-mh battery, Ni-cad battery and other energy storage battery charging.

Apply to electric vehicles:sightseeing car,club car, golf cart, patrol car, electric cleaning equipment, sweeper, lawn mower;

Material handling equipment: forklift,lift truck, pallet truck, stacking truck,lift;

Electric boats,ATV,Kart,Vans,cars and buses;

Special categories: Power sector, Marine, aerospace, military, etc
