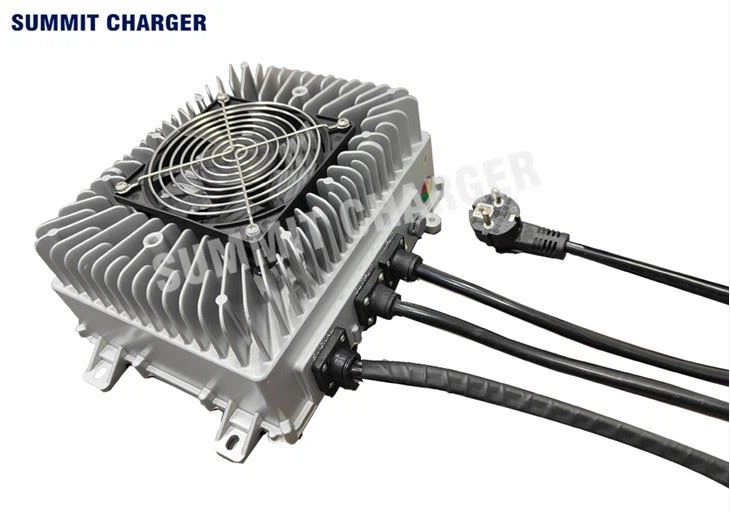

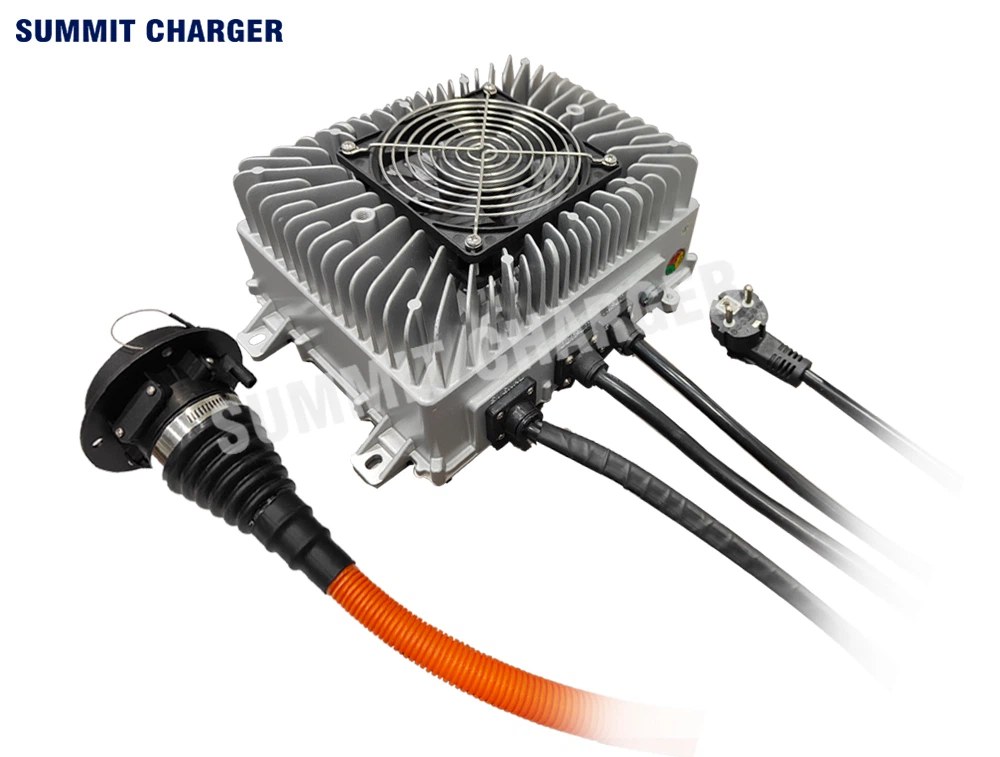

96V Lithium Ion Charger

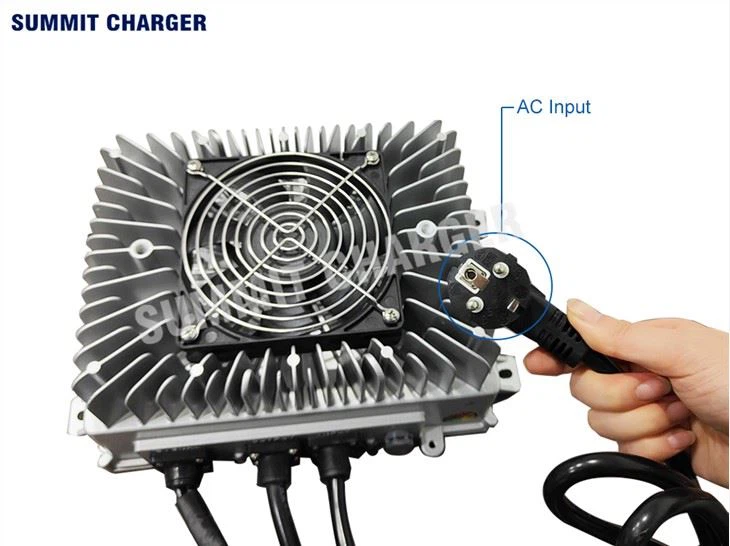

✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:294x210x111cm,
✱Net weight:5.9kg(13lb),
Send Inquiry
Product Details of96V Lithium Ion Charger
Overview
The 96V Lithium ion Charger with complete input voltage should contain at least two parts inside, one part is an AC-to-DC and step-down circuit, and the other is a charging circuit. For a complete balanced charger, the input voltage is often the mains AC 220V, or 110V AC.
| Charging output power | Charge output current | Discharge current |
| The calculation method of charging output power should be: Output Voltage X Output Current = Output Power.For example, the single output power of the MG-1 charger is:96v*32a = 3072W | When charging, the current output by the charger to the rechargeable battery, the commonly used charging rate of the power lithium polymer battery is 1C, for example, a battery with a capacity of 2200MAH, its 1C charging current is:2200MAH X 1C = 2200MA,Its 1C charging current is 2.2A. | Lithium battery balance chargers generally have a discharge function, and the discharge current refers to the current that the charger discharges. For example, the discharge current of the SMHC3-3.3KW charger is 32A. |
 |
 |
 |
| Charging method | Charge efficiency | |
|
At present, the charging method of lithium batteries is mainly series charging + balanced charging, and a small amount is full-balanced charging. String charging refers to direct high-current charging, ignoring the nuances of each cell, for example, charging a 3S battery and directly charging it with a voltage of 12.6V. This charging method can be charged quickly. Balanced charging refers to charging each cell separately until its single cell reaches 4.2V. The charging method of the 96V charger is to first complete 95% of the charging with a series charge, and then complete the last 5% of the charge with a balanced charge. |
Losses will occur when the current is converted from AC to DC, and DC will also generate losses during the process of bucking or boosting. The meaning of charging efficiency is: output power ÷ input power = charging efficiency |
|
 |
||
Technical Paraments
| Item | Prameters |
| AC Input Wide Voltage Range | AC90-264V |
| AC Input Frequency Range | 40-70HZ |
| With APFC Function Power Factor | 0.98 |
| Soft Switching Technical Efficiency | 93% |
| Protection Level | IP67 |
| Operating Temperature | -40℃~+60℃ |
| Storage Temperature | -55℃~+100℃ |
| CAN Communication | Optional |
| 12V3A Auxiliary Power Supply | Optional |
| LED Light Indicator for Charging Process | Standard |
| Noise | <46dB |
| Overall Size |
282 ×168× 90 (mm)
|
| Net Weight | 3.8kg |

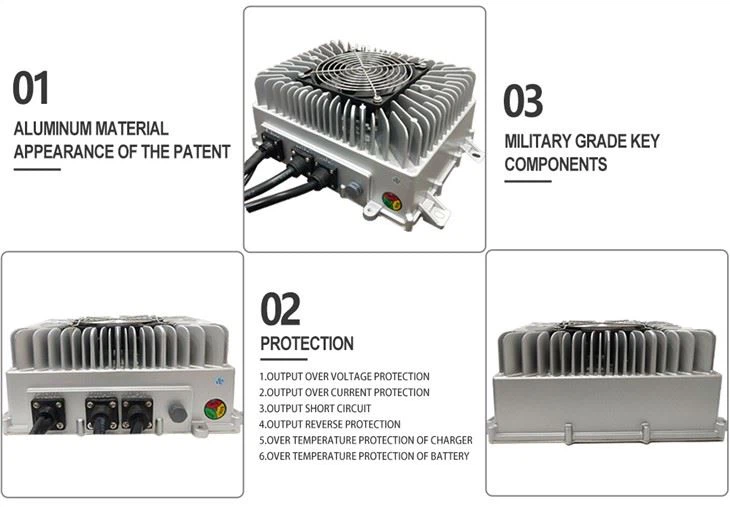

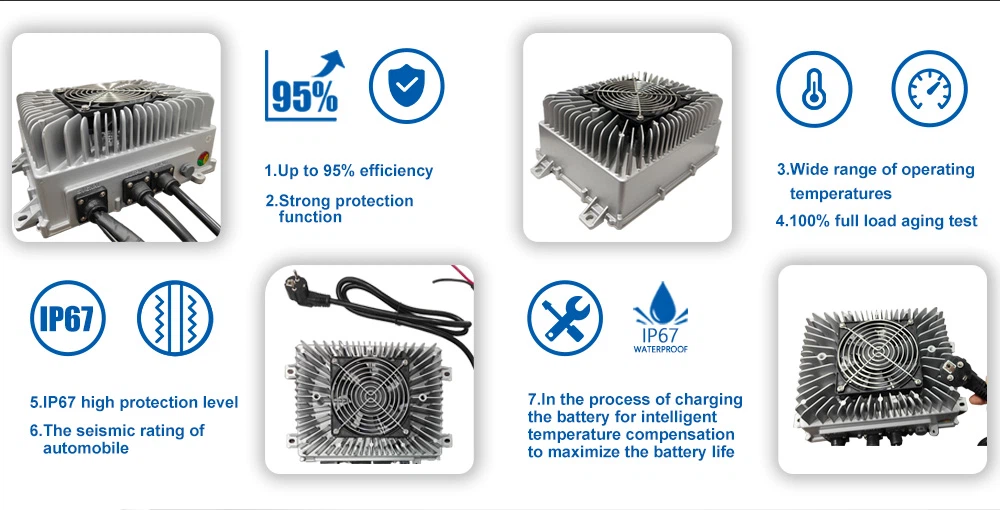

Features
| Overheat Protection | When the internal temperature of the chagrer exceeds 80℃,the charging current will reduce automatically.When it exceeds 85℃,the charger shutdown for protection.When the temperature drop,the charger automatically resumes to charge. |
| Short Circuit Protection | When the output short circuit,the chrger will automatically shut down the output.After troubleshooting,the battery can be reconnected to resume charging. |
| Battery Reverse Connection Protection | When the battery is reverse connected,the internal circuit of the charger will automatically disconnect from the battery ,without charging,without damaging the charger. |
| Low voltage&Over voltage Protection | If the input voltage is lower than 90V or higher than 264v,the charger will shut down protectively and automatically resume working with the voltage is normal again. |
| Full Automatic Shutdown | Automatically shut down after charge |
Application
|
|
About Summit Charger
| Factory&workshop |  |
| Summit&exhibitions |  |
More models
