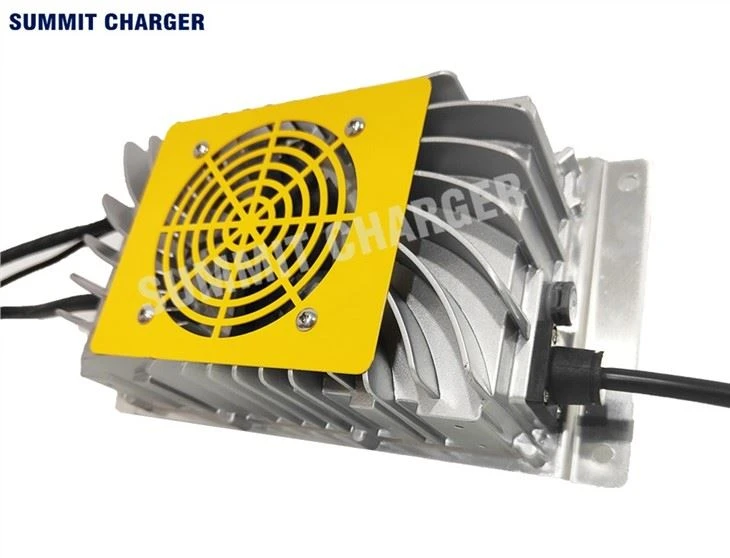

36 Volt 48 Volt 72 Volt Golf Cart Charger
Our Summit 36 volt 48 volt 72 volt Golf cart charger is able to charge the battery of a golf cart in a short time.
It is waterproof IP67 and dustproof, and can be used in different weather conditions. Model: SMCZ1E-1.5kW AluminumAlloy Fully Sealed onboard Charger
Input: AC90-264V with EU/ZA...Plug(Optional)
Output: DC10-30A with Anderson XT60/SB50/M10/Golf Cart Plug(Optional)
Send Inquiry
Product Details of36 Volt 48 Volt 72 Volt Golf Cart Charger
Introduction:
Electric golf cart battery charger series, including 36 volt 48 volt 72 volt Golf cart chargers, adopts advanced intelligent high-frequency switching power supply technology and high-quality imported components.
Its small size, light weight, high charging efficiency, high quality and durability are especially suitable for open and sealed lead-acid batteries and LiFePo4 batteries of various capacities.
It can effectively and significantly prolong the service life of the battery on the basis of ensuring that the battery is fully charged, but not overcharged or undercharged.
Product features:
1. Advanced technology: The whole machine adopts high-frequency switching power supply technology and intelligent charging technology.
2. High stability: The switching power supply control chip adopts imported high-quality integrated circuits, which are stable and reliable, with low failure rate and high reliability.
3. Using pulse width modulation technology, high efficiency, high power factor; low ripple coefficient, little interference to other equipment.
4. Charging characteristics: Using intelligent charging technology, the charging process does not require manual intervention. Plug and play, automatically adjust according to the actual situation of the battery.
5. Intelligent air-cooling design, the fan speed is automatically and intelligently adjusted according to the power, effectively prolonging the life of the fan;
6. Reasonable structure and heat dissipation design minimize the volume and weight of the whole machine and improve the portability of the charger.
7. Good energy-saving effect: the efficiency is more than 90%, which is more than 30% higher than that of transformer-type charger products, leading the industry level, effectively saving a lot of electricity bills.
8. Input and output over-voltage, current limiting, double over-temperature, reverse connection, timing shutdown and other protection functions are complete, which can effectively protect the battery.
36 volt 48 volt 72 volt Golf cart chargers specifications:
Model： | SMCZ1E 1.5kW fully sealed charger |
Ac Input Wide Voltage Range： | AC90V-264V |
Ac Input Frequency Range： | 40~70HZ |
With APFC function, Power Factor： | ≥0.98 |
Efficiency： | ≥93% |
IP Level： | 67 |
Working Temperature： | - 40 ℃ ~ + 60 ℃ |
Storage Temperature： | - 55 ℃ ~ + 100 ℃ |
CAN Communication： | Optional |
Auxiliary Power Supply 12V3A： | Optional |
LED Light Indicator： | YES |
Noise： | ≤45dB |
Overall Size： | L 282mm* W 145mm* H 84mm |
Net Weight： | 2.7Kg |
Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ1E-3625A/3625C | AC90-264V | 36V | 45V | 25A |
SMCZ1E-4825A/4820C | AC90-264V | 48V | 60V | 25A/20A |
SMCZ1E-7218A/7212C | AC90-264V | 72V | 90V | 18A/12A |
Remarks:
Special battery chargers can be customized, such as gel batteries, lithium iron phosphate, lithium manganese, lithium batteries, nickel-cadmium batteries, alkaline batteries, etc. or for special charging methods and various unconventional voltages and currents. For other related applications, please specify when contacting.
