Electric Golf Cart Battery Charger

The golf cart charger realizes the optimized charging curve through the microcomputer control technology, and the charging current automatically decreases with the increase of the charging voltage of the battery; combined with the pulse charging method at the end of the charging, the charging effect is more ideal. The principle of capacity balance is adopted to intelligently judge the sufficiency of the battery to ensure that the battery is sufficient—that is, neither undercharge nor overcharge.

The charging also has the function of dynamic tracking and adjustment of charging parameters and complete protection functions.

The golf cart charger intelligently determines the sufficiency of the battery.

On the premise of ensuring sufficient battery power, it can minimize the temperature and gas evolution inside the battery during the charging process, effectively prolonging the battery pack's charge-discharge cycle life;

High brightness indicator indicates the running status of the charger.

It has open circuit, reverse connection fault protection and alarm, overload, short circuit fault protection and alarm functions.

Manual or automatic equalization charging function to ensure the consistency of battery cell capacity.

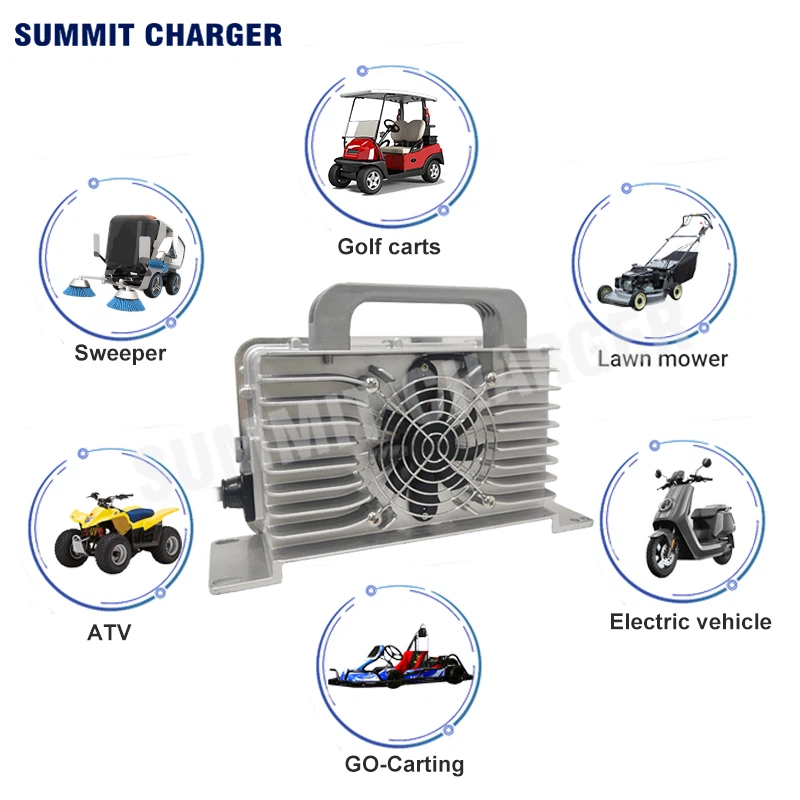

Wide Applications

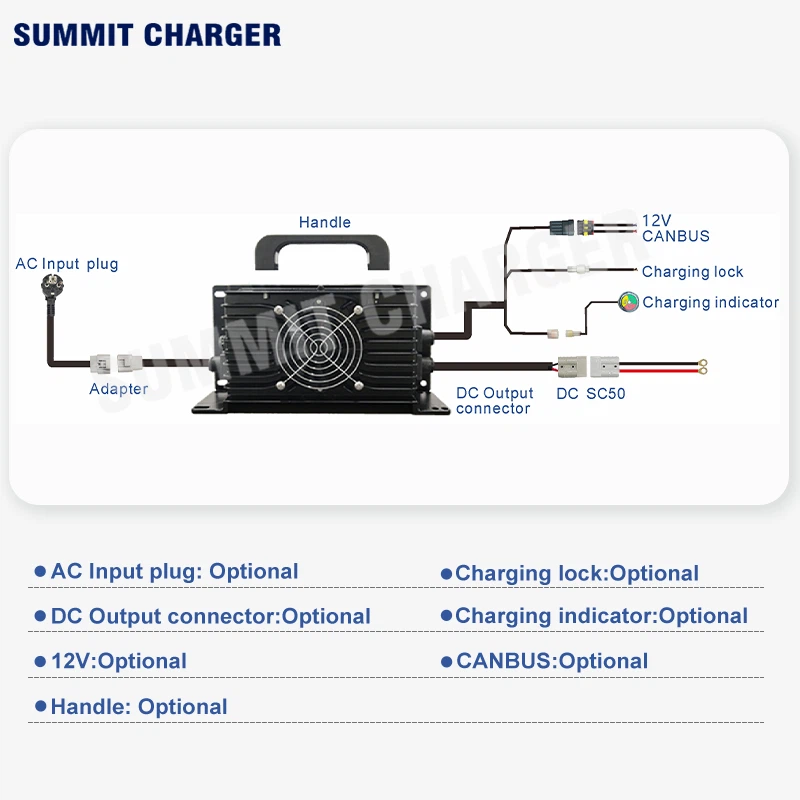

Optional Wirings & Extended Functions

• Model: SMCZ1P-1.5kW Aluminum Alloy Fully Sealed Charger

• Features: Waterproof/IP67/Shockproof/Dustproof

• Input: AC90-264V with US/EU/ZA...Plug(Optional)

• Output: DC12~30A with Anderson SB50/M10/Club car 3 pin round plug/EZ-go RXV plug/Yamaha G19/G22 plug/Yeeda-Y60...(Optional)

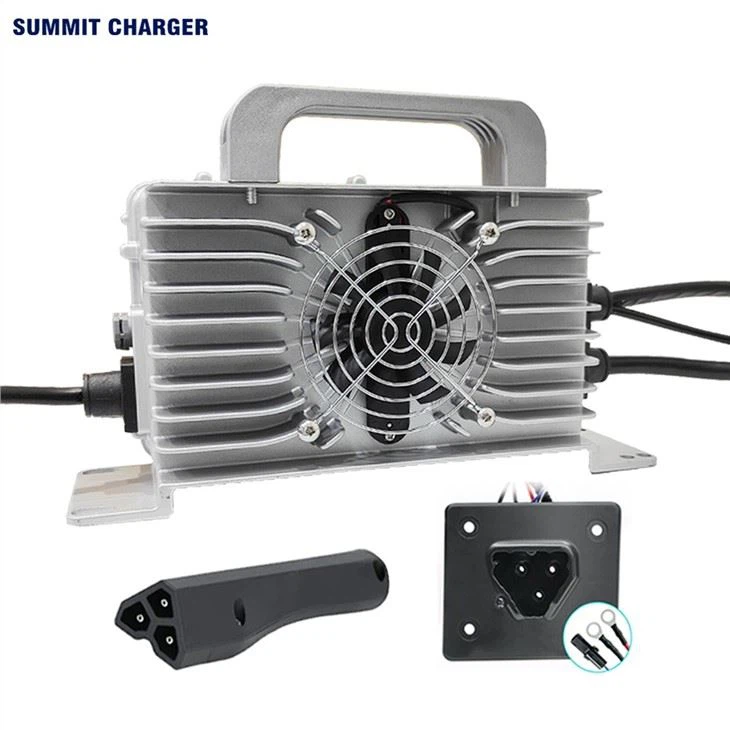

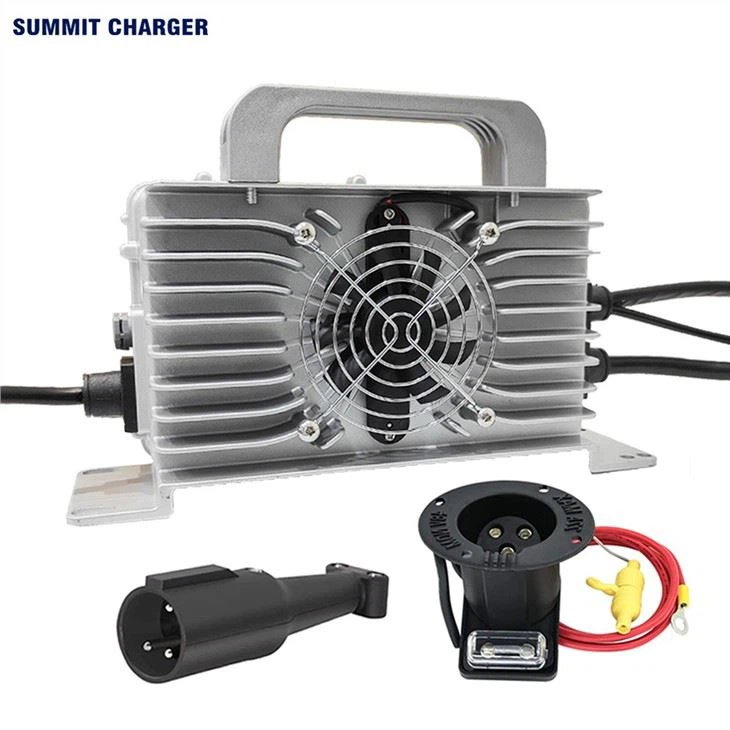

Club Car 3-pin Round Plug

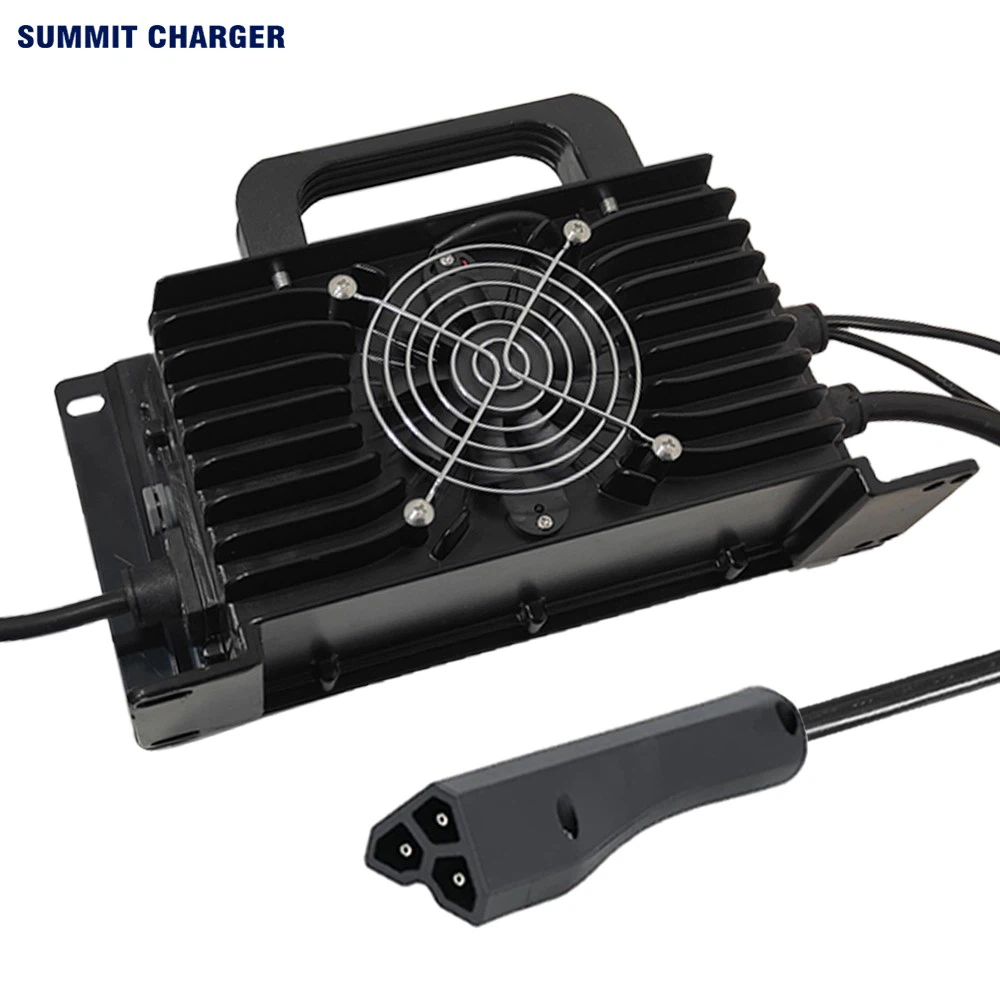

EZGO-RXV Plug

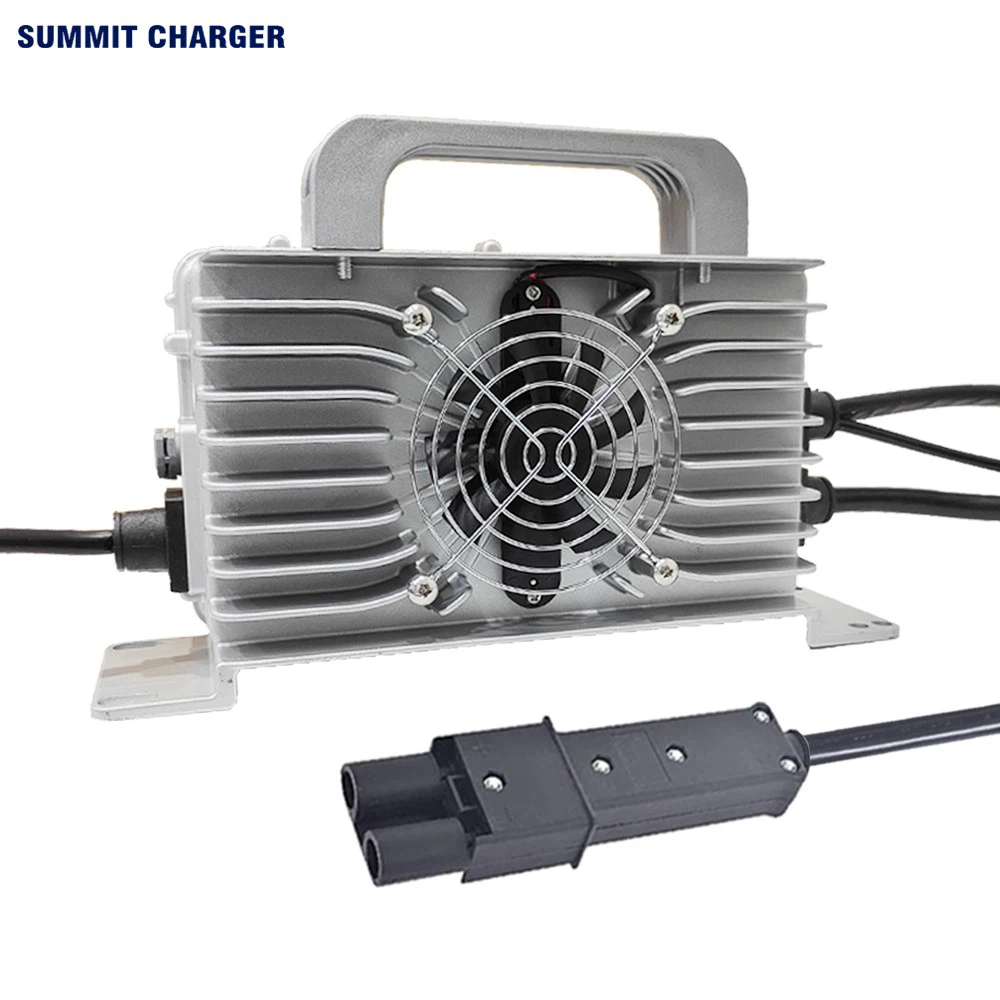

YAMAHA Plug

SMCZ1P series weigh 2.7kg net. We have used fully-sealed aluminium alloy materials, to achieve waterproof IP66/67, shockproof and dustproof.

SMCZ1P series's size is quite adorable: 28.1cm long*14.6cm wide*8.2cm high, which makes it possible to be both portable and on-board for your golf carts.

Of course, input plugs & output connectors are optional, we will match the plugs and connectors that you actually need.

Different plug, different extra cost, pls specify your requirements for us while ordering.
