View of 60v Golf Cart Charger

The 60v Golf Cart Charger is a frequency conversion pulse charger for charging ternary lithium battery and iron lithium battery. With small size, high IP rating, IP 67, this charger has high charging efficiency, ordinary 85%, with PFC efficiency can reach 99%. There are also soft-start pre-charging features that when the charger starts the set current will slowly rise to standard value to prevent battery from being damaged by large current impact. For over discharged batteries there are also pulse repair charging features which includes if the low voltage is 2.8v taking pulses to restart. This product offers many advantages for golf cart owners including quick charge time of 8 hours or less while maintaining durability and reliability. It`s perfect for any.

The 60v Golf Cart Charger is a great, small device that can be used for charging the ternary lithium battery and iron lithium battery. It has many advantages including being small in size with an IP rating of 66 and high efficiency with PFC. If you are looking for a charger that will work well with your batteries, this one is worth considering

Detailed paremeters

Models	Input Voltage Range	Rated Output Voltage	Max Output Voltage	Max Output Current
SMCZ1-1230A	AC180~264V	12V	16.5V	30A
SMCZ1-2430A/2430C	AC90~264V	24V	33V	30A
SMCZ1-3625A/3625C	AC90~264V	36V	49.5V	25A
SMCZ1-4825A/4820C	AC90~264V	48V	66V	25A
SMCZ1-6020A/6015C	AC90~264V	60V	82.2V	20A
SMCZ1-7218A/7215C	AC90~264V	72V	99V	18A
SMCZ1-8015A	AC180~264V	80V	110V	15A
SMCZ1-9610A	AC180~264V	96V	132V	10A
SMCZ1-10210A	AC180~264V	102V	140V	10A

Technical Paramenters

Item	Parameters
Ac Input Wide Voltage Range	AC90v-264v
AC Input Frequency Range	40-70HZ
With APFC Function,Power Factor	≥0.98
Soft Switching Technology,Efficiency	≥93%
Protection Level	IP67
Operating Temperature	-40℃~ +60℃
Storage Temperature	-55℃~ +100℃
CAN Communication	Optional
12v3a Auxiliary Power Supply	Optional
LED Light Indicator for Charging Process	Standard
Noise	≤45dB
Overall Size	282x146x82(mm)
Net Weight	2.7kg

About Summit

In 2012, Summit Power launched the first fully sealed charger.
In 2013, Summit Power was in cooperation with the Electrical Engineering College of Shandong University, the first "Lithium Battery Charging Technology Research Laboratory" was established .
In 2015, The annual output of chargers exceeded 100,000 units.
In 2017, Passed the IATF16949 Quality System Certification, and"CE"and"KC" certifications.
In 2018, The chargers were sold in batches to overseas customers such as the United States, South Korea, Thailand, etc.
In 2020, The annual output of chargers exceeded 400,000 units.
In 2021, Set up Southwest China Branch, and establish some overseas agent channels.

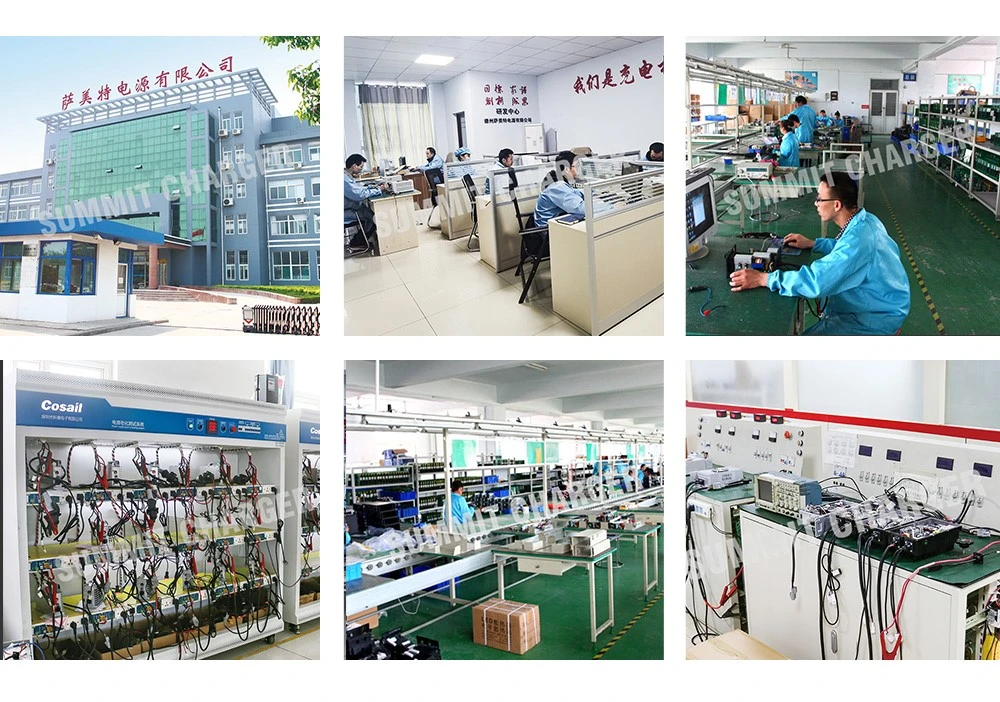

1.5kw_04
