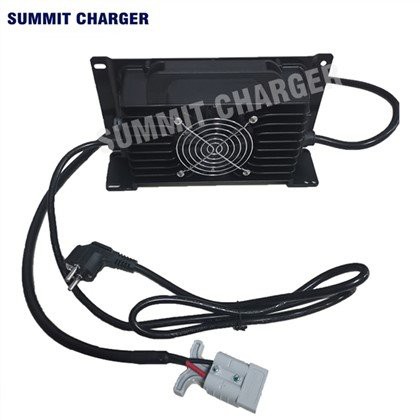

Name: Golf Cart Battery Charger
Brand: Summit Charger
SKU: 174878192

300k

Golf is a competitive sport centered on athlete's individual competitive ability. In sports, the placement of various obstacles, golf course terrain, weather conditions, fairways and green turf all affect the rolling speed of the golf ball and the skill of the golfer. The golf course is a man-made natural environment filled with green grass, oxygen and sunlight. Golf carts are an essential tool for golf courses. Well-known golf cart brands such as YAMAHA, EZGO, and Club car are all good choices. The right charger is very important when it comes to choosing a golf cart. Summit Power is a professional golf cart battery charger manufacturer, I would like to introduce this golf cart charger to you in details.

The electric golf cart was reportedly first used by JK Wadley in Texarkana, Arkansas, Texas, who saw a three-wheeled electric cart in Los Angeles transporting seniors to a grocery store. Later, he purchased a cart and found it would not work properly on the golf course. The first electric golf cart was custom built in 1932, but it didn't gain widespread acceptance. In the 1930s and 1950s, golf carts were most widely used by disabled people who couldn't go far. By the mid-1950s, golf carts had gained widespread acceptance among golfers, with multiple manufacturers producing a variety of models, most electric. Since then, golf has gradually become popular and has evolved into a very popular sport. Of course, for golf, the design and production of golf carts become very important. The appearance design of the golf cart and the choice of its battery and motor directly determine the speed, cruising range and grade of the golf cart. In addition, the golf cart battery is charged. The choice of the device is also more important. The most used golf carts are 48v and 36v battery packs and chargers. The chargers produced by summit power are fully sealed and waterproof IP67 chargers. Your golf cart can also be charged outdoors. , without any effect.

Summit Charger-3

Charger purchase skills

Determine battery voltage or output voltage

That is to determine the battery voltage V of the electric vehicle or the output voltage of the original charger. There are two methods, one is to judge the voltage of the original charger: the general battery voltage is 48V, and the corresponding original charger output voltage is about 59V; the 60V battery, the corresponding original output voltage is 73.5V. The second method is to look at the battery to determine the voltage: a general battery pack consists of several batteries. The model is 6-DZM-12/20, indicating that each battery is 12V. So, looking at how many batteries an electric car has, 4 batteries are 48V. For 8-DZM-12/20 batteries, each battery is 16V, and 4 batteries are 64V.

Determine battery capacity or output current

Determine the battery capacity AH of the electric vehicle battery, or the output current of the original charger. Take a look at the original charger to determine the capacity: if the output current of the original charger is 1.8A, the battery is 12AH. The second is to look at the battery voltage: generally, the batteries in the battery box have written models, such as 6-DZM-12, 12 means 12AH batteries, 6-DZM-20, 20 means 20AH batteries. The third is to judge according to the mileage of a charging run: Generally speaking, a 12AH charger is more suitable for a battery of about 1 year to run 25-40 kilometers at a time. 20AH is more suitable for running 45-60 kilometers.

Confirm the positive and negative poles of the charger

Make sure that the positive and negative electrodes are suitable for the shape of the electric vehicle charger interface. The most common interfaces on the market are T-type header, three-vertical header, middle-horizontal header, and round header. Some headers may have different positive and negative poles. You can use a multimeter to measure the electric vehicle battery charging interface, find the positive and negative poles, and the output of the purchased charger is the same as the charging socket. If the positive pole of the charger is reversed to the negative pole of the charger, it will damage the charger and the battery.

Judge the quality of the charger

A good electric vehicle charger adopts positive and negative pulse technology, which can effectively prevent, suppress and eliminate the vulcanization and polarization of the battery. It can keep the capacity of the new battery stable for a long time; restore the capacity of the old battery that has been polarized and whose capacity has decreased, effectively extending the battery life by 2 to 3 times. With intelligent timing protection function, automatic temperature compensation function, power grid instantaneous impact protection, super moisture-proof and anti-corrosion functions.

Technical Characteristics

Item	Technical Parameters
Ac Input Wide Voltage，Range	AC90V~264V
AC Input Frequency Range	40~70Hz
With APFC function，Power Factor	≥ 0.98
Soft Switching Technology，Efficiency	≥ 93.0%
Protection Level	IP67
Operating Temperature	- 40 ℃ ~ + 60 ℃
Storage Temperature	- 55 ℃ ~ + 100 ℃
CAN Communication Function	optional
12V3A Auxiliary Power Supply	optional
LED Light Indicator for Charging Process	Standard
Noise	≤45 db
Overall Size	282 ×146× 82 (mm)
Net Weight	2.7kg

When the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge.when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging.when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again.Automatically shut down after full charge.

Application

This golf cart charger can be used for all golf carts, generally speaking, the golf cart battery is 36v or 48v platform, and it is also suitable for any lead-acid battery, lithium battery, we will also match the corresponding golf cart charger connector.
