48v 200a Lifepo4 Charger
Send Inquiry
Product Details of48v 200a Lifepo4 Charger

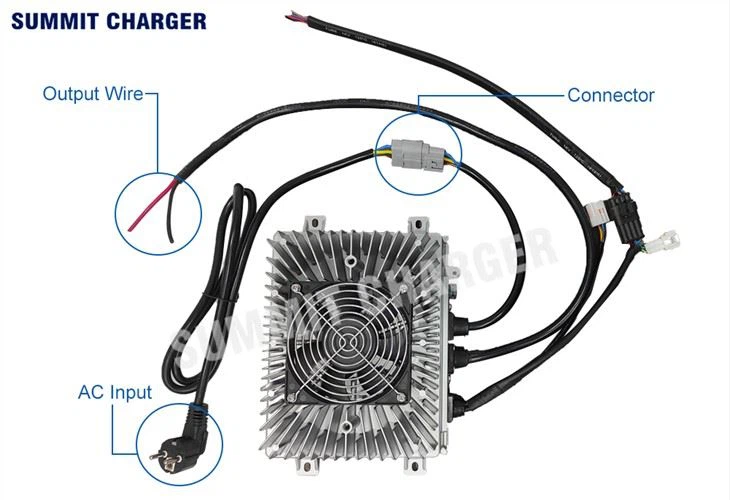

View of Charger
The high-power constant-current and constant-voltage charger has the remarkable features of intelligence, high efficiency, safety, high reliability and high stability. battery charging.This is a high-tech charger product with novel shape and advanced function.
Specifications of 48v 200a Lifepo4 Charger
| Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMHC3-4842A | AC90-264V | 48V | 66V | 42A |
| SMHC3-6040A | AC90-264V | 60V | 82.5V | 40A |
| SMHC3-7240A | AC90-264V | 72V | 99V | 40A |
| SMHC3-8440A | AC90-264V | 80V | 110V | 40A |
| SMHC3-9632A | AC90-264V | 96V | 132V | 32A |
| SMHC3-12025A | AC90-264V | 120V | 165V | 25A |
| SMHC3-14423A | AC180-264V | 144V | 198V | 23A |
| SMHC3-31210A | AC90-264V | 312V | 440V | 10A |
Protection Function of 48v 200a Lifepo4 Charger
| Prorection Function | |
| Overheat Protection | When the internal temperature of the charger exceeds 80℃,the charging current will reduce automatically.when it exceeds 85℃,the charger shutdown for protection.when the temperature drop the charger automatically resumes to charge. |
| Short Circuit Protection | When the output short circuit,the charger will automatically shutdown the output,after troubleshooting ,the battery can be reconnected to resume charging. |
Battery Reverse Connection Protection | When the battery is reverse connected ,the internal circuit of the charger will automatically disconnect from the battery ,without charging ,without dameging the charger. |
| Input low-voltage&over-voltgae protection | If the input voltage is lower than 150v or higher than 264v,the charger will shut down protectively and automatically resume working with the voltage is normal again. |
| Full automatic shutdown | Automatically shutdown after full charge. |

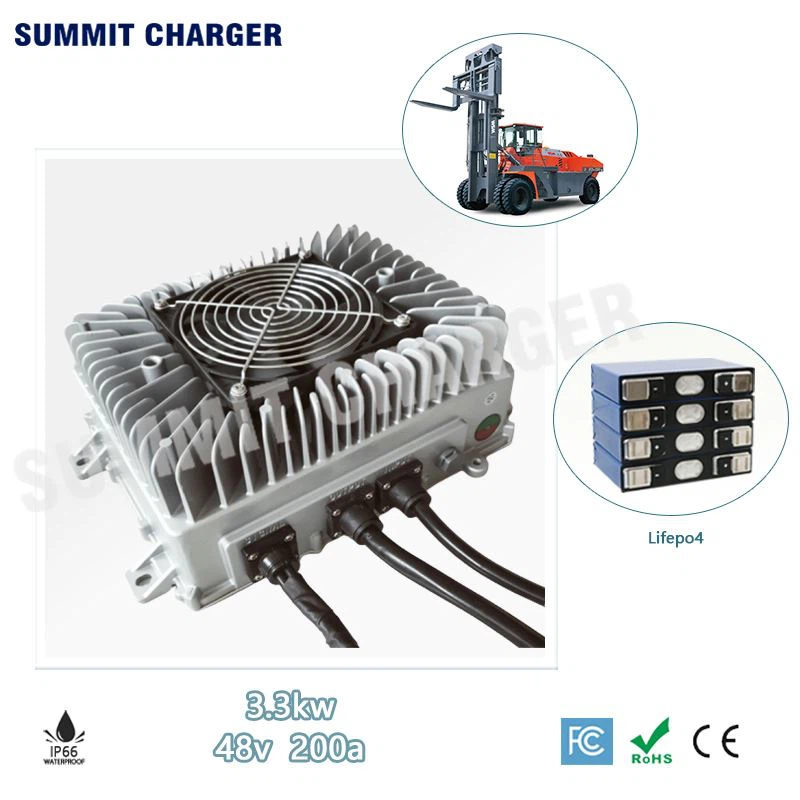

Application of 48v 200a Lifepo4 Charger
