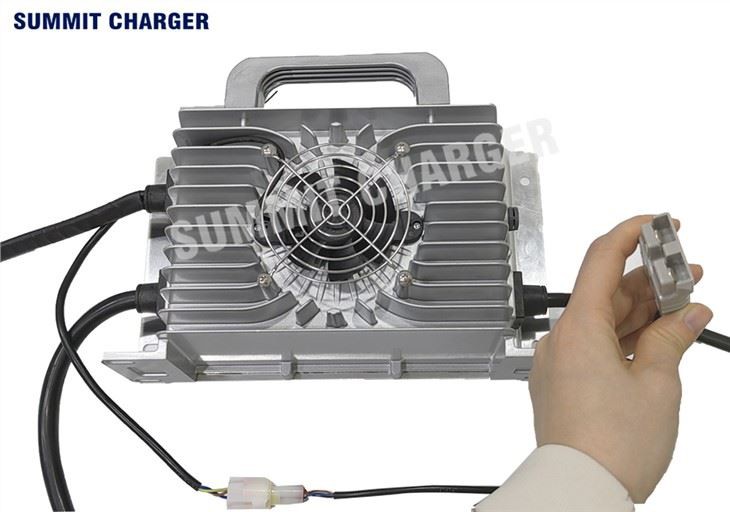

24v Forklift Battery Charger
Overview of Forklift Battery Charger
24v Forklift Battery Charger is specially designed for charging high capacity batteries used in forklifts and electrical machines.24v Forklift Battery Charger safely charge your battery thanks to its special software and minimizes battery water losses.Due to the microprocessor controlled, forklift battery chargers perform the charging process with the highest efficiency. As soon as the battery is connected, charging starts automatically, and when finished, it automatically turns off and completes the process.
When the battery charger is finished, the truck automatically switches to buffer charging and the batteries are always 100% charged.
Summit Charger Has the following Characteristics
1. Fully automatic, surge charging, flat charging, trickle charging (lead-acid battery), automatic shutdown (lithium battery) when fully charged, the charging process does not require manual intervention
2. High-precision current and voltage locking to ensure full charge and no overcharge
3. Overcurrent, overvoltage, short circuit protection, safe and reliable
4. High stability, the switching power supply control chip adopts imported military-grade integrated circuits, which are stable and reliable, with low failure rate, high reliability, and an average life span of more than 50,000 hours
5. Using switching power supply circuit, using pulse width modulation technology, the conversion efficiency is 85%-98%, the power factor is greater than 0.9, high efficiency and environmental protection
6. Indicator light display, all-aluminum shell, beautiful and durable; low ripple coefficient, little interference to other equipment
7. European CE, Japanese PSE, ROHs certification, safety certification, export quality
8. Patented technology, quality assurance, one-year warranty, user worry-free
9. Small size, light weight, reasonable structure and heat dissipation design, improve the portability of the charger10. Can be used as switching power supply
Specification of 24v Forklift Battery Charger
Specifications &Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ2-1230A/1230C | AC90~264V | 12V | 20v | 30A |
SMCZ2-2445A/2440C | AC90~264V | 24V | 33V | 45A |
SMCZ2-3640A/3640C | AC90~264V | 36V | 49.5V | 40A |
SMCZ2-4835A/4825C | AC90~264V | 48V | 66V | 35A |
SMCZ2-6030A/6020C | AC90~264V | 60V | 82.5V | 30A |
SMCZ2-7225A/7218C | AC90~264V | 72V | 99V | 25A |
SMCZ2-8022A | AC180~264V | 80V | 110V | 22A |
SMCZ2-9610A/9610C | AC90~264V | 96V | 132V | 18A |
Technical Characteristics of 24v Forklift Battery Charger
Item | Parameters |
Ac Input Wide Voltage Range | AC90v-264v |
AC Input Frequency Range | 40-70HZ |
With APFC Function,Power Factor | ≥0.98 |
Soft Switching Technology,Efficiency | ≥93% |
Protection Level | IP67 |
Operating Temperature | -40℃~ +60℃ |
Storage Temperature | -55℃~ +100℃ |
CAN Communication | Optional |
12v3a Auxiliary Power Supply | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Overall Size | 282x168x90(mm) |
Net Weight | 3.8kg |
Protection Function of 24v Forklift Battery Charger
Overheat Protection | when the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge. |
Short Circuit Protection | when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging. |
Battery Reverse Connection Protection | when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger. |
low-voltage＆Over-voltage Protection | If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again. |
Full Automatic Shutdown | Automatically shut down after full charge. |
Output Over-current Protection | Stop the output when exceeds + 1% of the maximum output current |
C A N communication Protection | Automatically stop the output when CAN communication fails |
Application of 24v Forklift Battery Charger
Summit Charger Series
