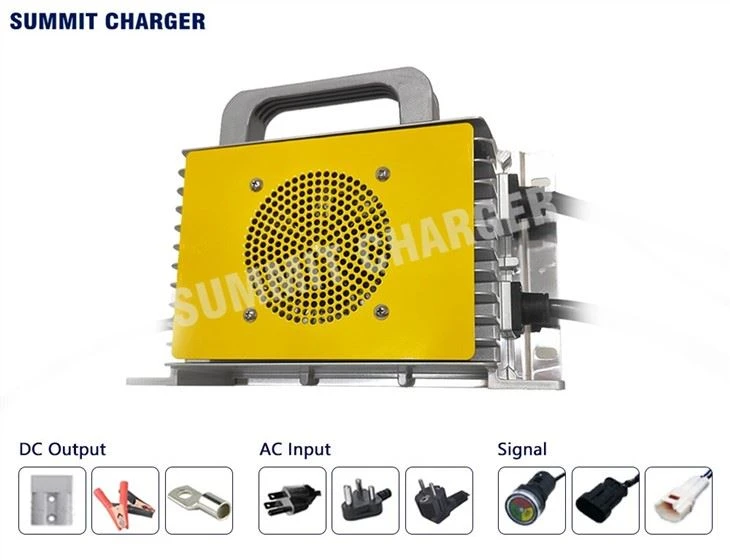

Onboard Charger For LiFePo4 Battery
✱Input：AC90-264V with USA/EU/ZA...Plug(Optional),
✱Output Voltage:DC24V/36V/48V/60V/72V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:L 282mm* W 168mm* H 96mm,
✱Net weight:3.8kg,
Send Inquiry
Product Details ofOnboard Charger For LiFePo4 Battery

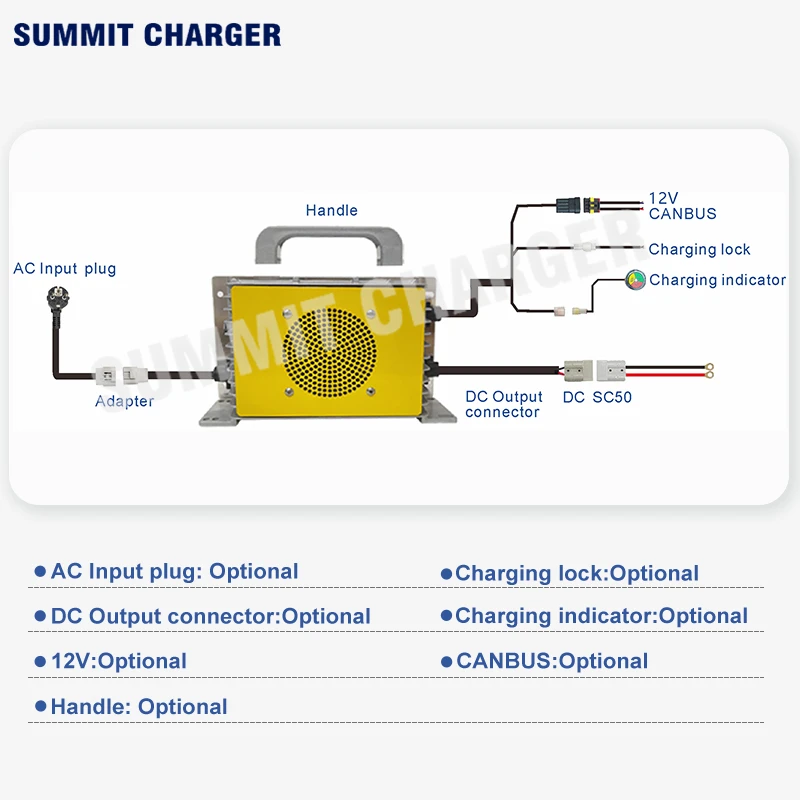

SMCZ2E Optional Wirings & Extended Functions
Summit Onboard charger for LiFePo4 battery are smart onboard chargers, which are designed to automatically control the charging process and charge LiFePo4 batteries with high accuracy, to prolong the service life of batteries. No need for manual intervention.
We're on a mission to make your LiFePo4 battery last for as long as possible. And our Onboard charger for LiFePo4 battery is the solution. Our intelligent battery charger system automatically monitors, charges, balances and manages your batteries so that you can be free of worries. With the smart OBC, you don't have to worry about forgetting to charge your batteries or charging them incorrectly. You can sleep easy knowing that your batteries are being charged without risks of any possible hidden danger.
Summit Charger is proud to carry a wide selection of optional plugs and connectors in the global area, so you can get the most enjoyment and utility out of our Onboard chargers for LiFePo4 battery.
Datasheet of SMCZ2E charger model
Model: | SMCZ2E 2kW / RE2000 fully sealed charger |
Ac Input Wide Voltage Range: | AC90V-264V |
Ac Input Frequency Range: | 40~70HZ |
With APFC function, Power Factor: | ≥0.98 |
Efficiency: | ≥93% |
IP Level: | 66/67 |
Working Temperature: | - 20 ℃ ~ + 85 ℃ |
Storage Temperature: | - 55 ℃ ~ + 100 ℃ |
CAN Communication: | Optional |
Auxiliary Power Supply 12V3A: | Optional |
LED Light Indicator: | YES |
Noise: | ≤45dB |
Overall Size: | L 282mm* W 168mm* H 96m |
Net Weight： | 3.8Kg |
| Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ2E-2435A | AC90-264V | 24V | 30V | 35A |
SMCZ2E-3635A | AC90-264V | 36V | 45V | 35A |
SMCZ2E-4835A | AC90-264V | 48V | 60V | 35A |
SMCZ2E-6030A | AC90-264V | 60V | 75V | 30A |
SMCZ2E-7225A | AC90-264V | 72V | 90V | 25A |
Summit Charger Series
