Name: China Summit Charger 12v 24v 36v Suppliers, Manufacturers - Factory Direct Wholesale - Summit Power
Brand: Summit Charger
SKU: 226426133

Summit Power Co., Ltd is a professional charger manufacturer for lead acid battery and lithium battery,we have independent R & D teams and latest production lines.

We provide battery charger design, application, charging system solutions and perfect after-sales service. Our charger series adopts "combination pulse rapid charging and discharging technology", which can significantly improve the charging efficiency and quality, greatly shorten the charging time, effectively extend the battery life, innovate the charging state of electric vehicles, and achieve "high efficiency, environmental protection and energy saving".

Lets explore the 800w 1400w 1500w charger models.

20K

Finished Projects

5000+

professional staff

15K

happy clients

200+

qin awards & certifacates

Charger models Specification and differences

products

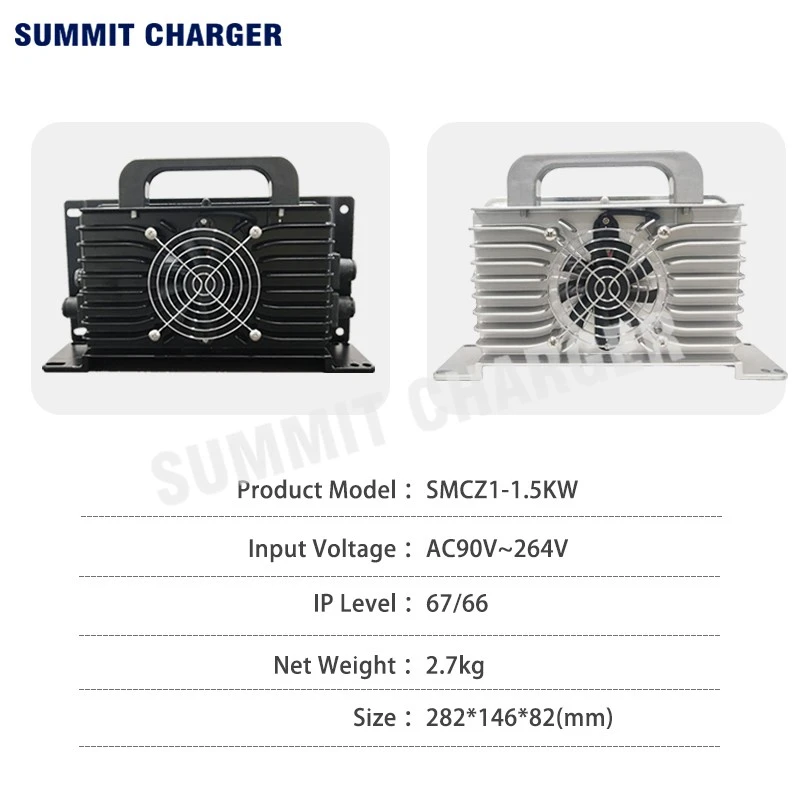

Model number	SMCZ7-800W	SMCZ6-1.4KW	SMCZ1P-1.5KW
net weight	2.0kg	2.5kg	2.7kg
Size	190x145x74.5mm	282x130x82mm	282x146x82mm
AC Input Voltage	AC90-264V	AC90-264V	AC90-264V
dC Output Voltage	24v/36/48v/60v/72v	48v/60v/72v	12v/24v/36/48v/60v/72v/80v/96v
DC Charging Current	15a/15a/15a/12a/10a	20a/15a/15a	30a/30a/25a/25a/18a/15a/12a

Chargers protections

1.Output over voltage protection

When The Internal Temperature of the Charger Exceeds 80℃,the Charging Current Will Reduce Automatically.When it Exceeds 85℃,the Charger Shutdown for Protection.When the Temperature Drop,the Charger Automatically Resumes to Charge.

2.Output short circuit protection

When the Output Short Circuit,the Charger Will Automatically Shutdown the Output.After Troubles Shooting,the Battery Can be Reconnected to Resume Charging.

3.Over temperature protection of charger

When the Battery is Reverse Connected,the Internal Circuit of the Charger Will Automatically Disconnect From the Battery,Without Charging,Without Damaging the Charger

4.Low-voltage Over-voltage protection

If the Input Voltage is Lower Than 90V or Higher Than 264V,the Charger Will Shutdown Protectively and Automatically Resume Working with the Voltage is Normal Again.

5.Output reverse protection

When the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.

6.Output over-current protection

Stop the output when exceeds + 1% of the maximum output current

Charger details display

High quality battery charger

Enhanced heat dissipantion function

Waterproof high-quality sealed charger

how to choose input-plug&output connectors

multiple choices

multiple input plugs

multiple output connectors

other signal connectors

FAQ

01.Can you do OEM and ODM?

Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.

02.Can we use our own logo?

Yes, we can print your private logo according to your request.

03.Can you do our own packaging?

Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

04.Which payment form you can accept?

T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
