48v 25a Golf Cart Charger
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x146x82cm,
✱Net weight:2.7kg(5.9lb),
Send Inquiry
Product Details of48v 25a Golf Cart Charger

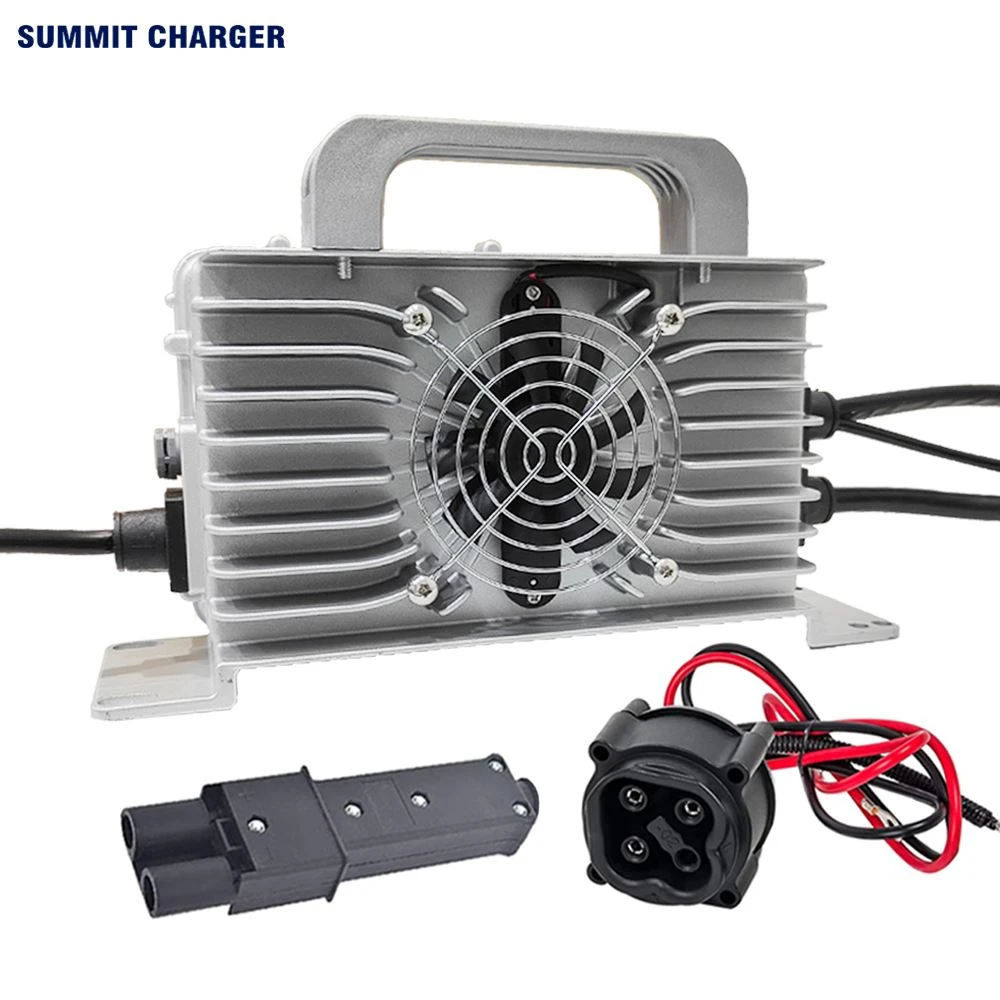

View of 48v 25a golf cart charger
Golf is an obsession for many. On the golf course, every person, every action, every grass, every air molecule is very pleasing to the eye. In this sports field, every move needs to be perfect, including driving the golf cart.
Golf carts will enforce different driving rules due to different seasons and golf course conditions. The two most common are:
1. Golf carts are only allowed in the driveway. This rule applies to courses with wet and soft surfaces to avoid damage to fairway turf due to cart tires rolling.
2. The 90-degree rule. The rule requires golf carts to drive primarily within the fairway and, after reaching a level flush with the ball drop, can make a 90-degree turn and hit the ball directly across the fairway. After the player hits the ball, drive the cart back to the fairway and continue driving. Implementing the 90-degree rule allows players to tee off with minimal damage to the fairway grass.
Generally speaking, 2-seat, 4-seat, and 6-seat golf carts are the most common models. For golf cart drivers, it is very important to match his battery pack with a suitable battery charger. Let's take a look at the 48v golf cart charger. This fully sealed golf cart charger is developed, designed and produced by summit power. It is very convenient and lightweight, and can be used anywhere. It is also feasible if you need to charge it on a charging pile.
Specifications of 48v 25a golf cart charger
| Spec | Input voltage range | Rated output voltage | Max output voltage | Max output current |
| SMCZ1-1230A | AC180-264V | 12V | 16.5V | 30A |
| SMCZ1-2430A/2430C | AC90-264V | 24V | 33V | 30A |
| SMCZ1-3625A/3625C | AC90-264V | 36V | 49.5V | 25A |
| SMCZ1-4825A/4820C | AC90-264V | 48V | 66V | 25A |
| SMCZ1-6020A/6015C | AC90-264V | 60V | 82.5V | 20A |
| SMCZ1-7218A/7215C | AC90-264V | 72V | 99V | 18A |
| SMCZ1-8015A | AC180-264V | 80V | 110V | 15A |
| SMCZ1-9610A | AC180-264V | 96V | 132V | 10A |
| SMCZ1-10210A | AC180-264V | 102V | 140V | 10A |
Technical Characteristics
| Item | Parameters |
| AC input wide voltage range | AC90-264V |
| AC input frequency range | 40-70Hz |
| Qith APFC function power factor | ≥98% |
| Soft switching technology efficiency | ≥93% |
| Protection level | IP67 |
| Operating temperature | -40℃~+60℃ |
| Storage temperature | -55℃~+100℃ |
| CAN communication function | Optional |
| 12v3a auxility power supply | Optional |
| LED light indicator for charging process | Standard |
| Noise | ≤45dB |
| Overall size | 282x146x82mm |
| Net weight | 2.7kg |
Applications of 48v 25a golf cart charger
|
|
|
|
More models
