24v Battery Charger 220v
Overview of Summit Charger 24v Battery Charger
This bad boy is a 24v battery charger that can handle up to 220v. It's got over voltage protection, over current protection, and short circuit protection to make sure your batteries are always in good hands. Plus, it's got over temperature protection for the charger and the battery itself so you can be sure your equipment stays safe under any conditions. Whether you're looking to keep your tools charged while on the go or need a reliable backup charger for those unexpected emergencies, this is the perfect solution!
This 24v battery charger 220v is perfect for keeping your batteries charged and your devices powered. It features over voltage protection, over current protection, output short circuit protection, and reverse protection to keep your gear safe. Plus, the over temperature protection of both the charger and the battery keeps everything running smoothly even in extreme conditions. Keep your devices charged no matter what with this reliable charger!
Specifications 24v Battery Charger 220v
Specifications and models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ1-1230A | AC180-264V | 12V | 16.5V | 30A |
SMCZ1-2430A/2430C | AC90-264V | 24V | 33V | 30A |
SMCZ1-3625A/3625C | AC90-264V | 36V | 49.5V | 25A |
SMCZ1-4825A/4820C | AC90-264V | 48V | 66V | 25A |
SMCZ1-6020A/6015C | AC90-264V | 60V | 82.5V | 20A |
SMCZ1-7218A/7215C | AC90-264V | 72V | 99V | 18A |
SMCZ1-8015A | AC180-264V | 80V | 110V | 15A |
SMCZ1-9610A | AC180-264V | 96V | 132V | 10A |
SMCZ1-10210A | AC180-264V | 102V | 140V | 10A |
Technical Characteristics of 24v Battery Charger 220v
Item | Parameters |
AC Input Wide Voltage Range | AC90-264V |
AC Input Frequency Range | 40-70HZ |
With APFC Function Power Factor | ≥98% |
Soft Switching Technology Efficiency | ≥93% |
Protection Level | IP67 |
Operating Temperature | -40℃-+60℃ |
Storage Temperature | -55℃-+100℃ |
CAN Communication Function | Optional |
12V3A Auxiliary Power Supply | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Overall Size | 282x146x82mm |
Net Weight | 2.7kg |

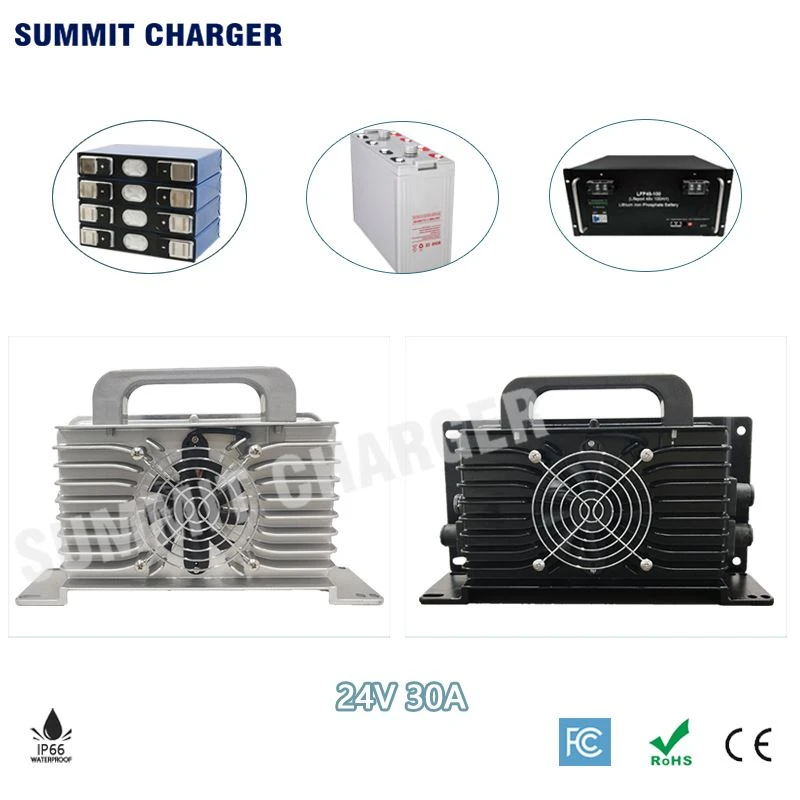

Application of 24v Battery Charger 220v
