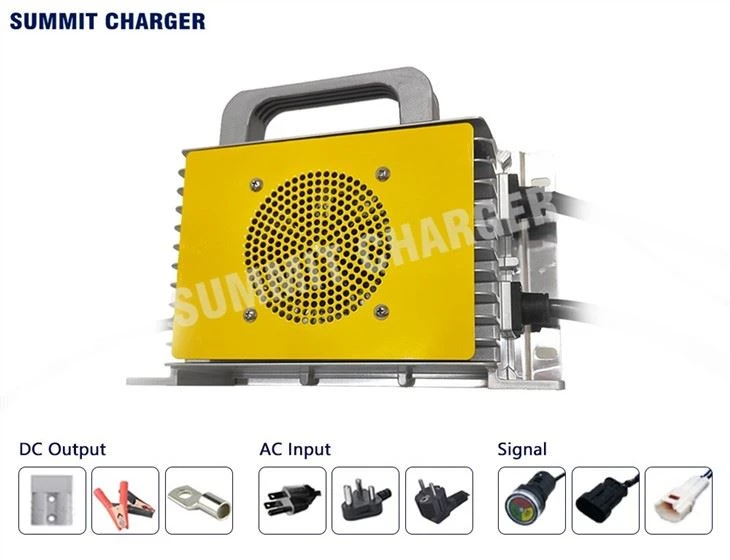

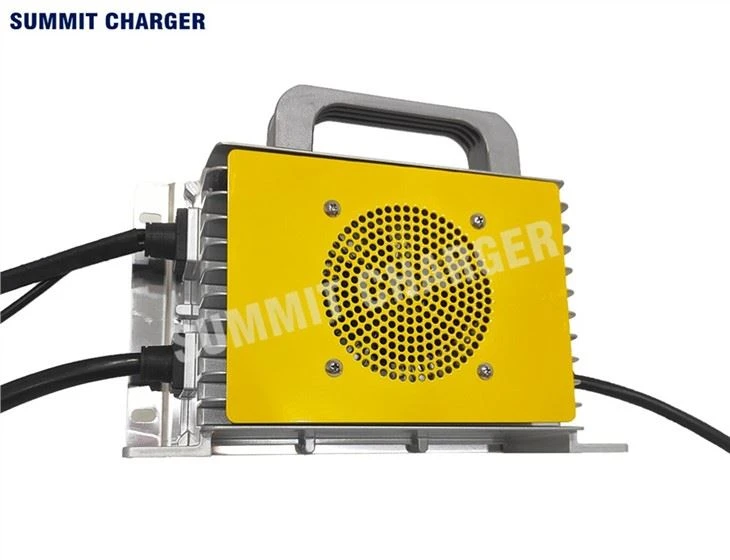

Onboard Boat Battery Charger
Waterproofing
It is believed that with the technological breakthrough of batteries, like electric vehicles, electric boats will become the mainstream mode in their respective transportation fields, which is inevitable in historical development.
That's mostly because electric boats will not cause any pollution to the environment during the sailing process.
Whether your electric boat uses lead-acid batteries or lithium batteries, our onboard boat battery chargers can perfectly match the corresponding charging curve and apply combination pulse rapid charging and discharging technology to provide solid support for your electric boat sailing.

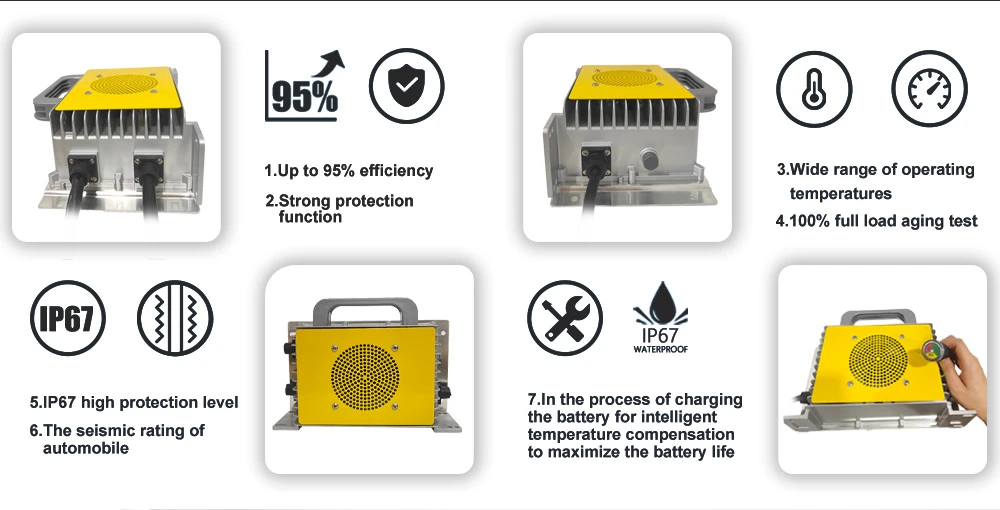

With waterproof IP67 and fully-sealed aluminium alloy materials, you will have no worries about any risks of water ingress and charger spoiling during your sailing.
Summit Onboard Boat Battery Charger SMCZ2E datasheet
Model: | SMCZ2E fully sealed charger |
Ac Input Wide Voltage Range： | AC90V-264V |
| Ac Input Frequency Range： | 40~70HZ |
With APFC function, Power Factor： | ≥0.98 |
Efficiency： | ≥93% |
| IP Level： | 67 |
Working Temperature： | -40 ℃ ~ + 60 ℃ |
Storage Temperature： | - 55 ℃ ~ + 100 ℃ |
CAN Communication： | Optional |
Auxiliary Power Supply 12V3A： | Optional |
LED Light Indicator： | YES |
Noise： | ≤45dB |
| Overall Size： | L 282mm* W 168mm* H 96mm |
| Net Weight： | 3.8kg |
Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ2E-2440A/2440C | AC90-264V | 24V | 30V | 35A |
SMCZ2E-4835A/4825C | AC90-264V | 48V | 60V | 35A/25A |
SMCZ2E-7225A/7218C | AC90-264V | 72V | 90V | 25A/18A |
Standard Charger Wirings
Summit Charger Series
