Boat Battery Charger
✱Input：AC90-264V with USA/EU/ZA...Plug(Optional),
✱Output Voltage:DC24V/36V/48V/60V/72V/84V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x168x90mm,
✱Net weight:3.8kg,
Send Inquiry
Product Details ofBoat Battery Charger
Products Description
An electric boat is a kind of electric vehicle, which is a boat that is propelled by electricity generated by batteries or marine generators to replace fuel to generate power, reduce the impact on the environment, and reduce energy consumption.
After an electric boat is purchased, if your spare charger does not have a very good safety application, it is likely to reduce the service life of the electric boat.
In order to better grasp the proper operation method of your charger and reasonably remove the safety risks, it is particularly important to purchase a high-quality charger.
Our SMCZ2 2kW charger is a waterproof IP67 onboard & off board charger that allows you to charge your boat battery no matter whether on the water or on the ground.
Because of this, it is especially suitable for marine use and can be used in all types of weather conditions.

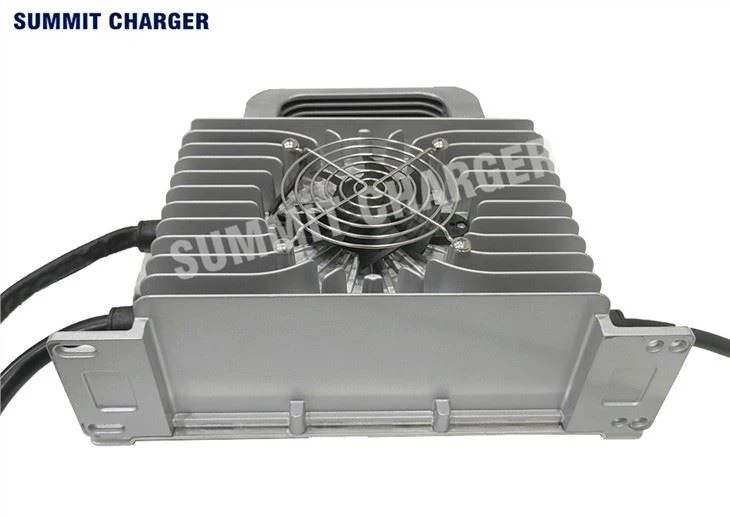

It has a built-in cooling fan and fully sealed Aluminum Alloy materials to prevent your boat battery from water short circuit and being over-charged.
With this, you can be very sure to always have enough power for your boat, no matter where you are.
Charger Specifications
| Models | SMCZ2 onboard charger |
| AC Input Wide Voltage Range： | AC90-264V |
| AC Input Frequency Range： | 40-70HZ |
| With APFC function, Power Factor： | ≥0.98 |
| Efficiency： | ≥93% |
| IP Level： | 66/67 |
| Working Temperature： | -20 ℃ ~ + 85 ℃ |
| Storage Temperature： | - 55 ℃ ~ + 100 ℃ |
| CAN Communication： | Optional |
| Auxiliary Power Supply 12V3A： | Optional |
| LED Light Indicator： | YES |
| Noise： | ≤45dB |
| Net Weight: | 3.8kg |
| Size: | 282*168*90mm |
| Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMCZ2-2440A/2440C | AC90-264V | 24V | 30V | 40A |
| SMCZ2-3640A/3630C | AC90-264V | 36V | 45V | 40A/30A |
| SMCZ2-4835A/4825C | AC90-264V | 48V | 60V | 35A/25A |
| SMCZ2-6030A/6020C | AC90-264V | 60V | 75V | 30A/20A |
| SMCZ2-7225A/7218C | AC90-264V | 72V | 90V | 25A/18A |
| SMCZ2-8022A | AC180-264V | 80V | 100V | 22A |
| SMCZ2-9618A/9610C | AC90-264V | 96V | 120V | 18A/10A |
Summit Charger Series
