Summit Charger 48v
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,

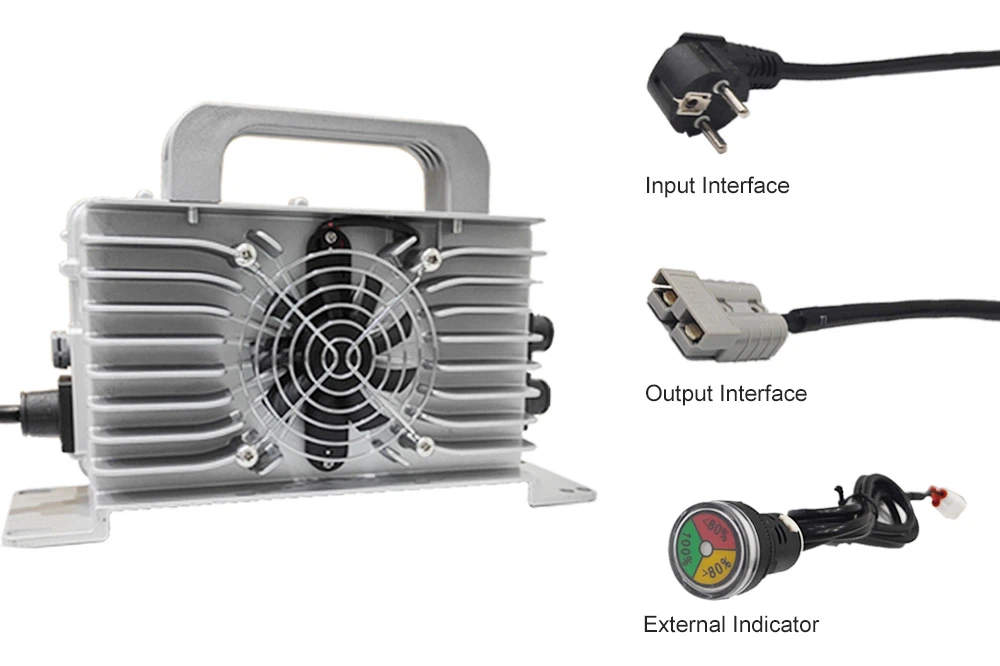

✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x146x82cm,
✱Net weight:2.7kg(5.9lb),
Send Inquiry
Product Details ofSummit Charger 48v
Overview of Summit Charger 48v
If you are looking for a portable, lightweight, high-efficiency charger, just our charger can replace your bulky charger, weighing only 5.9 pounds (2.7kg), very light, we are a research and development company A charger manufacturer that designs, produces and assembles, mainly producing 800W to 3300W fully sealed chargers. If you have any charger needs, please contact us directly. |
|
Different Charging Current of Summit Charger 48v
Specifications and models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
SMCZ7-4815A | AC90-264V | 48V | 66V | 15A |
SMCZ6-4820A | AC180-264V | 48V | 66V | 20A |
SMCZ1-4825A/4820C | AC90-264V | 48V | 66V | 25A |
SMCZ2-4835A/4825C | AC90-264V | 48V | 66V | 35A |
SMHC3-4842A | AC90-264V | 48V | 66V | 42A |
Technical Parameters
Item | Parameters |
AC Input Wide Voltage Range | AC90-264V |
AC Input Frequency Range | 40-70HZ |
With APFC Function Power Factor | ≥98% |
Soft Switching Technology Efficiency | ≥93% |
Protection Level | IP67 |
Operating Temperature | -40℃-+60℃ |
Storage Temperature | -55℃-+100℃ |
CAN Communication Function | Optional |
12V3A Auxiliary Power Supply | Optional |
LED Light Indicator for Charging Process | Standard |
Noise | ≤45dB |
Overall Size | 282x146x82mm |
Net Weight | 2.7kg |
Products Detalis
Products Features
Application of Summit Charger 48v
About Summit Charger
✱In 2012, Summit Power launched the first fully sealed charger.
✱In 2013, Summit Power was in cooperation with the Electrical Engineering College of Shandong University, the first "Lithium Battery Charging Technology Research Laboratory" was established .
✱In 2015, The annual output of chargers exceeded 100,000 units.
✱In 2017, Passed the IATF16949 Quality System Certification, and"CE"and"KC" certifications.
✱In 2018, The chargers were sold in batches to overseas customers such as the United States, South Korea, Thailand, etc.
✱In 2020, The annual output of chargers exceeded 400,000 units.
✱In 2021, Set up Southwest China Branch, and establish some overseas agent channels.
Warehouse & workshop
Summit Exhibitions
FAQ
1. Who are we? Summit Power CO.,Ltd.Located in Shandong, China, Engaged in Electric Vehicle Charger,since 2008.Much welcome to visit our factory.
2. How can we guarantee quality? Always a pre-production sample before mass production.Always final Inspection before shipment.
3.Do you support customized or samples?
We support customization and samples, it is better to confirm samples before mass shipment. 4. Why choose us?
More competitive price! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive.
