48v Li-ion Charger
video

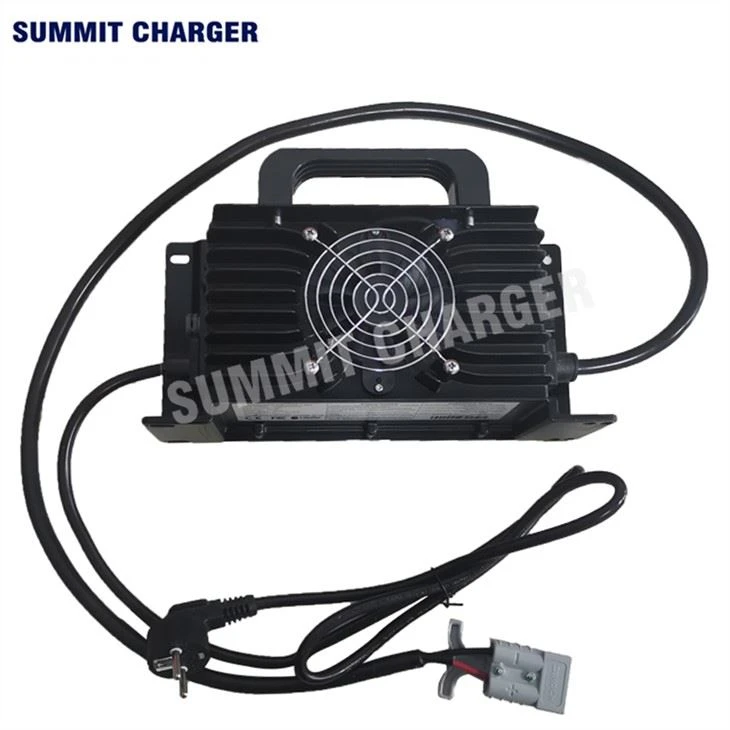

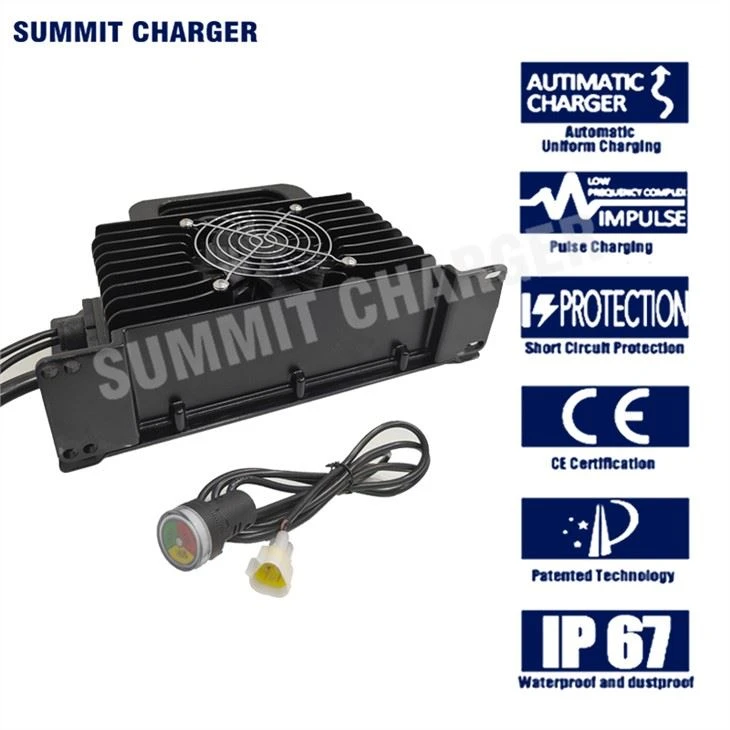

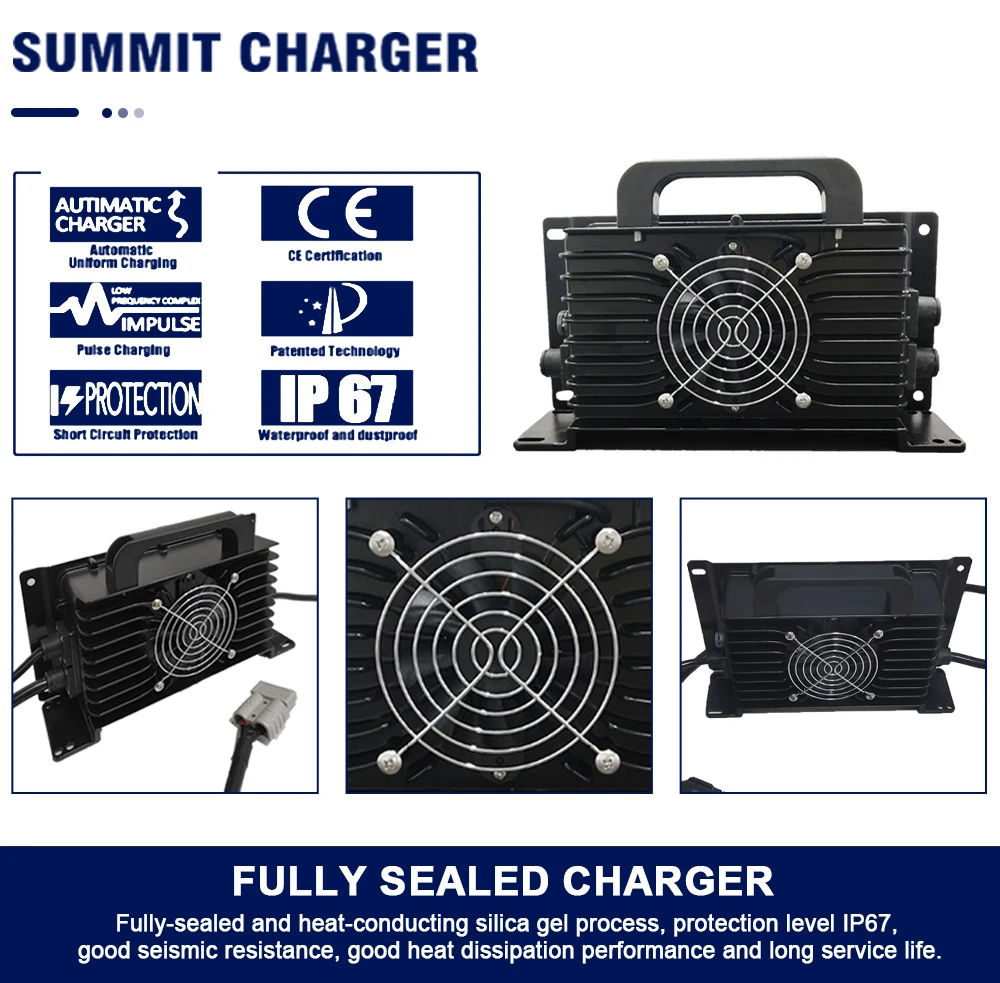

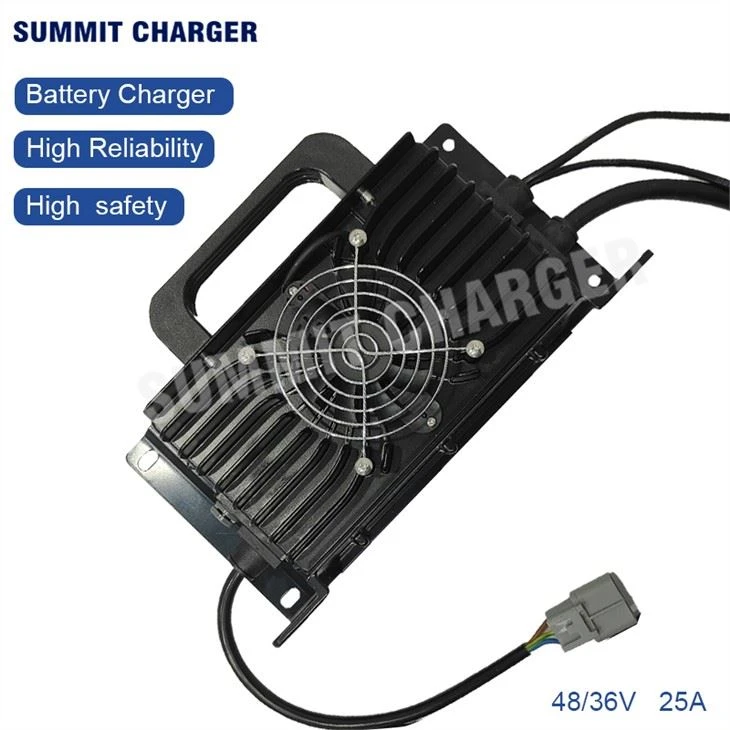

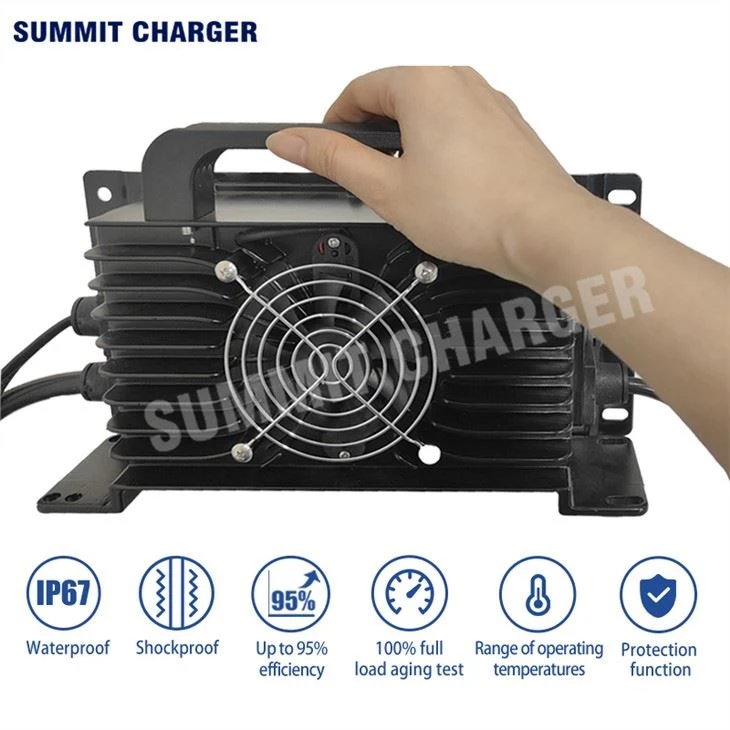

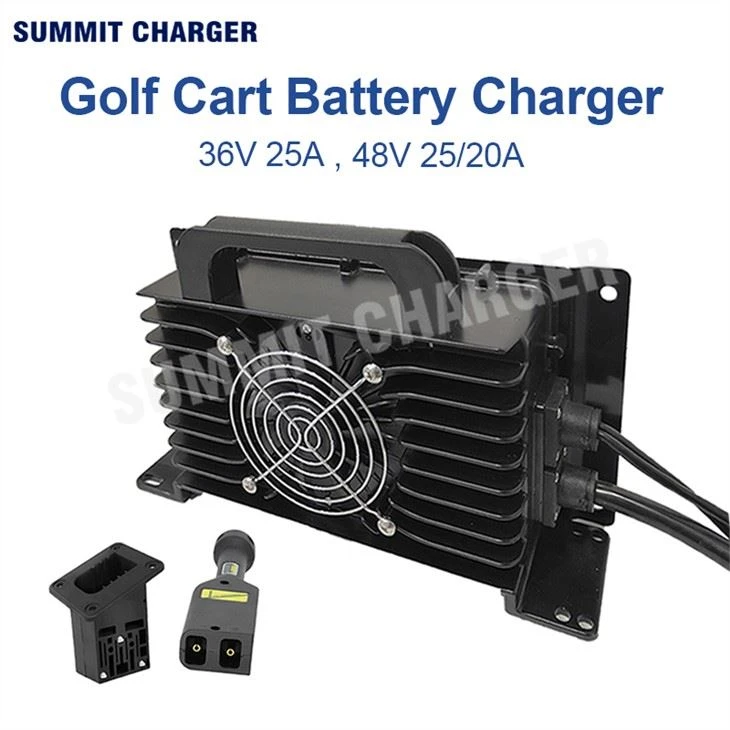

48v Li-ion Charger

48v Li-ion Charger

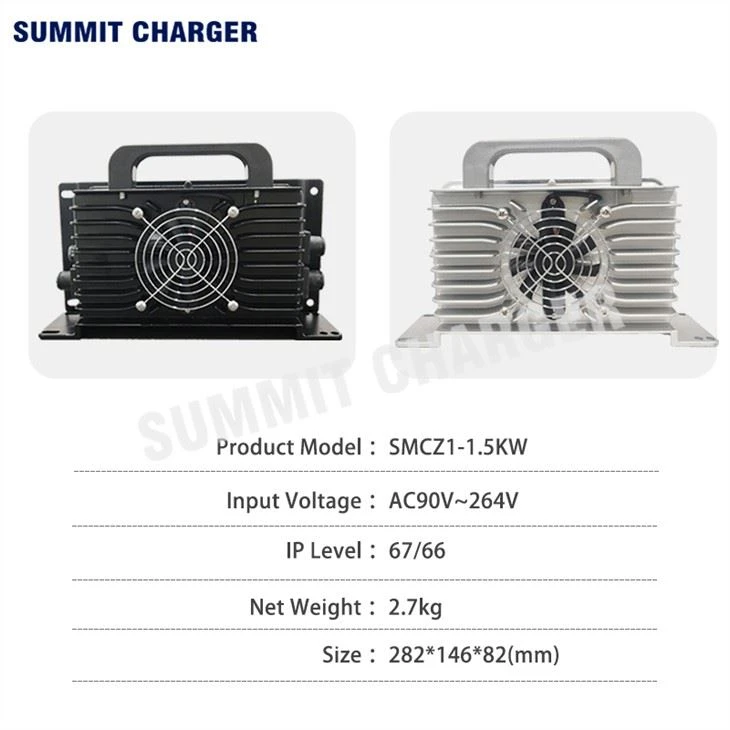

✱SMCZ1-1.5KW Fully Sealed Charger,
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x146x82cm,
✱Net weight:2.7kg(5.9lb),
Send Inquiry
Product Details of48v Li-ion Charger
  Overview of 48v Li-ion Chargers

  Constant current charging: No matter how the battery is under-voltage, it can be charged at the rated current limit and constant current, avoiding the phenomenon of over-current charging in the early stage of the under-voltage battery.

Constant voltage charging: After the battery is charged with constant current, the voltage rises to the set value, and it automatically switches to constant voltage charging. At this time, the capacity has been charged to about 80%, and the charging current gradually decreases. In the later stage of charging, constant voltage charging reduces the gas evolution and polarization of the battery, and improves the battery life.

Sufficient indication: continue charging with constant voltage and low current, when the battery capacity reaches more than 95%, the sufficient light is on, and the charging is stopped.

Equalizing charging: In order to avoid backward battery cells and insufficient charging of batteries and old batteries in cold areas, this machine has a special equalizing charging function. After the battery is sufficient, press the equalizing charge button to perform equalizing charging, and it will automatically stop charging after 2 hours. 10% of the battery capacity can be added, please charge it regularly or once a month according to the requirements of the battery manual.
In any state, as long as the working power of the charger is turned off, it can be turned off.

48v li-ion charger





  Products Specifications of 48v Li-ion Chargers



Specifications&models Input Voltage Range Rated Output Voltage Max Output Voltage Max Output Current
SMCZ1-1230A/1230C AC90-264V 12V 16.5V 30A
SMCZ1-2430A/2430C AC90-264V 24V 33.0V 30A
SMCZ1-3625A/3625C AC90-264V 36V 49.5V 25A
SMCZ1-4825A/4825C AC90-264V 48V 66.0V 25A
SMCZ1-6020A/6015C AC90-264V 60V 82.5V 20A
SMCZ1-7218A/7212C AC90-264V 72V 99.0V 18A
SMCZ1-8015A AC180-264V 80V 110V 15A
SMCZ1-9610A AC180-264V 96V 132V 10A
SMCZ1-10207A AC180-264V 102V 140V 7A





 Technical Parameters
Item Prameters
AC Input Wide Voltage Range AC90-264V
AC Input Frequency Range 40-70HZ
With APFC Function Power Factor 0.98
Soft Switching Technical Efficiency 93%
Protection Level IP67
Operating Temperature -40℃~+60℃
Storage Temperature -55℃~+100℃
CAN Communication Optional
12V3A Auxiliary Power Supply Optional
LED Light Indicator for Charging Process Standard
Noise <46dB
Overall Size 282x146x82mm
Net Weight 2.7kg



  About Summit Charger

  Summit charger factory is located on Dezhou ,Shandong  province,China,was founded 2008.

summit charger
Summit Factory&warehouse
summitcharger
Summit exhibitions

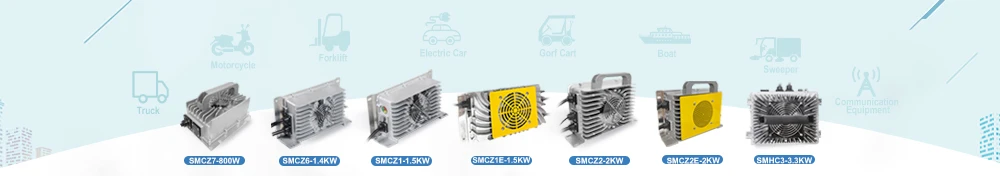

  More models
