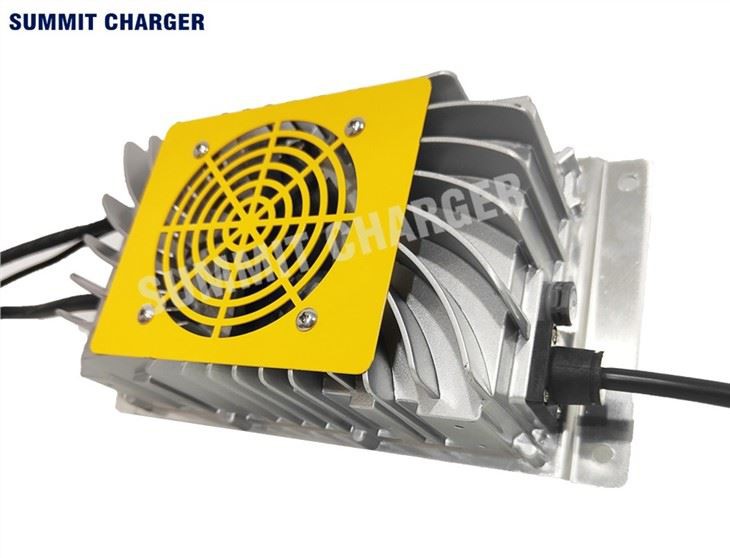

Smart Chargers For Low Speed Vehicles & Golf Carts
video
Smart Chargers For Low Speed Vehicles & Golf Carts

Smart Chargers For Low Speed Vehicles & Golf Carts

✱SMCZ7/SMCZ6/SMCZ1P/SMCZ1E fully sealed charger;
✱Input Voltage Range:AC90-264V;
✱Output Voltage:DC 36V/48V/72V;
✱Input/Output Plug(optional);
✱Charging Indicator(optional);
✱CAN BUS or not(optional);
Send Inquiry
Product Details ofSmart Chargers For Low Speed Vehicles & Golf Carts
Introduction of Summit Chargers for Low Speed Vehicles & Golf Carts
  • Overheat Protection

  • Short Circuit Protection

  • Battery Reverse ConnectionProtection

  • Input low-voltage & Over-voltageProtection

  • Fully charged Automatically Shutdown

  • Waterproof IP66/IP67

  • Onboard/Off-board

product-883-614

enlightenedWith over 15 years of experience in manufacturing smart chargers for Low Speed Vehicles and Golf Carts, understanding and adapting chargers to their owners' usage habits, we would like to be your strongest backing. It fills us with immense pride to have a selection of onboard/off-board chargers for your options, which will come with our supporting services and OEM services. It is well-known that a vehicle's battery can be severely drained and negatively impact its life if the battery is overcharged.

And with the increasing popularity of LSV and Golf Carts, the need to protect these batteries has become even more important. That's why we've developed these LSV/Golf Cart Charger series. They are waterproof and shockproof, with a wide range of plugs and connectors to ensure that you can charge your LSV battery or Golf Cart battery no matter what brand your vehicle is. Our battery chargers has been well-recognized by worldwide customers, and has been highly praised for their performance in extending the life of your battery and improving charging efficiency.

Charger Specifications

Models

SMCZ7/SMCZ6/SMCZ1P/SMCZ1E fully sealed charger
AC Input Wide Voltage Range: AC90-264V
AC Input Frequency Range: 40-70HZ
With APFC function, Power Factor: ≥0.98
Efficiency: ≥93%
IP Level: 66/67
Working Temperature: -20 ℃ ~ + 85℃
Storage Temperature: - 55 ℃ ~ + 100 ℃
CAN Communication: Optional
Auxiliary Power Supply 12V3A: Optional
LED Light Indicator: YES
Noise: ≤45dB
Models Input Voltage Range Rated Output Voltage Max Output Voltage Max Output Current
SMCZ7-3615A/3615C AC90-264V 36V 45V 15A
SMCZ7-4815A/4812C AC90-264V 48V 60V 15A/12A
SMCZ6-4820A AC220V±15% 48V 60V 20A
SMCZ6-7215A/7215C AC90-264V 72V 90V 15A
SMCZ1P-3625A/3625C AC90-264V 36V 45V 25A
SMCZ1P-4825A/4820C AC90-264V 48V 60V 25A/20A
SMCZ1P-7218A/7212C AC90-264V 72V 90V 18A/12A
SMCZ1E-3625A/3625C AC90-264V 36V 45V 25A
SMCZ1E-4825A/4820C AC90-264V 48V 60V 25A/20A
SMCZ1E-7218A/7212C AC90-264V 72V 90V 18A/12A



Optional Golf Cart Plugs



product-2151-543



Summit Charger Series

product-1000-176
