Multi-Protection 36V/48V 25A Onboard Charger
✱Input Voltage Range:AC90-264V,
✱Output Voltage:DC 12V/24V/36V/48V/60V/72V/96V,
✱Input/Output Plug(optional),
✱Charging Indicator(optional),
✱CAN BUS or not(optional),
✱Size:282x146x82mm,
✱Net weight:2.7kg(5.9lb),
Send Inquiry
Product Details ofMulti-Protection 36V/48V 25A Onboard Charger
Charger Description
A 36V 48V 25A Smart Battery Charger With Multiple Protection Functions
SMCZ1P-1.5kW Charger Series have multiple protection functions that allow you to keep your batteries safe and charged. In addition, it can have a built-in CANBus protocol that allows you to monitor the status of your charger.
If you are looking for a smart battery charger with multiple protection functions, then you may want to consider SMCZ1P-1.5kW from Summit Charger. This smart battery charger offers safety, a high voltage range and hardware-programmable current and voltage limits. SMCZ1P-1.5kW is fully compliant with the Smart Battery Charger Specification. Another safety feature is the thermistor safety-detection circuit, which detects the presence of the battery. If the thermistor signals that the battery is not present, the charge will terminate.
The charger can be configured to fit various machines and is designed to maximize your machine uptime, reduce the total cost of ownership and minimize premature battery failures.
Summit Charger Series High-Frequency Smart Battery Chargers
Summit Charger Series High-Frequency Smart Battery Chargers with multiple protection functions offer a range of features to address the needs of every customer.
One of the most exciting developments for Summit Charger Series battery chargers is their ability to be configured based on battery brand, battery type, and battery application.
As the market for battery chargers continues to evolve, Summit Charger recognizes the need to better define and more precisely regulate the battery charging industry. To this end, Summit Power technical team has issued a draft recently, proposing a more robust procedure for battery chargers.
CANBus communication protocol allows remote controlling and monitoring for the status of the charger
The CANBus is a communication protocol used for automotive applications. It is a medium-dependent interface. Using this CAN protocol, Summit Charger communicates with the main vehicle controller and provides the status of the battery pack. This information can also be used by other CAN devices.
Overcharge detection threshold
If you are looking for a way to charge a lithium ion battery in the best possible fashion, look no further. With a smart battery charger, you can get up and running in no time. Unlike their old school counterparts, these new breed units are designed to keep pace with the latest technology.
Smart battery chargers also allow you to power your system and the battery at the same time. This makes the whole charging experience a lot more enjoyable and less time consuming. The trick is to choose a unit that meets your needs. A good rule of thumb is to choose a device with an output rated to deliver stable amps.
You might also want to consider purchasing a battery charger with a temperature sensor. This will allow you to keep your battery in a safe temperature range. Batteries that are exposed to extreme heat are subject to a greater risk of exploding. Using a device that has a temperature control will keep your batteries at their optimal performance levels.
It's also a good idea to choose a smart battery charger that offers a good warranty. Battery recharging isn't a cheap proposition, so you may as well invest in something that will last the test of time.
- Output Over Voltage Protection
- Output Over Current Protection
- Output Short-circuit Protection
- Output Reverse Connection Protection
- Charger over temperature protection
- Battery over temperature protection
- Fully charged automatically shutdown
- Fully-sealed Aluminum Alloy Material
- IP66/67 Waterproof And Dustproof Level
- Wide Range Of Operating Temperatures
- Fast Charging With High Safety & High Efficiency
Charger parameters
Silver
Black
Model |
SMCZ1P-1.5kW fully sealed charger |
| AC Input Wide Voltage Range： | AC90-264V |
| AC Input Frequency Range： | 40-70HZ |
| With APFC function, Power Factor： | ≥0.98 |
| Efficiency： | ≥93% |
| IP Level： | 66/67 |
| Working Temperature： | -40 ℃ ~ + 60 ℃ |
| Storage Temperature： | - 55 ℃ ~ + 100 ℃ |
| CAN Communication： | Optional CAN 2.0B |
| Auxiliary Power Supply ： | Optional 12V3A |
| LED Light Indicator： | YES |
| Noise： | ≤45dB |
|
Overall Size: |
281x146x82mm |
|
Net Weight: |
2.7kg |
| Models | Input Voltage Range | Rated Output Voltage | Max Output Voltage | Max Output Current |
| SMCZ1P-1230A/1225C | AC90-264V | 12V | 15V | 30A/25A |
| SMCZ1P-2430A/2430C | AC90-264V | 24V | 30V | 30A |
| SMCZ1P-3625A/3625C | AC90-264V | 36V | 45V | 25A |
| SMCZ1P-4825A/4820C | AC90-264V | 48V | 60V | 25A/20A |
| SMCZ1P-6020A/6015C | AC90-264V | 60V | 75V | 20A/15A |
| SMCZ1P-7218A/7215C | AC90-264V | 72V | 90V | 18A/12A |
| SMCZ1P-8015A | AC180-264V | 80V | 100V | 15A |
| SMCZ1P-9610A | AC180-264V | 96V | 120V | 10A |
| SMCZ1P-10210A | AC180-264V | 102V | 127V | 10A |

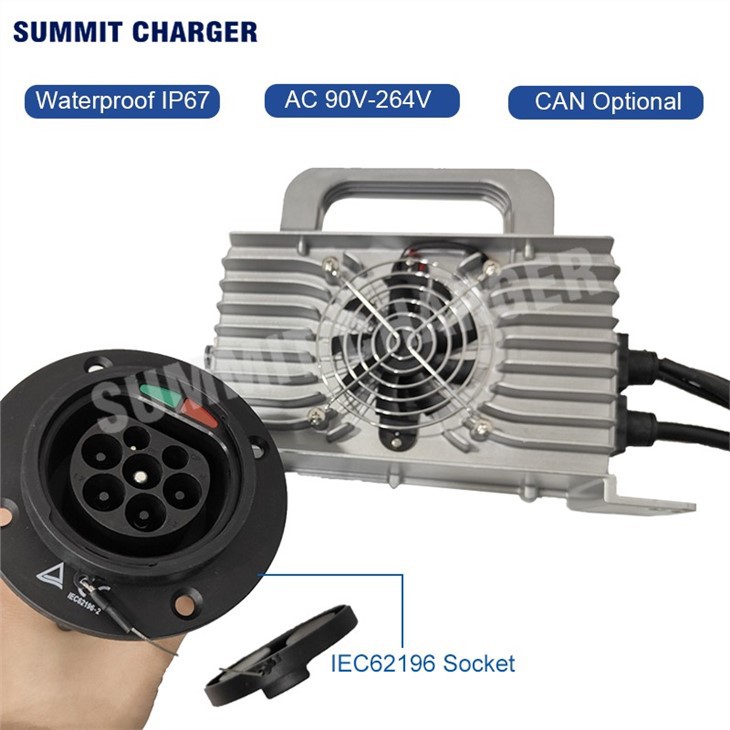

Charger Picture
About Summit Charger
Our Factory
Exhibition moments
Summit Charger Series
